Yijia Industrial Electrical Co., Ltd. manufactures the Square Push Button Switch Single Pole Double Throw, a 16mm panel mount switching component developed for industrial automation systems, electrical cabinets and machine control interfaces. Combining SPDT contact flexibility, silver alloy contacts and durable mechanical construction, this push button switch provides reliable manual signal control for equipment manufacturers requiring compact installation and stable operation.
Industrial control equipment increasingly requires smaller operator interfaces while maintaining reliable switching performance. The Square Push Button Switch Single Pole Double Throw is designed for applications where panel space, circuit flexibility and long-term operating stability are important factors.
Unlike standard ON/OFF push button switches, the SPDT configuration allows one common terminal to switch between two output circuits. This structure gives engineers more options when designing machine controls, signal feedback systems and manual operation interfaces.
The 16mm mounting design enables integration into compact control panels, PLC cabinets, testing equipment and specialized machinery where installation space is limited.
For industrial equipment builders, a switching component must meet more than basic electrical requirements. Consistent production quality, stable supply capability and customization flexibility are equally important during supplier evaluation.
Yijia Industrial Electrical Co., Ltd. focuses on manufacturing industrial switching components for automation manufacturers, electrical system suppliers and machinery builders. Production control covers housing accuracy, contact assembly, electrical inspection and final performance verification.
Key advantages include:
These features allow customers to integrate the switch into different equipment designs without major structural modifications.
| Parameter | Specification |
|---|---|
| Product Type | Square Push Button Switch Single Pole Double Throw |
| Switch Type | SPDT (Single Pole Double Throw) |
| Mounting Size | 16mm |
| Contact Configuration | 1NO1NC / 2NO2NC |
| Contact Material | Silver Alloy |
| Rated Current | Up to 15A |
| Mechanical Life | Up to 500,000 cycles |
| Electrical Life | Up to 100,000 cycles |
| Contact Resistance | ≤50mΩ |
| Protection Rating | IP54 |
| Operation Mode | Momentary / Latching |
| LED Options | Red, Green, Yellow, Blue, White |
| LED Lifetime | Up to 50,000 hours |
The SPDT structure is one of the main reasons this type of push button switch is widely used in industrial control applications.
A single common terminal can connect with either of two output terminals, allowing one button operation to control different circuit states.
Typical examples include:
Compared with basic single-contact switches, SPDT designs help engineers achieve more flexible circuit layouts without adding additional switching components.
Contact material directly affects electrical stability and service life.
During repeated operation, contacts experience mechanical impact, current transmission and possible electrical arcing. Poor contact materials may lead to increased resistance and unstable switching behavior.
The Yijia Square Push Button Switch Single Pole Double Throw uses silver alloy contacts to maintain reliable conductivity during repeated switching cycles.
With contact resistance controlled at ≤50mΩ, the switch supports consistent electrical performance in industrial equipment requiring frequent operation.
Modern automation equipment integrates more functions into smaller control areas. Panel designers often need components that provide reliable operation without occupying unnecessary space.
The 16mm mounting structure allows multiple switches to be installed efficiently in compact operator panels.
For equipment upgrades or replacement projects, the compact mounting design can also reduce modification requirements.
Industrial switches are frequently exposed to repeated operator actions, vibration and continuous production cycles.
The Yijia push button switch is developed for applications requiring dependable mechanical operation. Under suitable testing conditions, the switch achieves:
Durability depends on operating environment, electrical load and application conditions. Proper specification matching helps maximize service life and reduce maintenance frequency.
Yijia maintains controlled production procedures to ensure consistency in industrial switching components.

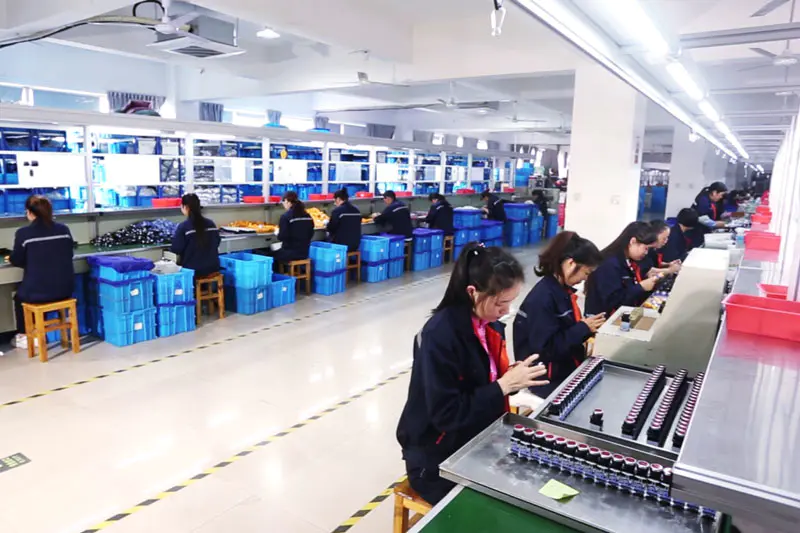

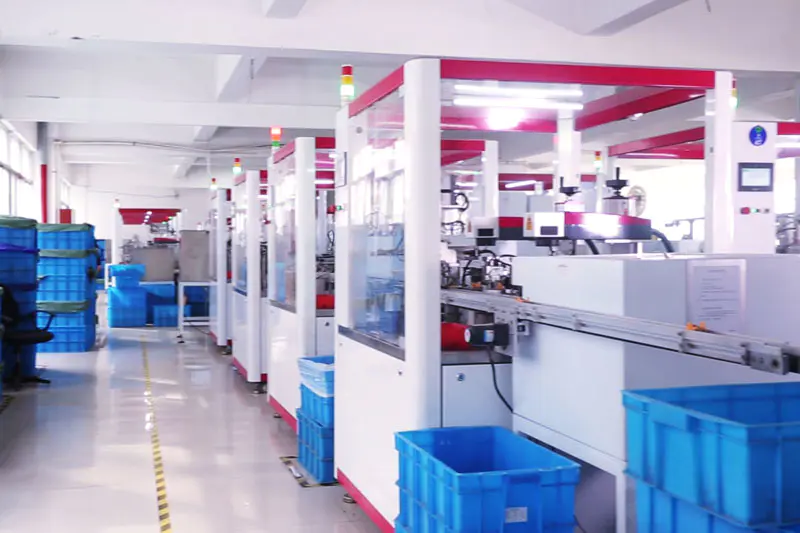

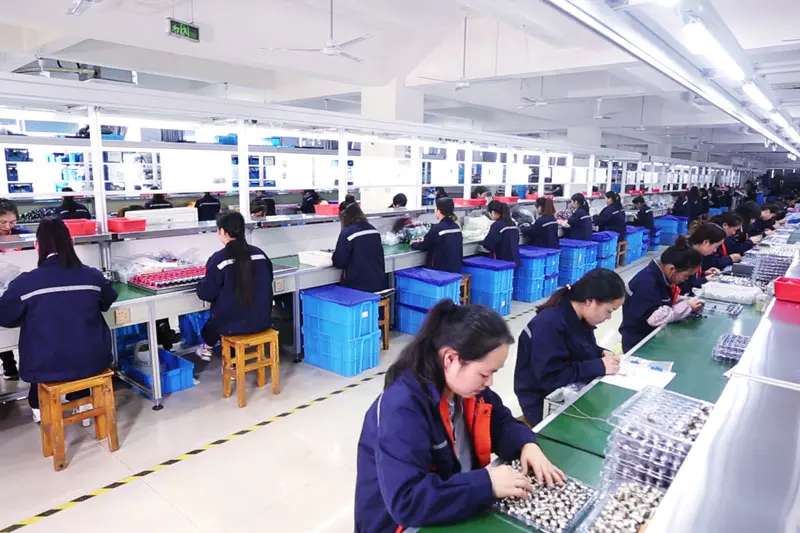

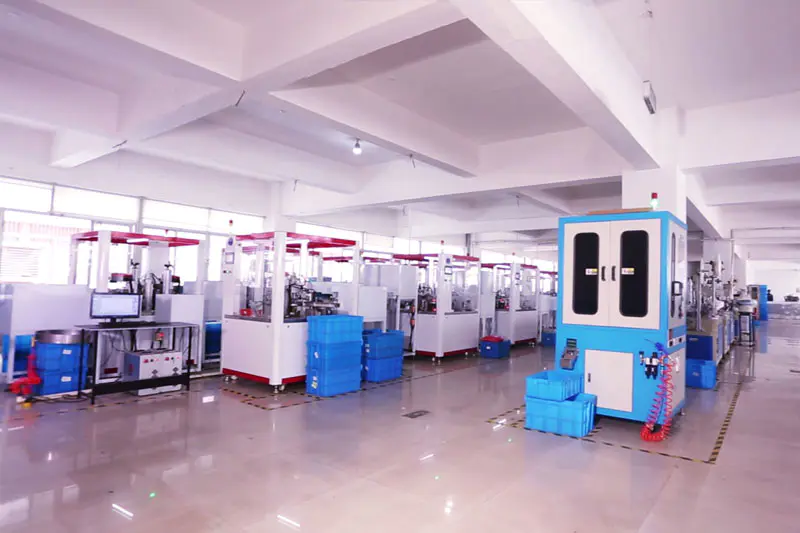

The manufacturing process includes housing production, contact assembly, component inspection and final performance verification.
Precision housing production ensures correct component positioning, stable button movement and reliable panel installation.
Key control points include:
Contact alignment directly affects switching reliability. Yijia controls contact positioning, terminal assembly and electrical connection consistency to maintain stable switching performance.
Before shipment, products undergo inspection covering mechanical operation, electrical performance and appearance quality.
Yijia follows ISO9001 quality management practices and provides products such as Square Push Button Switch Single Pole Double Throw supported by CE, RoHS and CCC certifications for international industrial applications.
Automation systems require reliable manual interfaces for operation commands, machine adjustment and maintenance procedures.
The Yijia SPDT push button switch is commonly integrated into:
Compact switching components help cabinet manufacturers optimize internal layouts.
The available 1NO1NC and 2NO2NC configurations allow engineers to match different circuit requirements.
Machine builders often require customized control components for different equipment structures.
Yijia supports applications including:
The switch can also support control interfaces used in:
Before selecting a model, engineers should evaluate electrical requirements, mounting conditions and operating environments.
Suitable for applications requiring one normally open and one normally closed contact.
Suitable for systems requiring additional switching paths and more flexible circuit integration.
Different equipment manufacturers often require different switch specifications. Yijia provides customization support according to electrical, mechanical and application requirements.
Available LED colors include:
When selecting an industrial switch supplier, buyers usually consider product consistency, manufacturing capability, customization flexibility, quality documentation and long-term supply stability.
Yijia provides industrial switching components for automation companies, electrical manufacturers and equipment builders through controlled production processes and engineering support.
It is a push button switch using one common terminal with two selectable output paths. The SPDT design allows one operator action to control different circuit states.
In some applications, yes. An SPDT switch provides additional contact flexibility, allowing engineers to use either normally open or normally closed circuits depending on system requirements.
A 16mm push button switch provides reliable manual control functionality while reducing panel installation space, making it suitable for compact industrial equipment.
Silver alloy contacts provide good conductivity and improved resistance against repeated switching wear, helping maintain stable electrical performance.
Recommended information includes:
Yijia Industrial Electrical Co., Ltd. manufactures industrial switching components for automation equipment manufacturers, electrical system suppliers and machinery builders.
The Square Push Button Switch Single Pole Double Throw combines compact 16mm installation, flexible SPDT switching, silver alloy contact technology and OEM customization capability.
Through controlled manufacturing procedures, quality inspection systems and engineering support, Yijia provides reliable switching solutions for industrial control applications worldwide.
