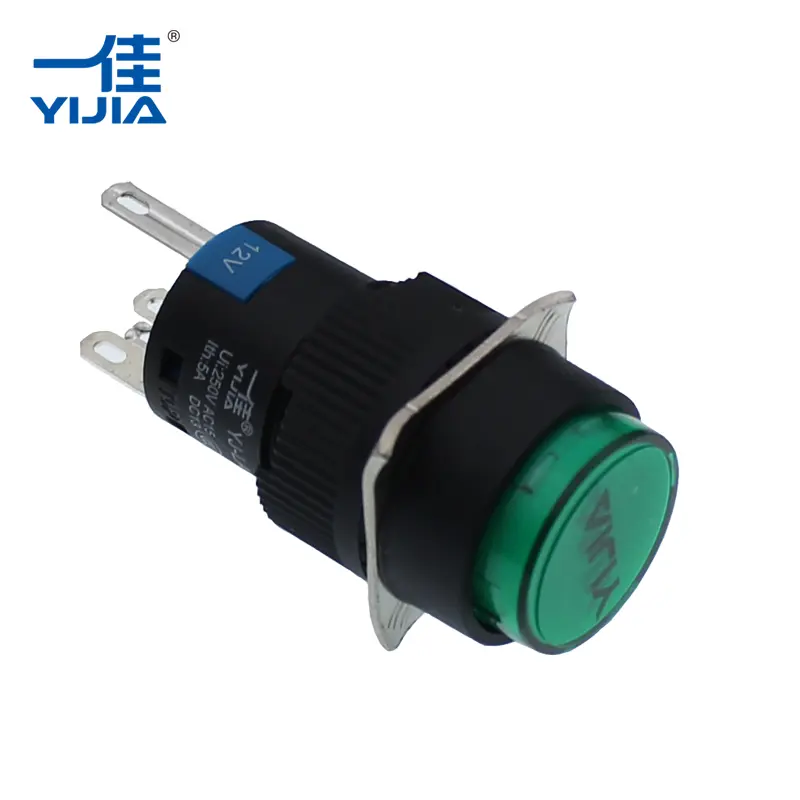

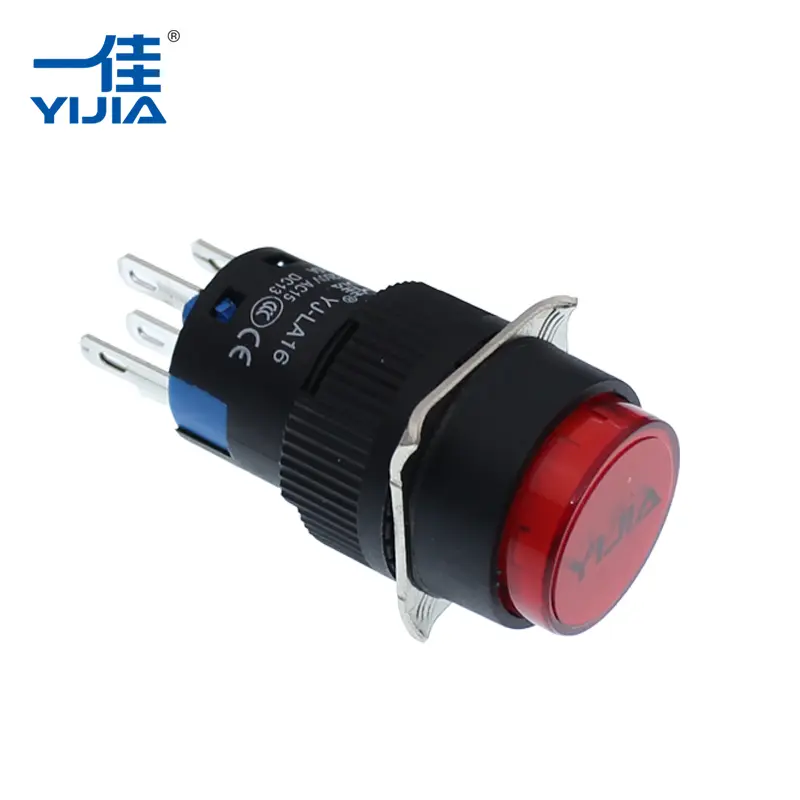

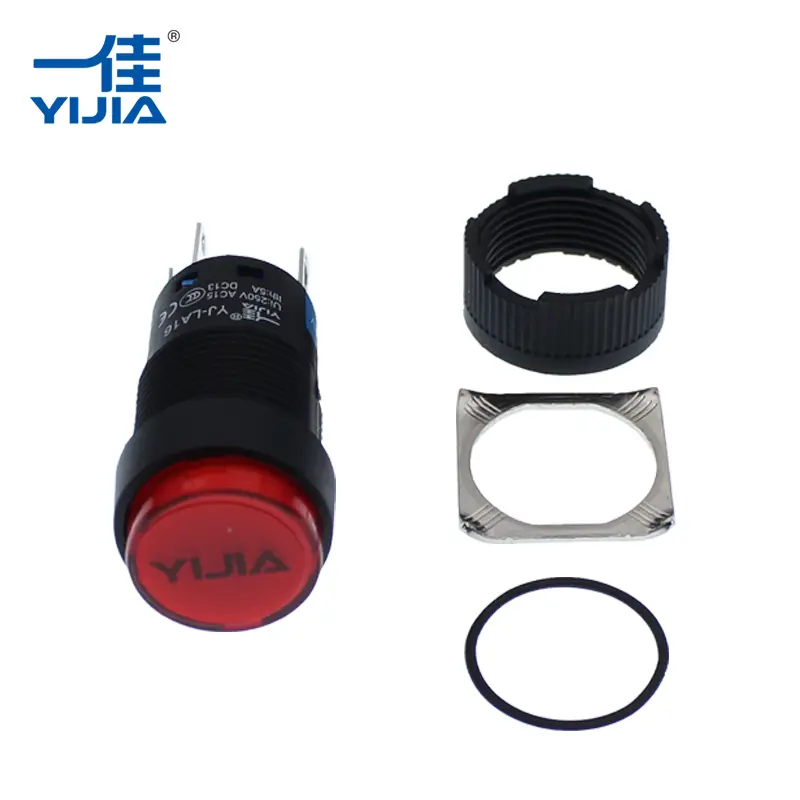

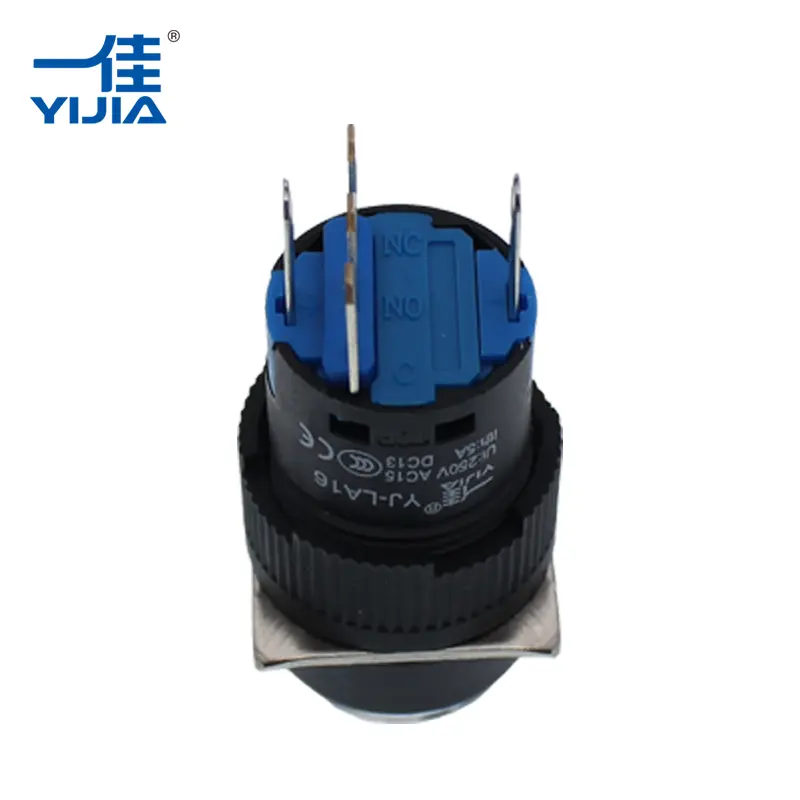

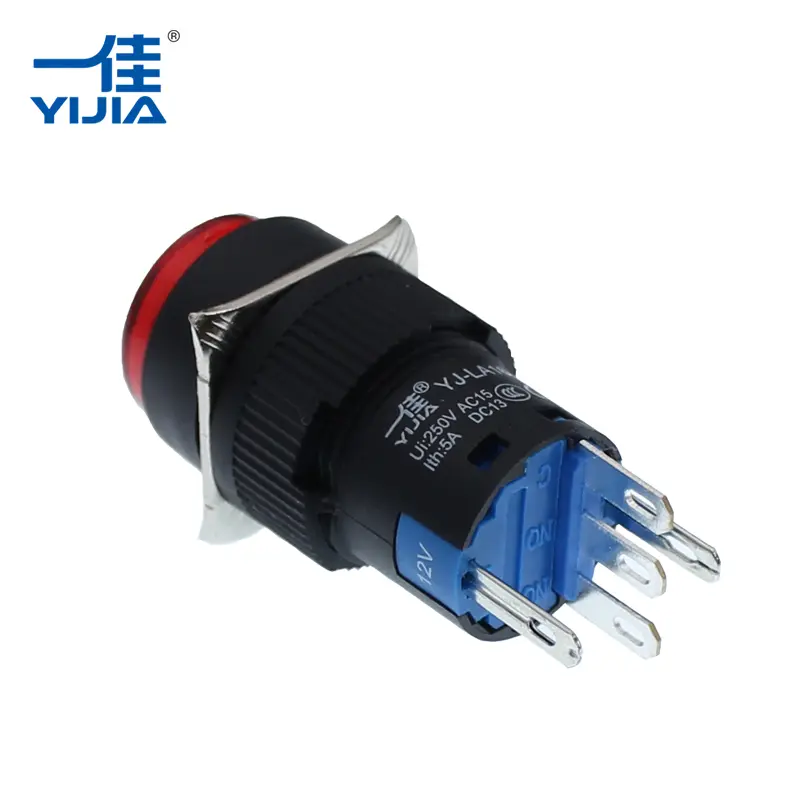

Round Push Button Switch

Round push button switch has two type contact structure, 1NO1NC or 2NO2NC.According to the system control request, customer can choose the suitable contact structure. It can work on momentary or maintained operation mode. To improve the electrical performance, it uses silver alloy. The electrical life is more than 100000 times.The newest round push button is with a luminous effect hat enhances its aesthetic appeal,and has provide multi-color options, red, blue, green, yellow, and white. YIJIA is the push button manufacturers and has sufficient production capacity and enough product in stock to provide stable supply services.

Features & Benefits

● 16mm mounting hole size

● High- quality engineering plastics

● 15A current capacity

● 1NO1NC/2NO2NC contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 500,000 cycles long mechanical life

● 100,000 cycles long electrical life

● 50,000 hours high-brightness LED life

● IP54 protection level

● CCC,TUV,CE

● RoHS(customized)

● Best price and high performance

● Professional high current push button switch supplies

● Support to OEM/ODM

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

①　the dimensions of push button to install: 16mm.

②　the load current you need to control: 3A.

③　the type of head part: plat head without light.

④　choose the contact structure: 1NO1NC/2NO2NC.

⑤　Operation mode: Momentary or Latching.

⑥　LED volt and color(if need led): DC 24V GREEN.

⑦　special request: waterproof, Custom symbol, need socket...
