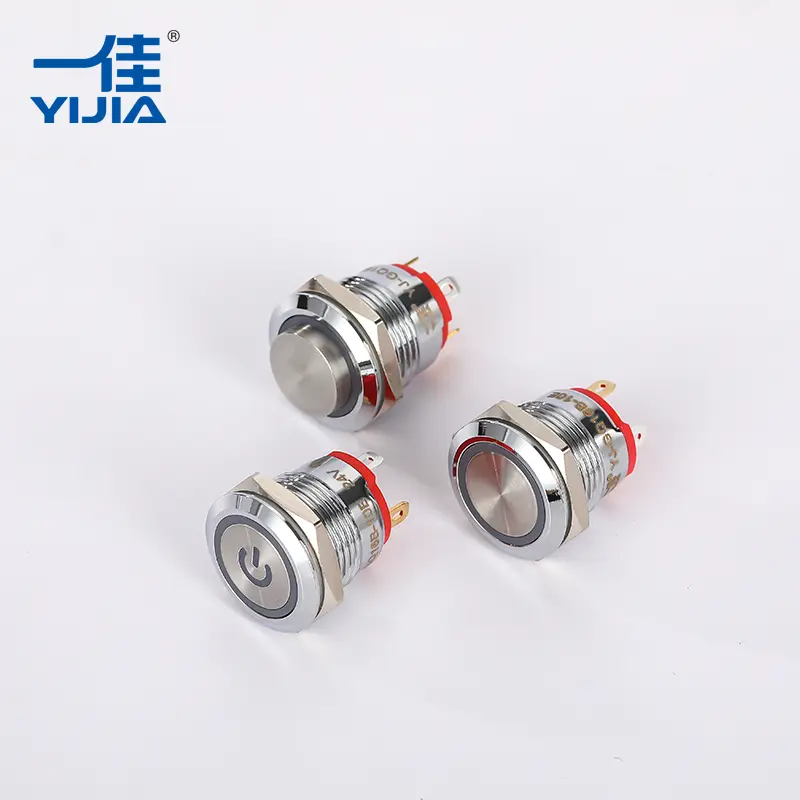

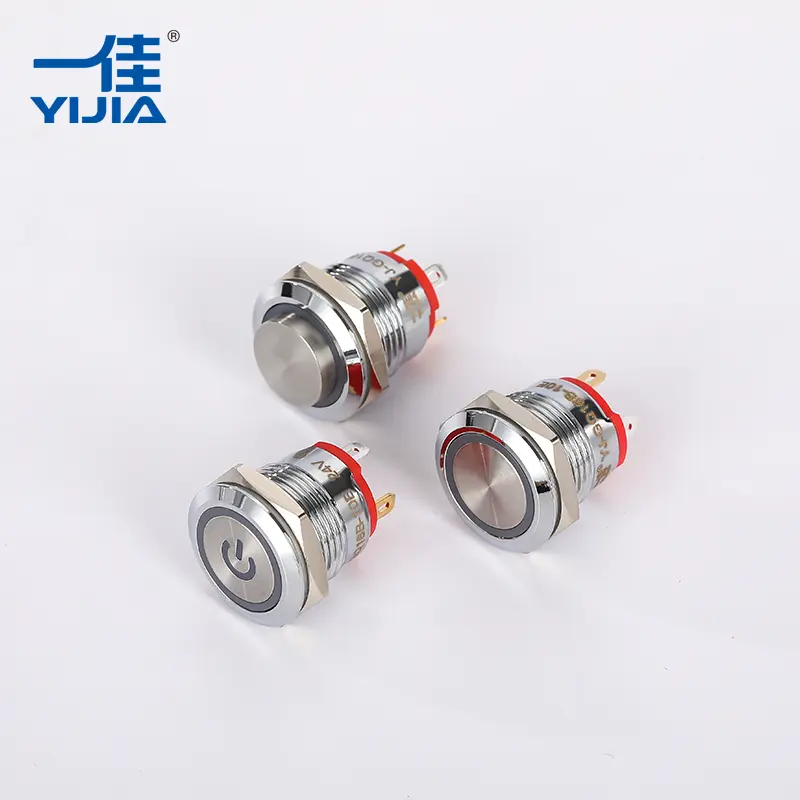

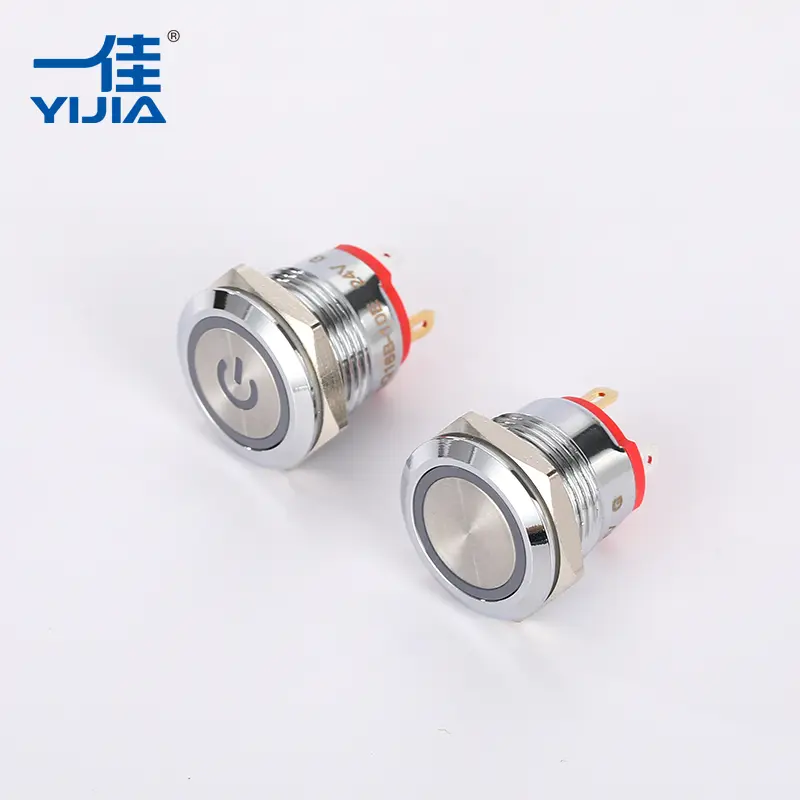

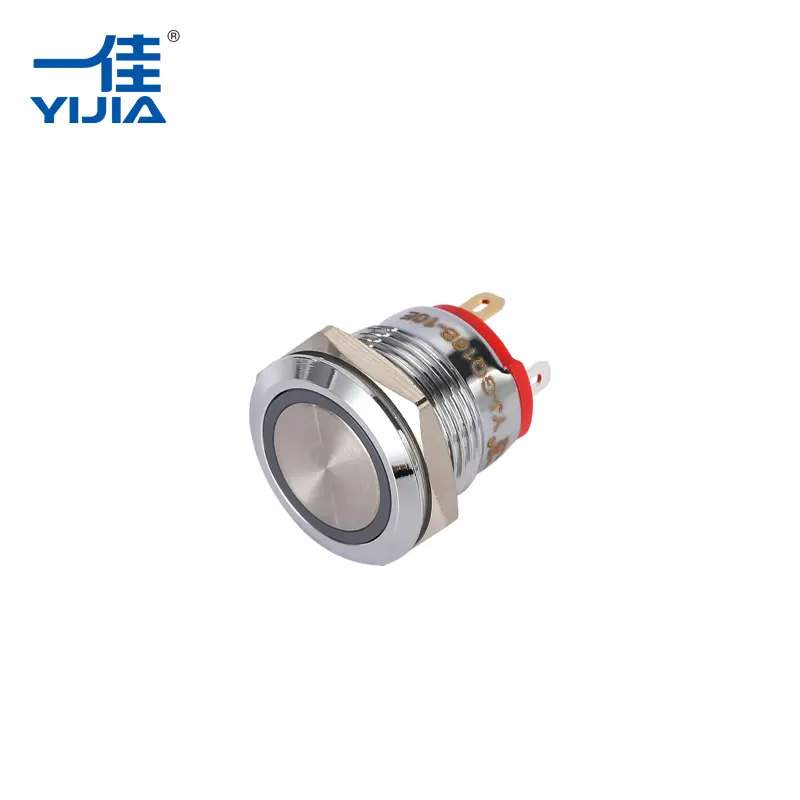

Small Push Button Switch

The rated current of small push button switch is 5A. The size of small button is more smaller than the normal push button. It is easy to be installed in limited space machine. For different installation dimensions, there are many model to choose, from 12mm to 30mm. Under the cheep price, equipped with high-intensity LED, the push button is with a luminous effect that enhances its aesthetic appeal. The body and head of metal push button are crafted from stainless steel, offering both enhanced aesthetics and durability. YIJIA provide the durable and high quality push button, and we have excellent design team to release the newest push button switch. We have sufficient production capacity and enough product in stock to provide stable supply services. And is for 5 years warranty.

Features & Benefits

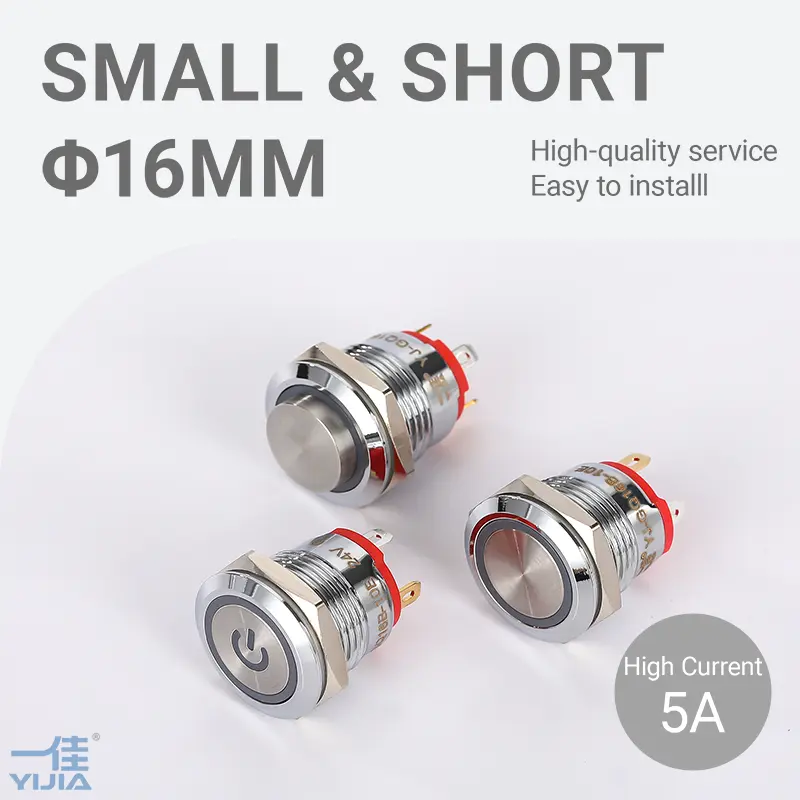

● 16mm/19mm/22mm multi mounting hole size

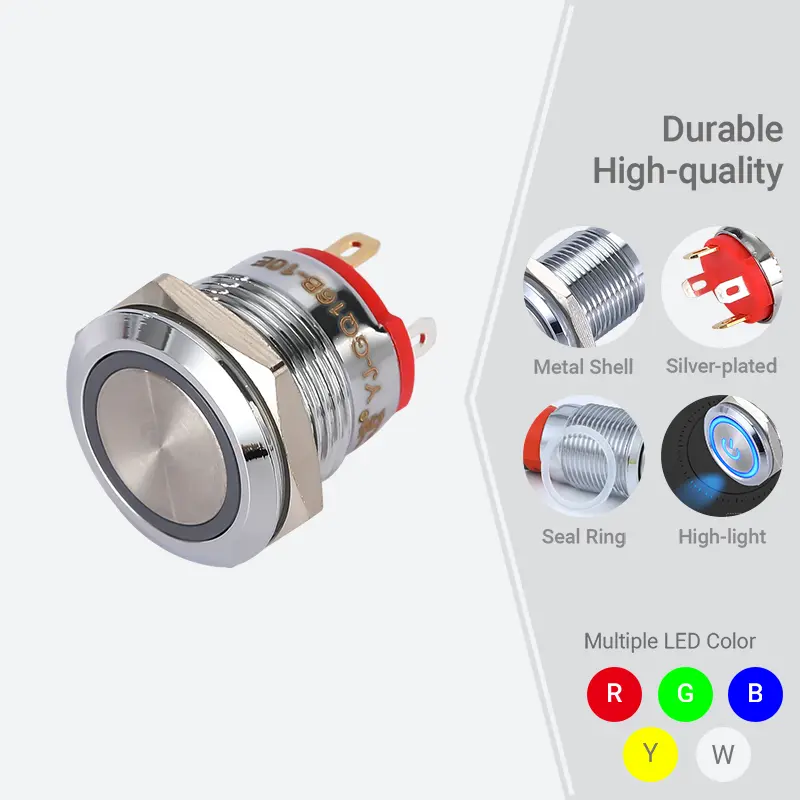

● Chrome-plated brass/stainless steel shell

● 5A high current capacity

● 1NO contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 500,000 cycles long mechanical life

● 100,000 cycles long electrical life

● 50,000 hours high-brightness LED life

● IP65 protection level

● CCC,TUV,CE

● RoHS,Reach(customized)

● Best price and high performance

● 5 years warranty

● Small push button switch in stock

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

① the dimensions of push button to install: 16mm.

② the load current you need to control: 5A.

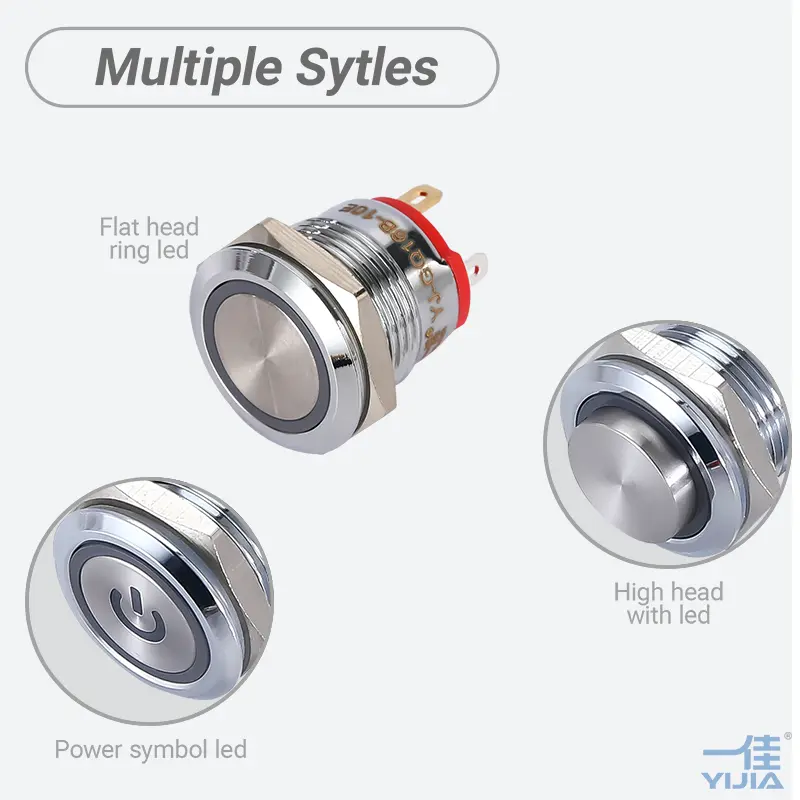

③ the type of head part: plat head without light.

④ choose the contact structure: 1NO

⑤ Operation mode: Momentary

⑥ LED volt and color(if need led): DC 24V GREEN.

⑦ choose the materials of shell: Stainless steel or Brass clad chromium.

⑧ special request: waterproof, Custom symbol, need socket...
