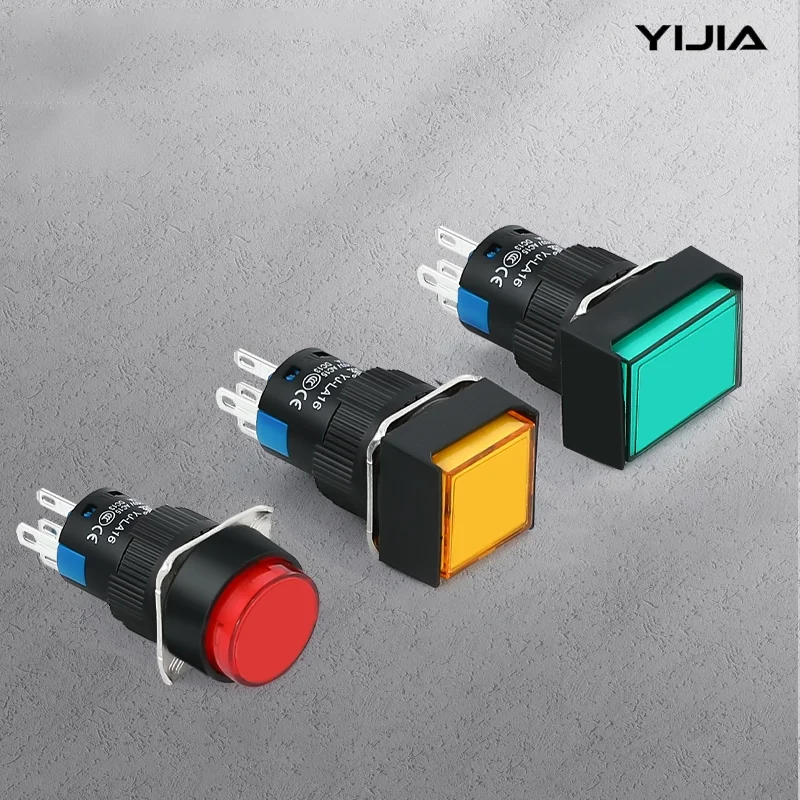

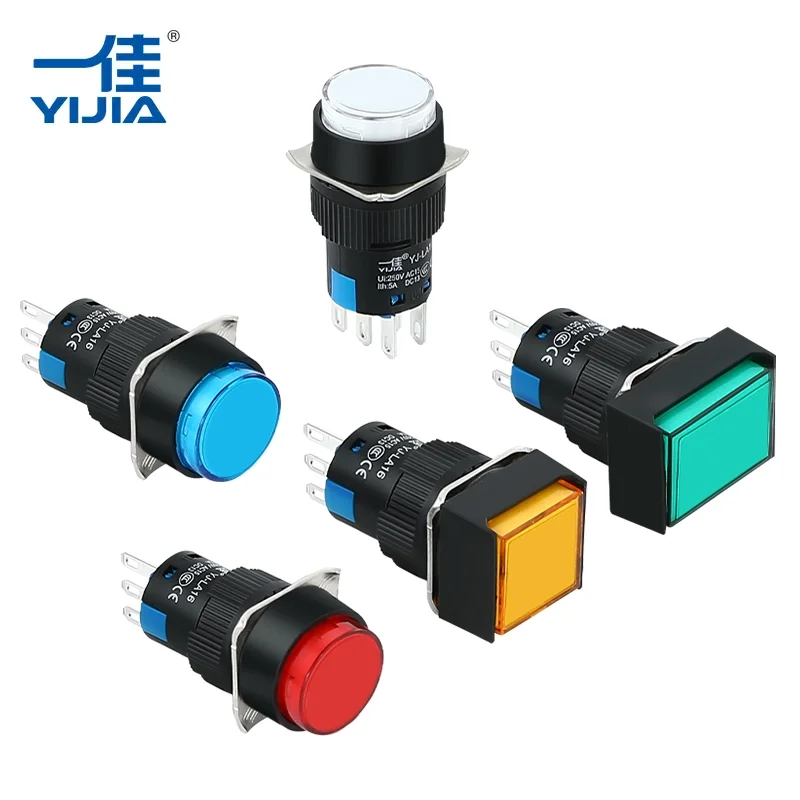

Rectangle Push Button Switch

Yijia Industrial Electrical Co., Ltd. specializes in the design and production of relays, AC contactors, and signal lamps. Our commitment to independent research and development has positioned us as a large-scale enterprise in China. The rectangle push button switch series is specifically developed for consoles, distribution boxes, and instrument cabinets where space optimization and visual clarity are essential.

Product Engineering and Material Quality

The rectangle push button switch utilizes high-quality engineering plastics and silver alloy contacts to maintain low contact resistance (≤ 50 mΩ). This combination ensures the switch can handle a 5A current capacity while extending the service life to 500,000 mechanical cycles.

• Illumination Performance: Integrated high-intensity LEDs combined with light diffuser panels emit uniform, soft light.
• Operational Reliability: Designed for a 100,000-cycle electrical life, providing long-term stability in high-frequency environments.
• Installation Efficiency: We provide specialized tools to simplify the mounting process, reducing assembly time for high-volume production lines.

Sourcing Advantages for Procurement Managers

Choosing Yijia as your rectangle push button switch supplier offers several strategic benefits for your supply chain:

1. In-House Manufacturing: We manage our own injection molding and stamping processes, ensuring strict control over material purity and component tolerances.
2. Certified Compliance: All products carry CCC, CE, and RoHS certifications, meeting the safety standards required for international export.
3. Inventory Stability: We maintain a significant stock of the rectangle push button switch to support rapid lead times and minimize project delays.
4. Cost Efficiency: By optimizing our production workflow, we provide high-performance switching solutions at a competitive price point without compromising technical specifications.

Technical Specifications and Capabilities

The rectangle push button switch is designed with a 16mm mounting hole, making it compatible with standard industrial panel layouts.

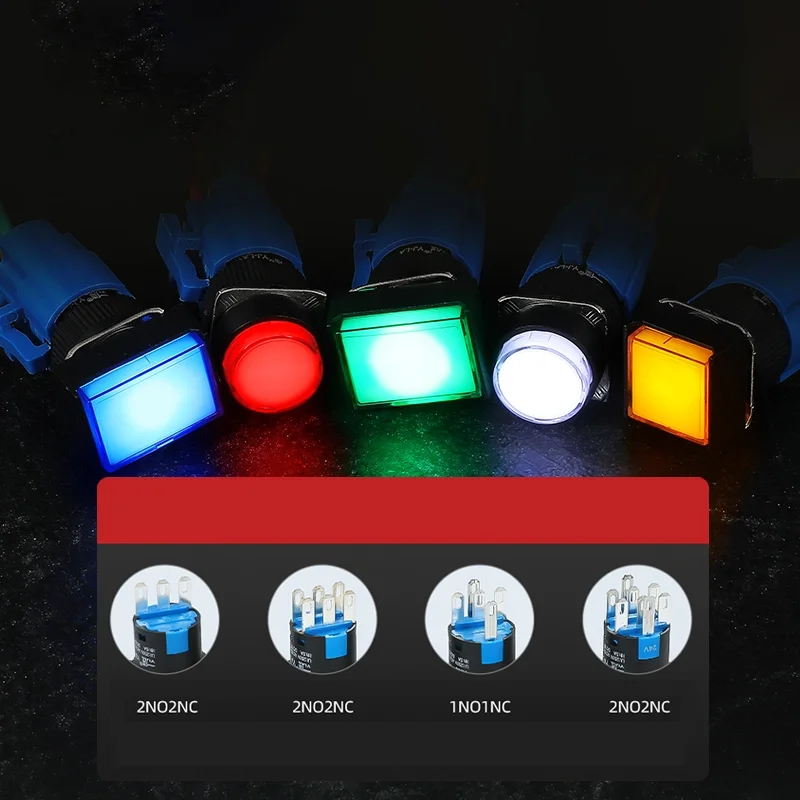

• Contact Structure: Available in 1NO1NC or 2NO2NC configurations.
• Protection Level: Rated at IP40/IP54, providing necessary resistance against dust and moisture in indoor industrial environments.
• Customization: We support OEM/ODM requests, including custom symbols, specific LED voltages (e.g., DC 12V, 24V, or AC 220V), and tailored wiring harnesses or sockets.

Selection Guide for Custom Orders

To ensure you receive the correct rectangle push button switch for your specific application, please provide the following technical details when sending an inquiry:

• Mounting Diameter: (Standard is 16mm)
• Load Current: (Maximum 5A)
• Operation Mode: Momentary (spring return) or Latching (push-on, push-off)
• LED Requirements: Specify voltage and color (Red, Green, Yellow, Blue, White)
• Contact Configuration: 1NO1NC or 2NO2NC

FAQ

What is the lead time for bulk orders of the rectangle push button switch?

Since we maintain our own production lines and inventory, standard orders are typically processed within 7-15 business days.

Can the switch handle DC and AC voltages?

Yes, the contacts are designed to handle various voltage ranges. Please specify your operating voltage so we can provide the correctly rated LED and contact assembly.

Does Yijia provide samples for testing?

We offer samples for technical evaluation to ensure the rectangle push button switch meets your equipment’s specific performance criteria before proceeding with a full-scale purchase.

Features & Benefits

● 16mm mounting hole size

● High- quality engineering plastics

● 5A current capacity

● 1NO1NC/2NO2NC contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 500,000 cycles long mechanical life

● 100,000 cycles long electrical life

● 50,000 hours high-brightness LED life

● IP54 protection level

● CCC,TUV,CE

● RoHS(customized)

● Best price and high performance

● Professional high current push button switch supplies

● Support to OEM/ODM

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

① the dimensions of push button to install: 16mm.

② the load current you need to control: 3A.

③ the type of head part: plat head without light.

④ choose the contact structure: 1NO1NC/2NO2NC.

⑤ Operation mode: Momentary or Latching.

⑥ LED volt and color(if need led): DC 24V GREEN.

⑦ special request: waterproof, Custom symbol, need socket...
