YJ-GQ8H-10/J/N Compact Push Button Switch

YJ-GQ8H-10/J/N Compact Push Button Switch

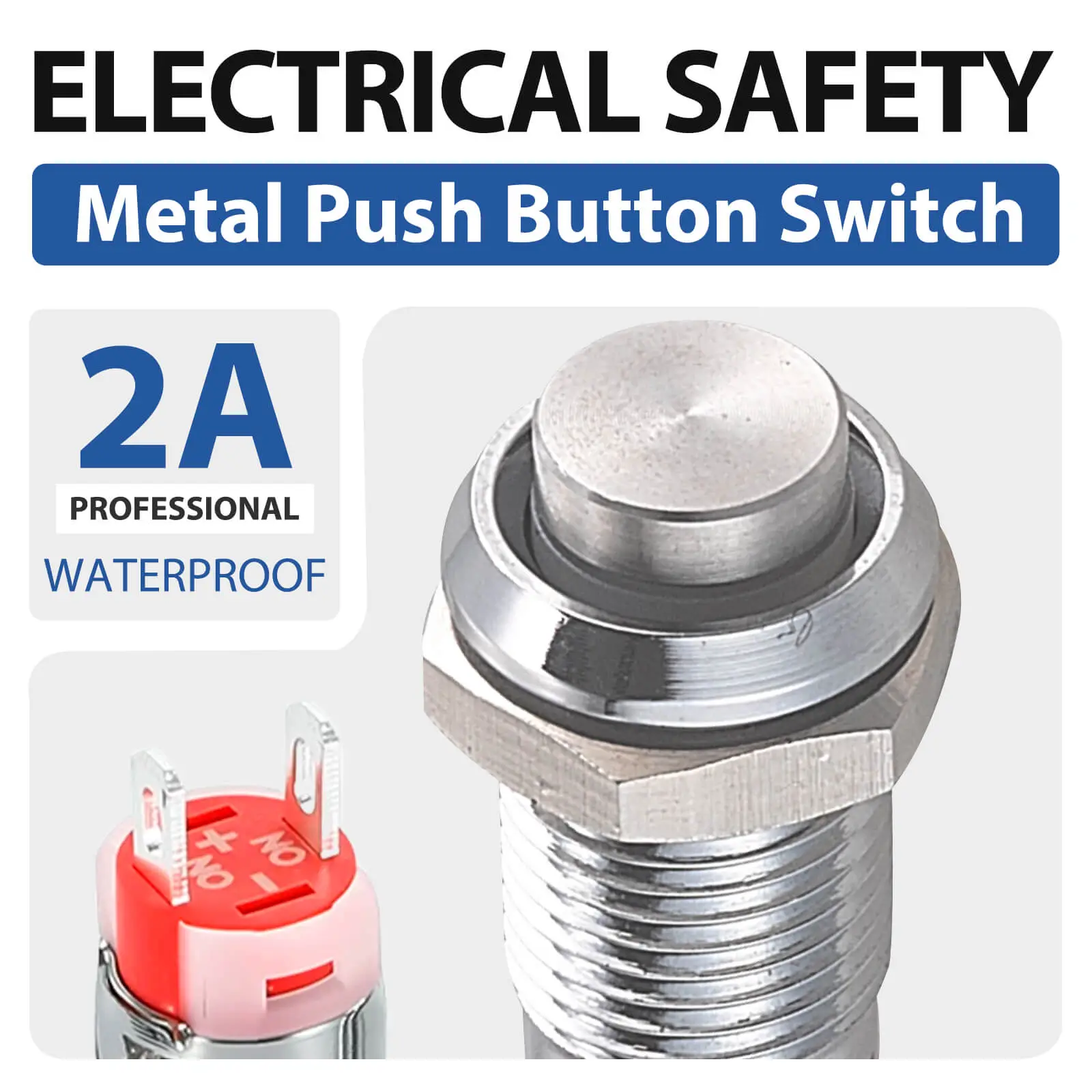

Engineered for ultra-compact installation scenarios, this 8mm(M8) miniature metal push button offers the perfect combination of space-saving efficiency and rugged durability. Featuring an IP65 waterproof rating and robust impact resistance, it excels in demanding outdoor environments. With an exceptional service life of up to 1,000,000 times, it is the ideal, reliable control solution for high-precision devices, medical equipment, smart home appliances, and automotive electronics.

Specifications

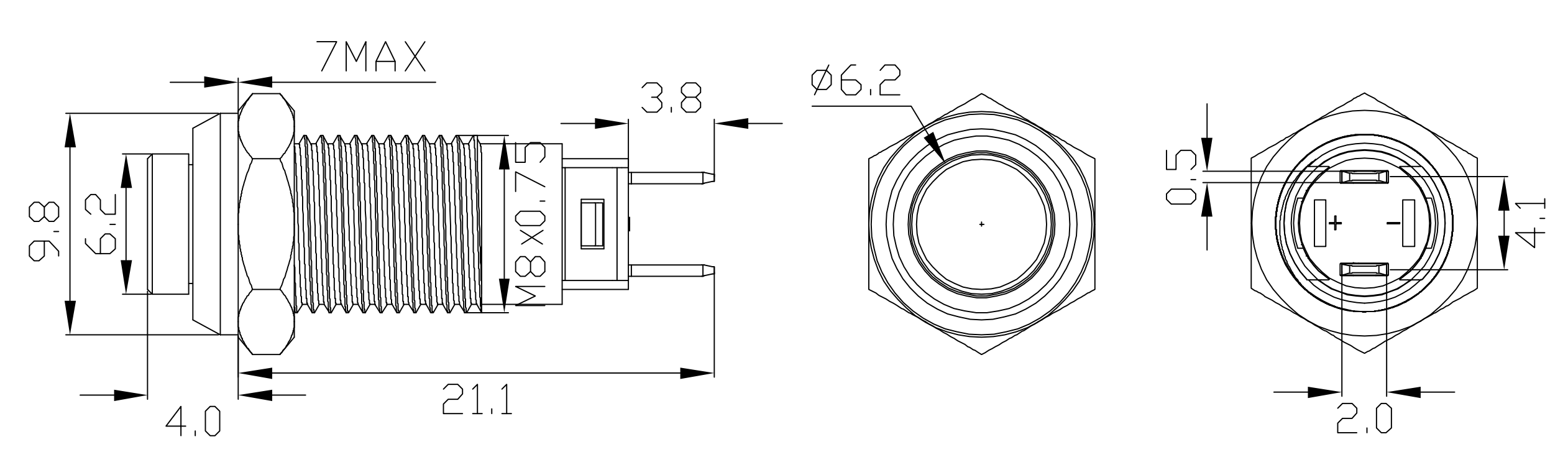

• 8mm / M8 /  0.315''
• Momentary or Latching

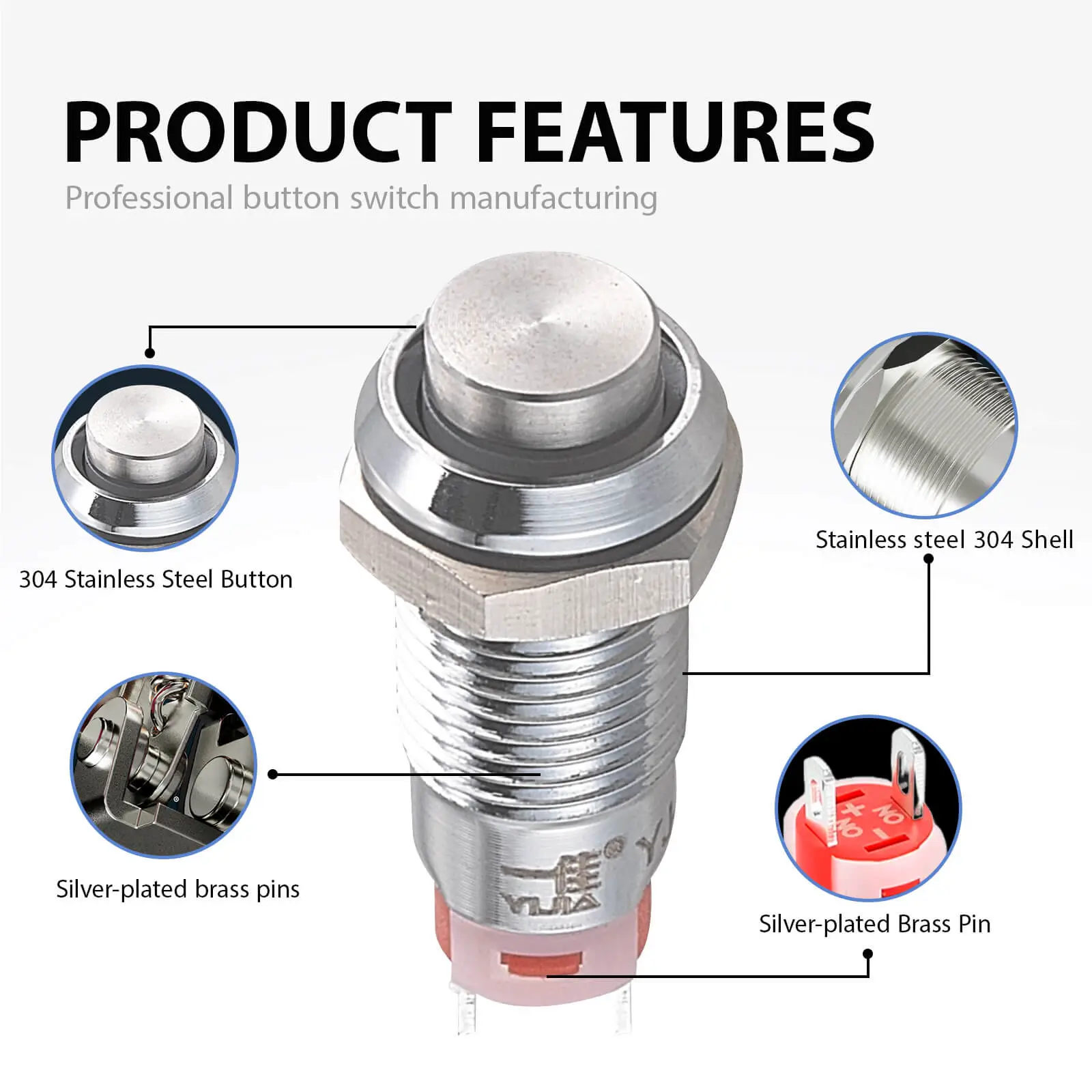

• Chrome-plated brass shell
• Silver alloy contact
• Ith: 2A current
• 1NO 2pin contact bridge (Form X)
• Lower contact resistance≤50mΩ
• 1,000,000 times mechanical life
• 100,000 times electrical life
• IP65 protection level
• CCC, TUV, CE

Applications & Solutions

1. Extreme Space Constraints Applications

With technological evolution, electronic components have tended toward miniaturization. And the devices are becoming increasingly compact, sleek, and portable. As the reserved space for push button keeps shrinking, manufacturers across various industries are in urgent need of push button switches smaller than 10 mm. Conventional push buttons are predominantly 12mm, 16mm, 19mm or 22mm in size, which can hardly meet customers’ requirements. To solve customers’ dimensional constraints, we have released an very small push button switch 2 pin, only 8mm. This micro no off push button switch features compact size, easy installation and excellent current load capacity.

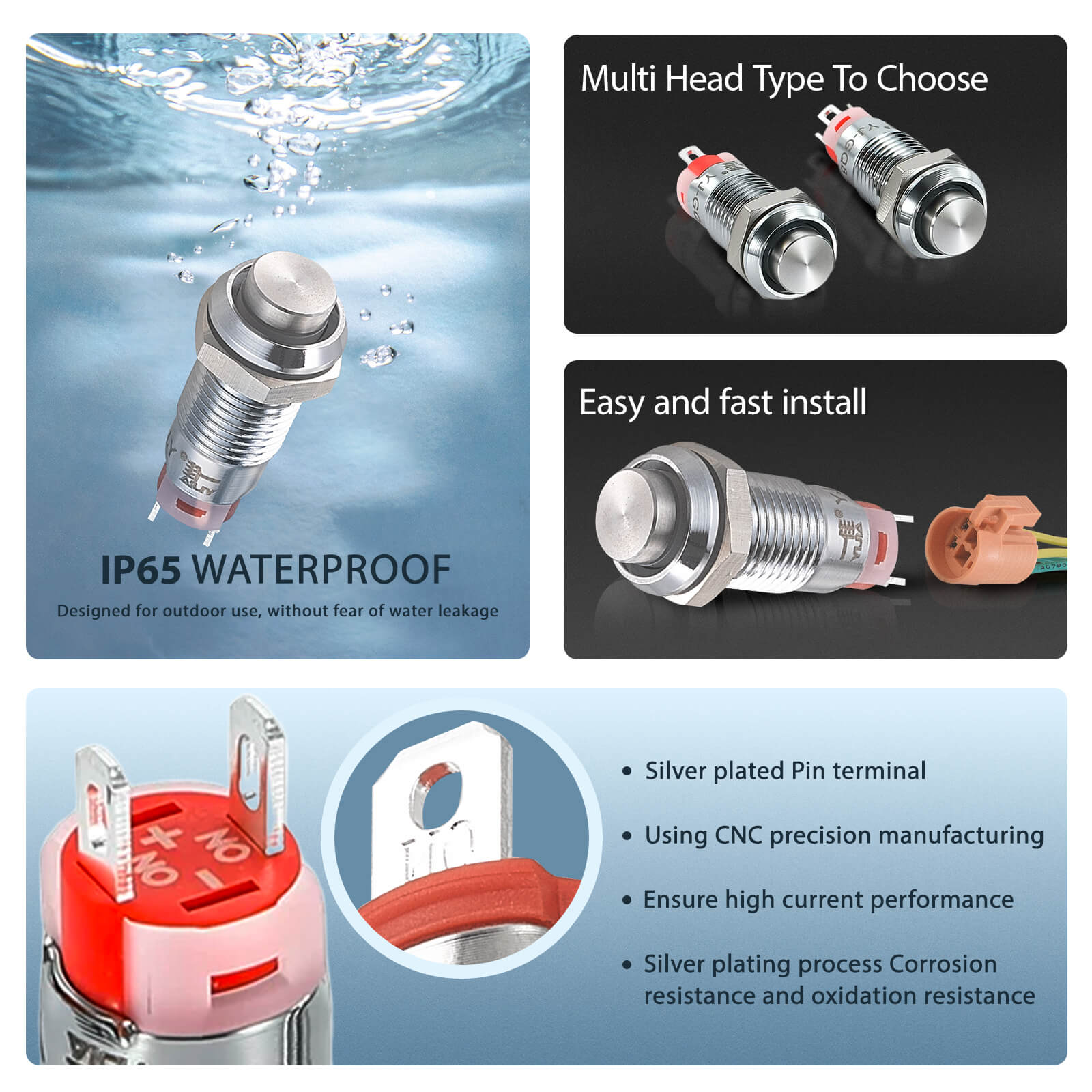

2. Used for moisture, dust, and liquid Ingress environment for outdoor

YJ-GQ8H-10/J/N small push buttons are widely used in outdoor equipment or appliances, such as access control switches, outdoor controllers, camping equipment, humidifiers, water pump controller and other devices.
