In industrial environments, a single faulty button can halt an entire production line. The YIJIA 22mm Push Button is not just a panel component—it is a reliability solution. Designed for standard 22mm cutouts, it combines rugged construction with tool-free modularity, giving engineers and maintenance teams exactly what they need: faster service, fewer spare parts, and consistent performance shift after shift.
What It Is

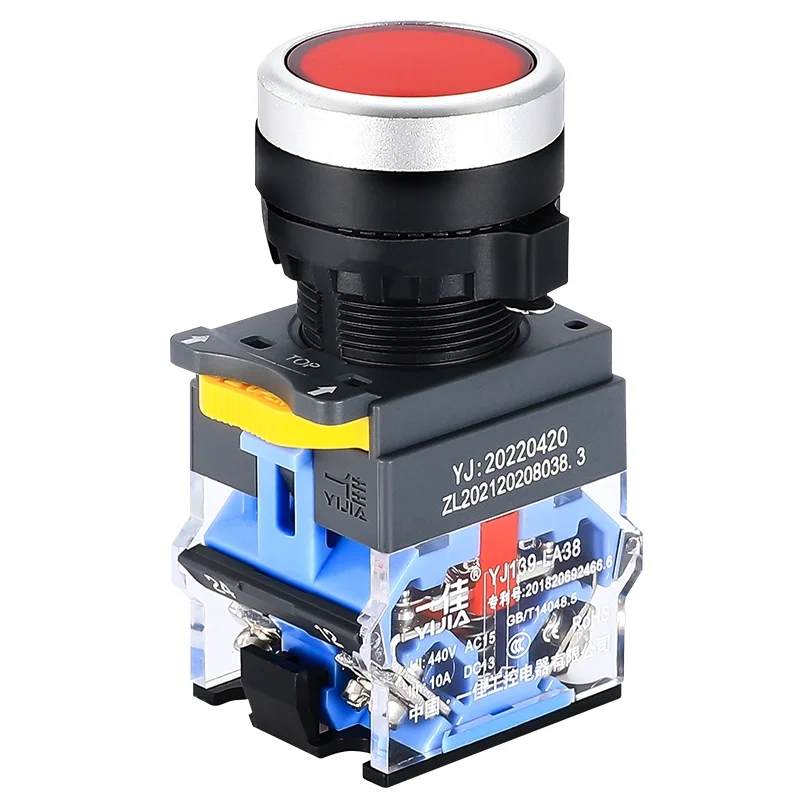

The YIJIA 22mm Push Button is an industrial-grade momentary or latching control device that serves as the primary human-machine interface for electrical circuits. It translates operator actions into switching commands across control cabinets, distribution panels, automated machinery, and heavy equipment—wherever dependable on/off or pulse control is required.
Why Choose YIJIA
|
Challenge |
YIJIA Solution |
|
Long downtime during maintenance |

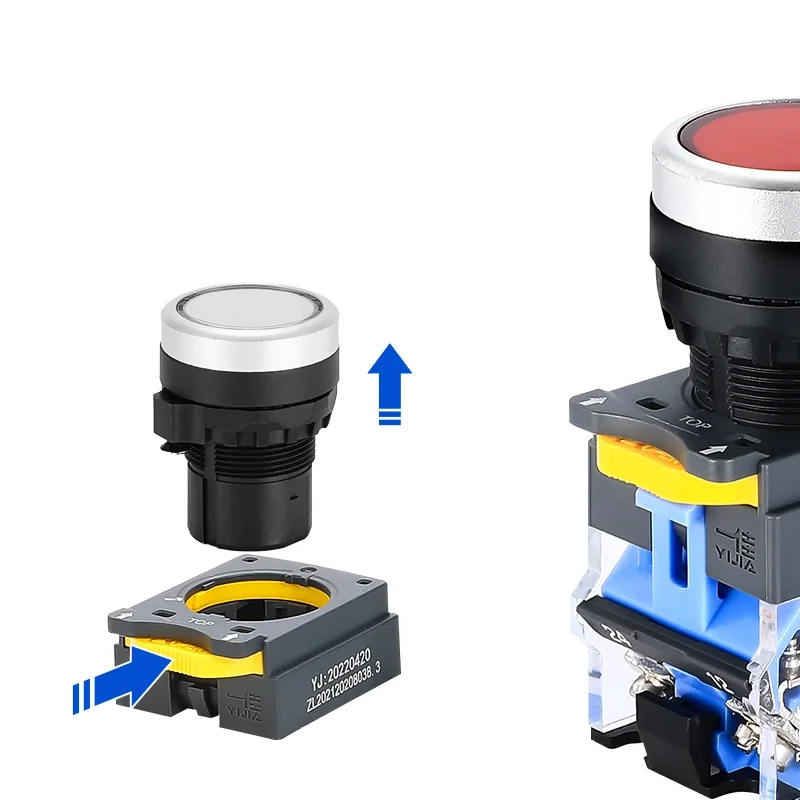

Modular contact blocks snap in/out in under 3 seconds—no panel disassembly required |
|
Frequent contact failure from arcing |
Silver-alloy contacts resist welding and oxidation, extending electrical life |
|
Corrosion in humid or dusty sites |
Brass terminals + sealed engineering-plastic housing withstand harsh conditions |
|
Inflexible mounting positions |
Supports top, middle, and bottom panel mounting—adapts to any cabinet design |
|
Inconsistent quality from batch to batch |
Full in-house manufacturing from raw material to final assembly ensures traceability |
Key Features & Engineering Benefits
Modular by Design, Practical by Nature Each button accepts multiple contact blocks that can be added, removed, or reconfigured on the spot. No special tools. No wiring changes. This reduces mean time to repair (MTTR) by over 50% compared to traditional one-piece designs.
Materials That Perform Under Pressure
Housing: Flame-retardant engineering plastic—impact-resistant and UV-stable
Contacts: Silver-alloy—low contact resistance, high anti-weld capability
Terminals: High-grade brass—excellent conductivity with anti-corrosion plating

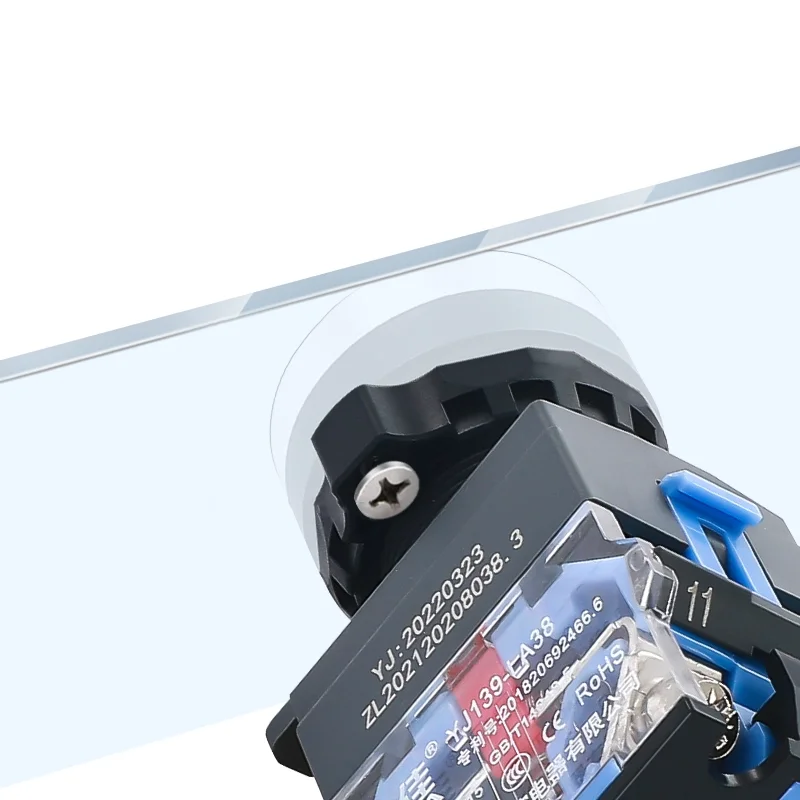

Mounting Versatility Whether your panel requires top-entry cabling, mid-panel placement, or bottom access, the YIJIA 22mm button adapts without modifying the panel layout.
Factory-Tested Durability Every unit undergoes electrical and mechanical life testing beyond rated cycles, ensuring stable contact resistance even under frequent operation.
Features & Benefits
● 22mm mounting hole size
● Chrome-plated brass/stainless steel shell
● Up to 10A high current capacity
● 1NO1NC/2NO2NC/1NO contact structure
● High-quality silver alloy contact
● Lower contact resistance≤50mΩ
● 500,000 cycles long mechanical life
● 100,000 cycles long electrical life
● 50,000 hours high-brightness LED life
● IP65 protection level, IP67(customized)
● CCC,TUV,CE
● RoHS,Reach(customized)
● Best price and high performance
● China power push button switch with best price
● Support to OEM/ODM
How to select the appropriate type of metal push button
Please answer the following question, and send it to us, we will select the appropriate type for you.
Question&Example
① the dimensions of push button to install: 16mm.
② the load current you need to control: 5A.
③ the type of head part: plat head without light.
④ choose the contact structure: 1NO1NC/2NO2NC
⑤ Operation mode: Momentary or Latching.
⑥ LED volt and color(if need led): DC 24V GREEN.
⑦ choose the materials of shell: Stainless steel or Brass clad chromium.
⑧ special request: waterproof, Custom symbol, need socket...
Application Fields
Automated production lines and operator workstations
Power distribution and switchgear assemblie
Conveyor systems, sorters, and material handling equipment
Machine tools, injection molders, and packaging machinery
Control panels for HVAC, pumps, and industrial vehicles
Competitive Comparison
|
Parameter |
Conventional Push Button |
YIJIA 22mm |
|
Contact module replacement |
Requires full disassembly |
Front-access modular swap |
|
Mounting orientation |
Fixed |
3-position flexible |
|
Contact material |
Standard alloy |
Silver-alloy, anti-weld |
|
Spare parts inventory |
Multiple variations |
Unified modules reduce stock |
|
Supplier quality control |
Often outsourced |
In-house, ISO-monitored |
Frequently Asked Questions
Q: Can I add contact blocks after installation? Yes. The modular front-access design allows you to insert or remove blocks at any time, even while the button remains mounted.
Q: Is this suitable for high-frequency start/stop applications? Absolutely. The silver-alloy contacts are specifically engineered to withstand frequent switching and resist contact welding.
Q: What is the ingress protection rating? Standard version offers IP65 protection against dust, water jets, and light oil mist—suitable for most industrial floor environments.
Q: Can I test samples before bulk ordering? Yes. Sample orders are welcome. Contact our sales team for pricing and delivery.
Q: Are custom engraving or color options available? Custom actuator colors, markings, and lens options are available upon request for volume orders.
