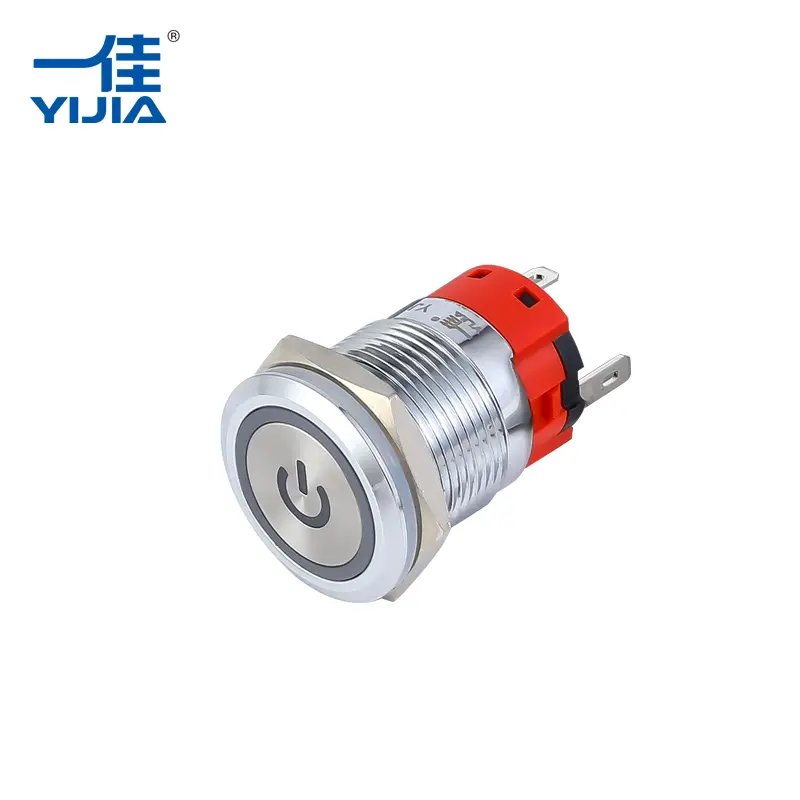

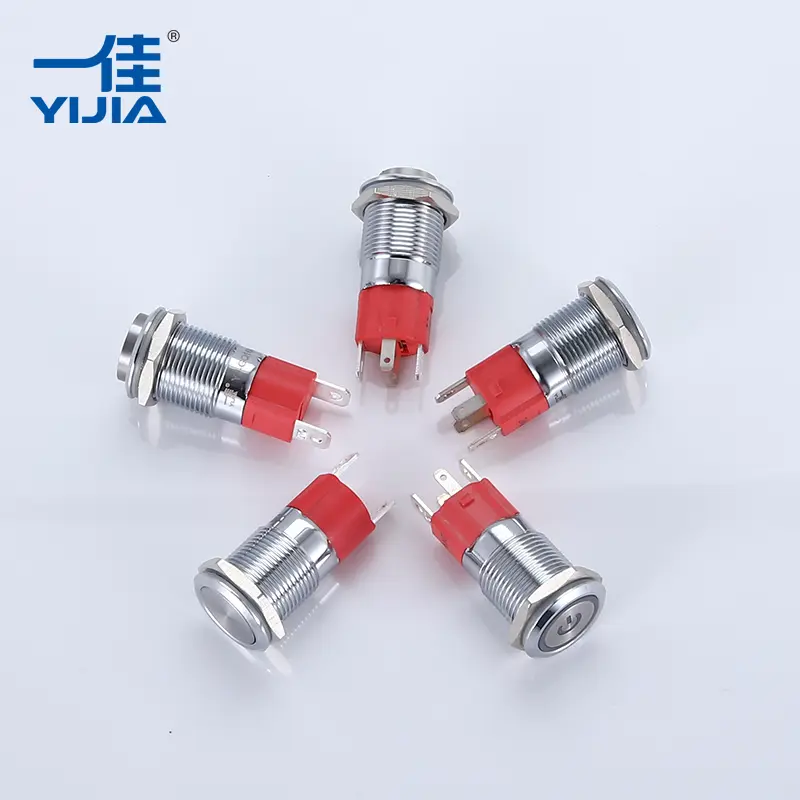

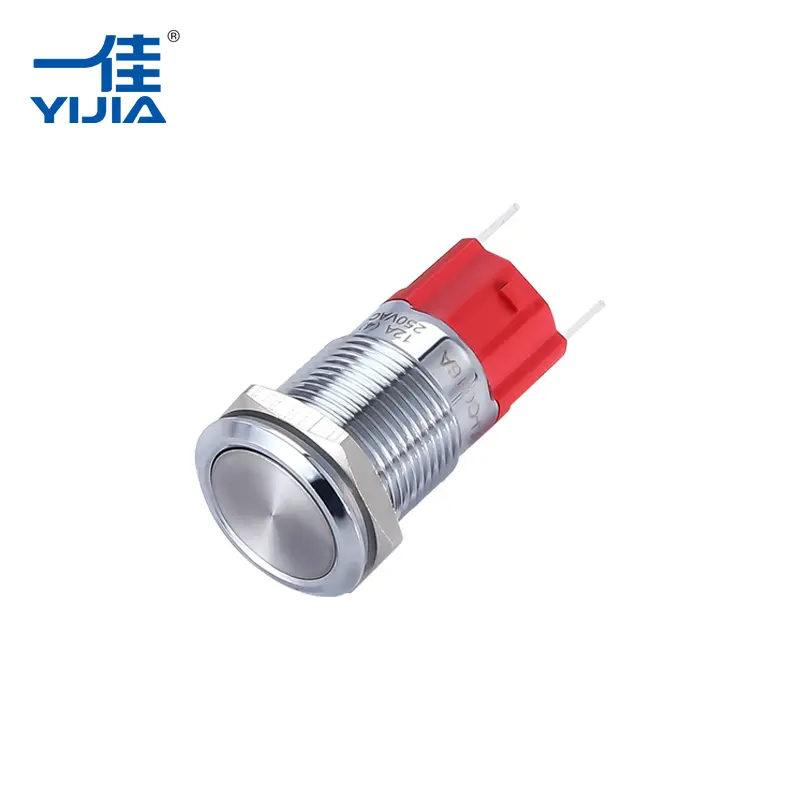

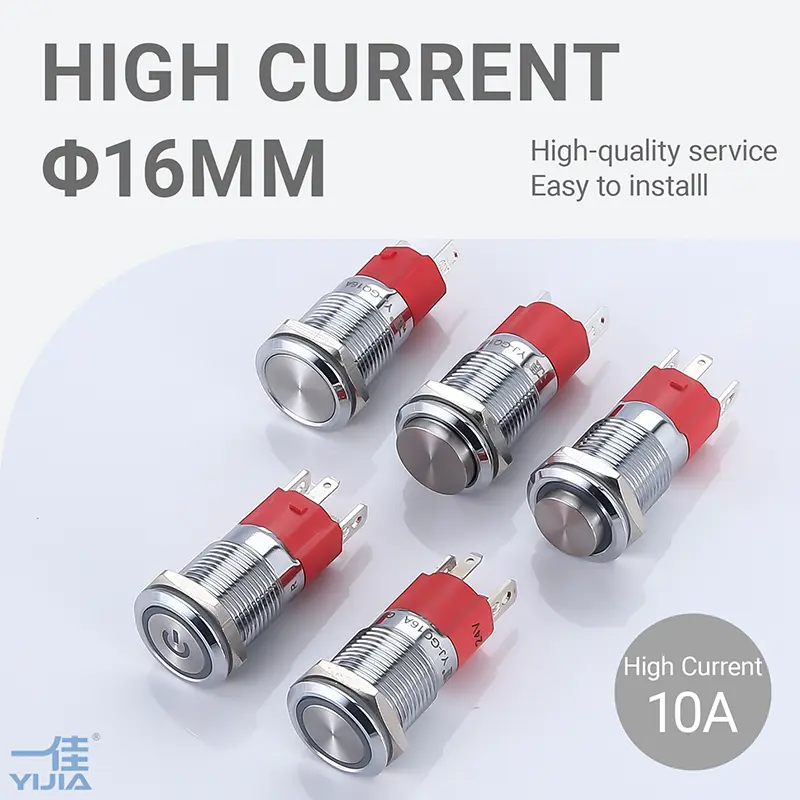

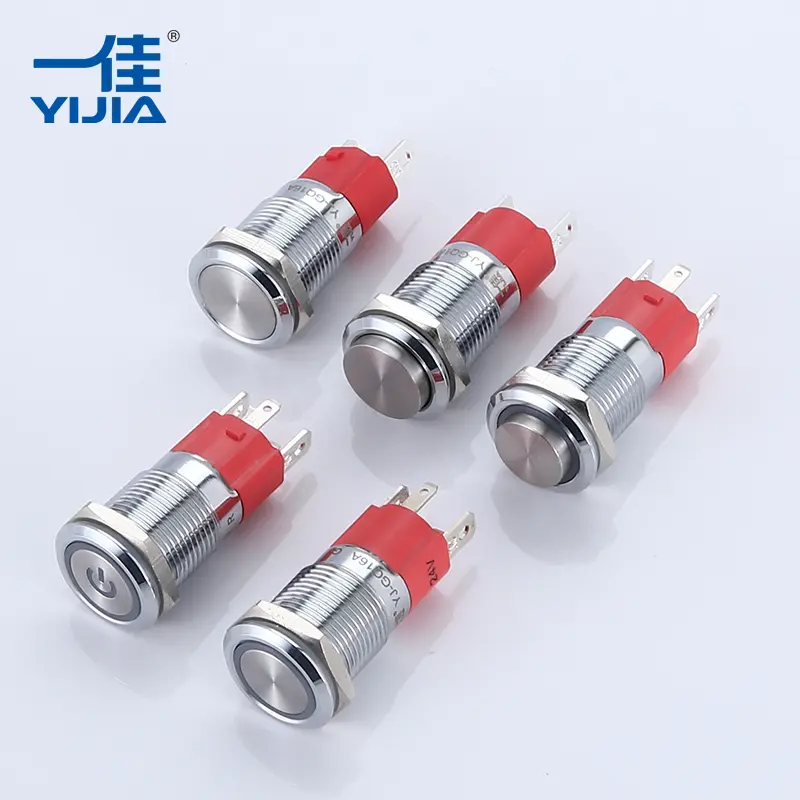

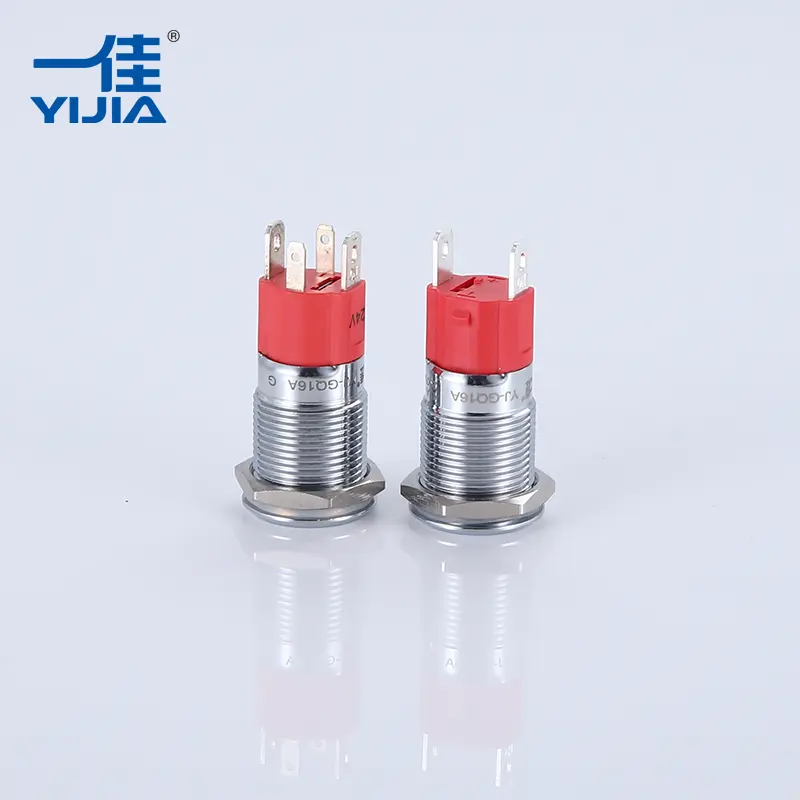

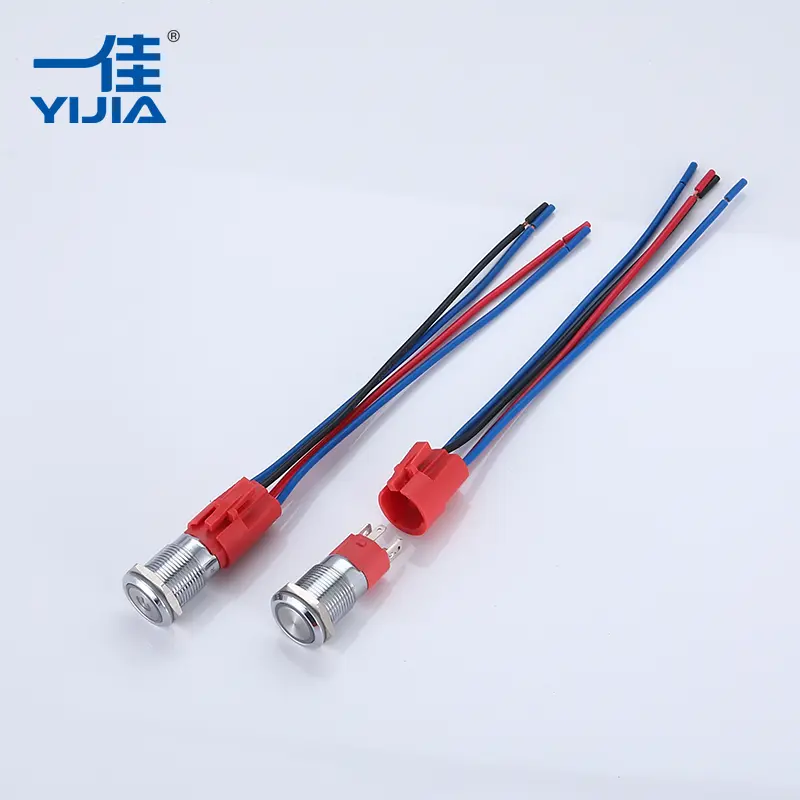

High Current Push Button Switch

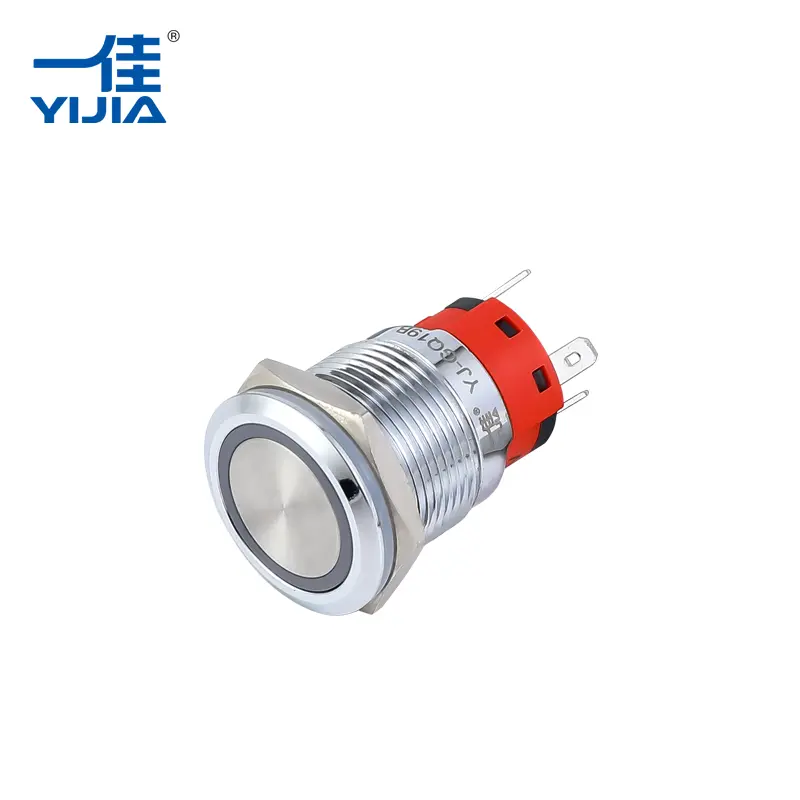

High current push button switch supports up to 18A. It comes in various dimensions, ranging from 16mm to 25mm. Equipped with high-intensity LED, the push button switch is with a luminous effect that enhances its aesthetic appeal. The shell and head of metal push button are crafted from stainless steel, offering both enhanced aesthetics and durability. YIJIA provide the durable and high quality push button switch, and we have excellent design team to release the newest push button switch. We have sufficient production capacity and enough product in stock to provide stable supply services.

Features & Benefits

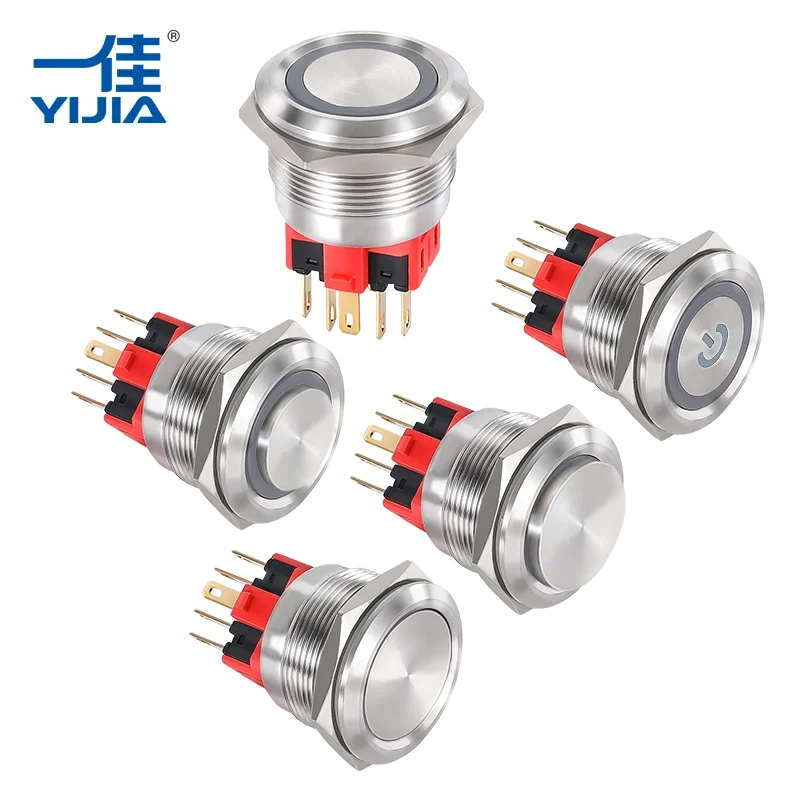

● 16mm/19mm/22mm/25mm multi mounting hole size

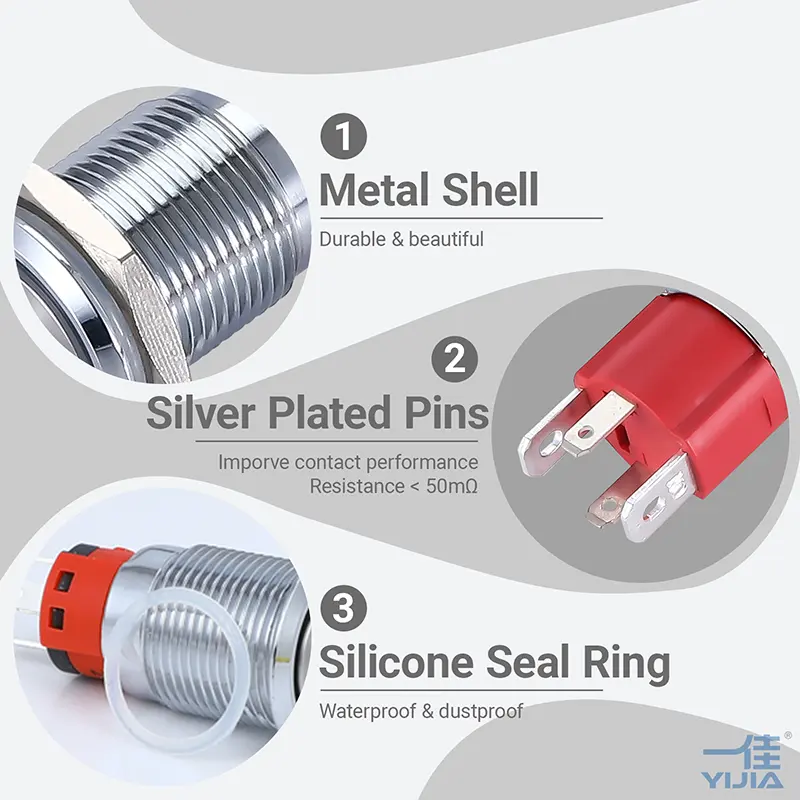

● Chrome-plated brass/stainless steel shell

● 18A/15A high current capacity

● 1NO/1NC/1NO1NC/2NO contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 500,000 cycles long mechanical life

● 100,000 cycles long electrical life

● 50,000 hours high-brightness LED life

● IP65 protection level

● CCC,TUV,CE

● RoHS,Reach(customized)

● Best price and high performance

● Professional high current push button switch supplies

● Support to OEM/ODM

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

① the dimensions of push button to install: 16mm.

② the load current you need to control: 7A.

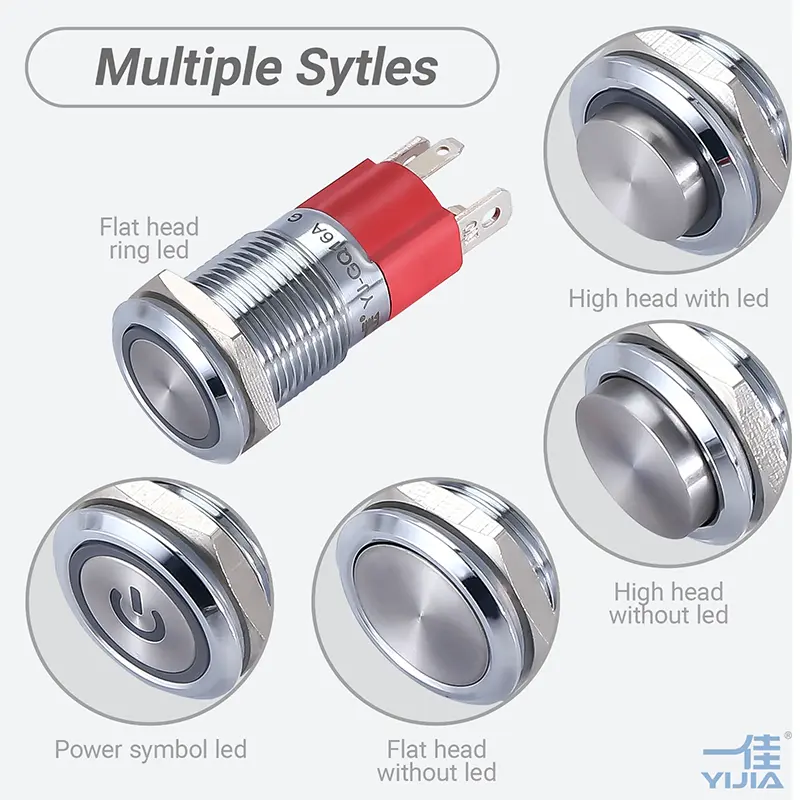

③ the type of head part: plat head without light.

④ choose the contact structure: 1NO/1NC/1NO1NC/2NO.

⑤ Operation mode: Momentary or Latching.

⑥ LED volt and color(if need led): DC 24V GREEN.

⑦ choose the materials of shell: Stainless steel or Brass clad chromium.

⑧ special request: waterproof, Custom symbol, need socket...
