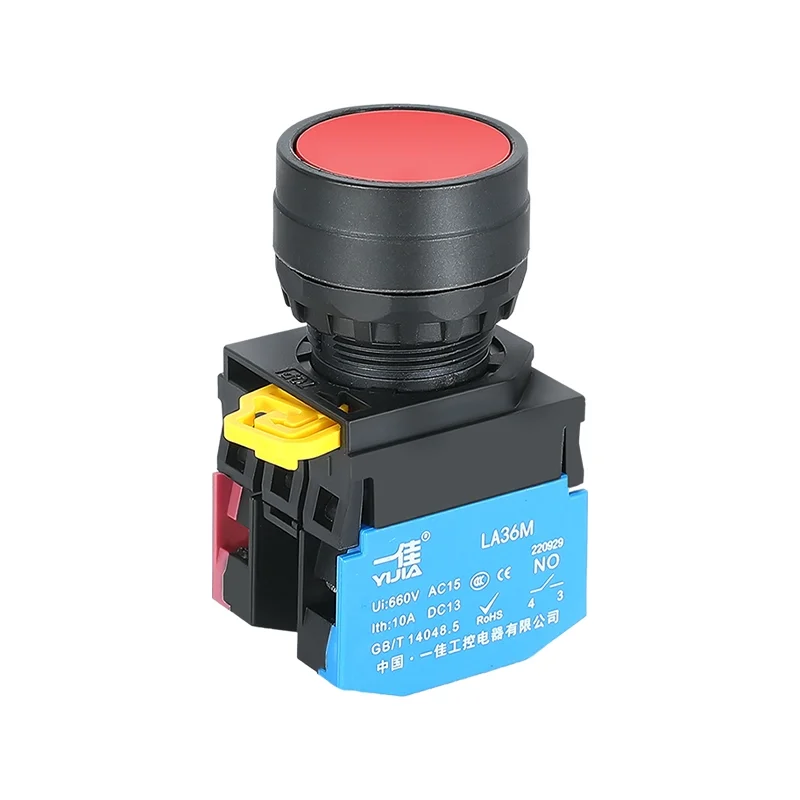

High Current Switch

High Current Switch is a type of plastic push button switch specifically designed to handle high current loads, with a maximum current capacity of 10A. It is mainly used to control the on-off of high-power electrical circuits, ensuring stable and safe operation in high-current application scenarios. Different from ordinary push button switches, the High Current Switch adopts special materials and structural design to withstand the impact of high current, avoid overheating or damage, and maintain long-term reliable operation.

Core Advantages & Selling Points

1. High-Quality Material Selection

The High Current Switch is made from high-quality engineering plastics, hard alloy contacts, and brass components. The engineering plastics ensure the switch has good insulation and impact resistance, the hard alloy contacts enhance conductivity and wear resistance, and the brass components improve the overall structural stability. These high-quality materials jointly ensure that the High Current Switch can operate stably under high-current conditions, reducing the risk of failure.

2. Excellent Current-Bearing Capacity

With innovative product design, the Yijia High Current Switch can support a current capacity of up to 10A, which is suitable for demanding electrical environments that require high-current switching. The reasonable structural design of the button and contacts ensures that the current is evenly distributed, avoiding local overheating, and effectively extending the service life of the High Current Switch.

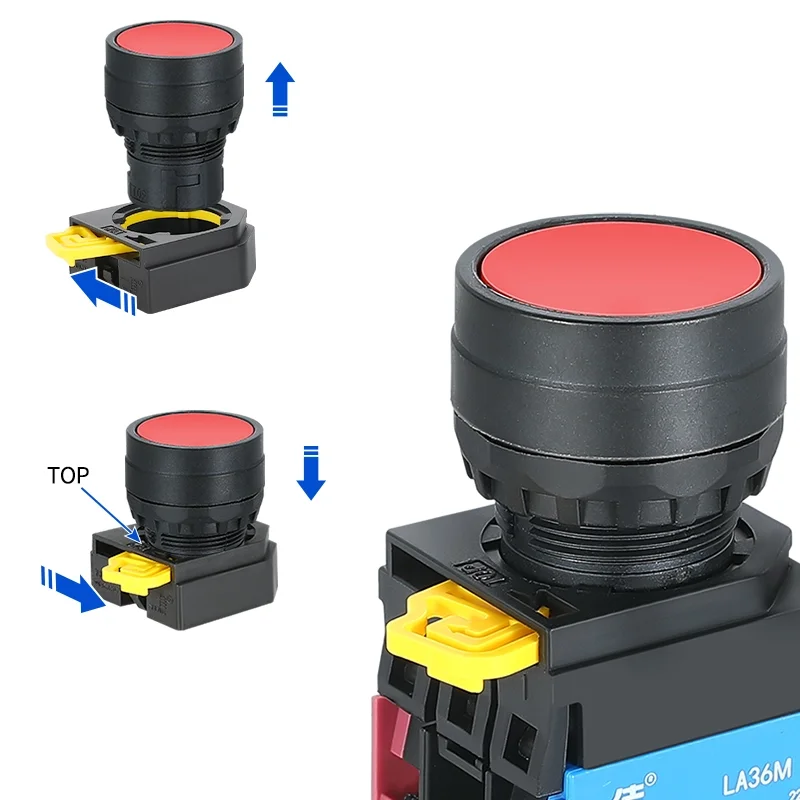

3. Modular Design for Convenience

The High Current Switch features a modular design, consisting of contact modules, button head modules, and connector board modules. This design allows for easy installation and removal, reducing the difficulty of maintenance and replacement. Additionally, the number of contact modules can be increased or decreased based on the specific needs of the application, making the High Current Switch flexible and adaptable to different usage scenarios.

4. Reliable Performance & Wide Compatibility

The High Current Switch undergoes strict quality control during the production process, with stable performance and strong anti-interference ability. It is compatible with various industrial electrical equipment and can be widely used in different high-current switching scenarios. The product has passed strict tests to ensure that it can work normally in harsh industrial environments such as high temperature, high humidity, and strong interference.

Technical Specifications

Application Fields

The High Current Switch is widely used in various industrial fields that require high-current switching, mainly including the following scenarios:

• Power Distribution Systems: Used to control the on-off of power distribution circuits, ensuring stable power supply and safe operation of the system.
• Industrial Machinery: Suitable for high-power industrial machinery such as machine tools, pumps, and fans, controlling the start and stop of the equipment.
• Heavy-Duty Control Panels: Applied in heavy-duty control panels of factories










  Features & Benefits

  ● 22mm mounting hole size

  ● Chrome-plated brass/stainless steel shell

  ● Up to 10A high current capacity

  ● 1NO1NC/2NO2NC/1NO contact structure

  ● High-quality silver alloy contact

  ● Lower contact resistance≤50mΩ

  ● 500,000 cycles long mechanical life

  ● 100,000 cycles long electrical life

  ● 50,000 hours high-brightness LED life

  ● IP65 protection level, IP67(customized)

  ● CCC,TUV,CE

  ● RoHS,Reach(customized)

  ● Best price and high performance

  ● China power push button switch with best price

  ● Support to OEM/ODM




  How to select the appropriate type of metal push button

  Please answer the following question, and send it to us, we will select the appropriate type for you.

  Question&Example

  ① the dimensions of push button to install: 16mm.

  ② the load current you need to control: 5A.

  ③ the type of head part: plat head without light.

  ④ choose the contact structure: 1NO1NC/2NO2NC

  ⑤ Operation mode: Momentary or Latching.

  ⑥ LED volt and color(if need led): DC 24V GREEN.

  ⑦ choose the materials of shell: Stainless steel or Brass clad chromium.

  ⑧ special request: waterproof, Custom symbol, need socket...
