Mushroom Button Switch

The mushroom button switch is a YIJIA uniquely designed classy button, characterized by its distinctive mushroom-shaped head, to increase the surface area of the button head for easy operation. The diameter of the mushroom button switch surface ranges from 22mm to 60mm and is typically red to allow operators to quickly identify it. Due to the button's special design, it is commonly used in emergency stop functions, E-stop switches, or momentary operation scenarios, especially in environments that require quick response.

The surface of mushroom button switch is available in a variety of colors, including red, green, yellow, blue, white, and black, to make it suitable for a wide range of application. Additionally, the mushroom head button can be equipped with an optional LED module, also have multi color to select, red, green, yellow, bule, white, and the illuminated button surface further enhances its visibility. This button is divided into momentary button and latching button, by the operation type.

YIJIA is the push button supplier that is based on Zhejiang, Chain. And the most parts for the button are produced by ourself. We have complete stamping, injection molding, and assembly production lines, enabling us to provide fast delivery and customized product services. YIJIA is the company that focused to offer best service and classy mushroom button switch.

View as

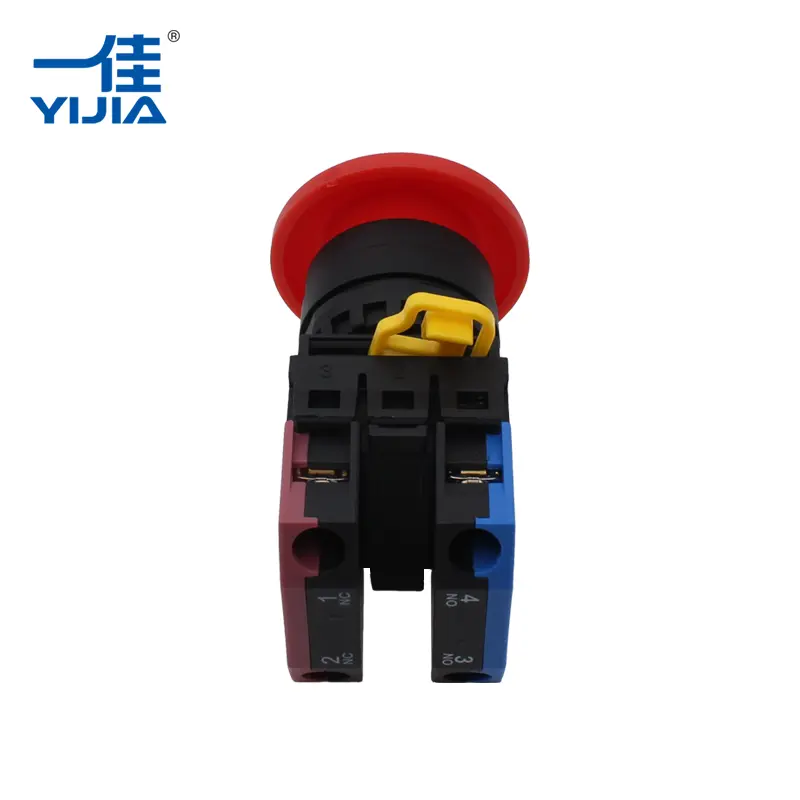

Mushroom Push Button

Mushroom push button is the 22mm installation dimension plastic push button with mushroom-shaped head. It is usual with round, large and domed shape head. The current capacity is up to 10A. Contact resistance is lower than 50mΩ. The contact structure can be customized by user's request, such as 1NO1NC, 2NO, 2NO2NO and so on. The wiring method is M3.5 screw with a square washer. IP rate is IP40, or customized to IP65. Easy-maintainable and easy-installation mushroom push button.

View More >> Send Inquiry >>

Mushroom Type Colour Metal Push Button Switch

The mushroom type colour metal push button switch is a robust and highly durable control switch, widely used in industrial and machinery applications for safety and operational control. Characterized by its distinctive mushroom-shaped head, and the colour of head has multi option, this button provides quick and reliable actuation, ensuring immediate response in critical situations. Constructed from high-quality metal, it offers excellent resistance to mechanical wear, corrosion, and harsh environmental conditions. With a standard 19mm installation aperture, this button is compatible with diverse application requirements.

View More >> Send Inquiry >>

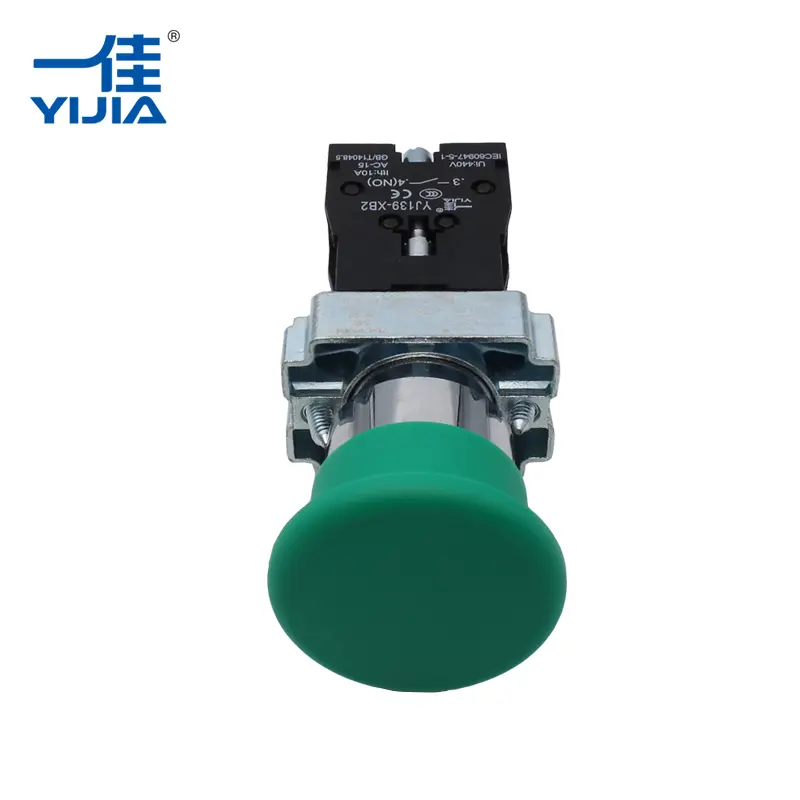

Mushroom Head Push Button

Mushroom head push button is the 22mm installation dimension XB2 series push button with mushroom-shaped head. It is commonly used in automation system, machinery and power industry. It is combined with contact blocks, actuators and light modules, with modular design to easily assemble. Customer can choose the contact blocks according to the request. The wiring method is M3.5 screw with a square washer. IP rate is IP43, or customized to IP65.

View More >> Send Inquiry >>

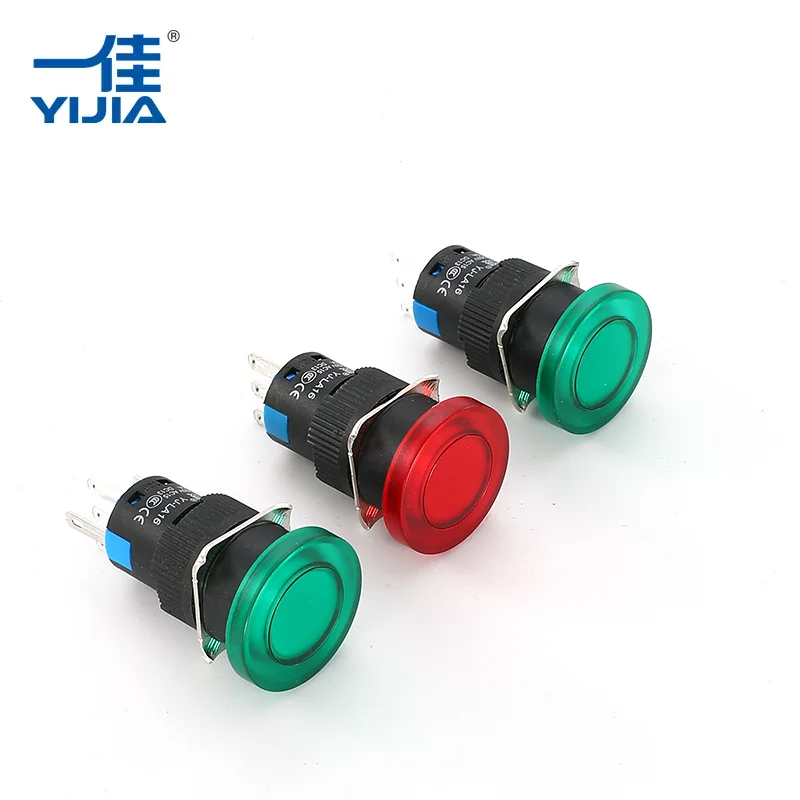

Illuminated Mushroom Head Push Button

The illuminated mushroom head push button is a highly visible and ergonomic control device designed for operator safety, emergency stops, and machine control in industrial and automation applications. Its distinctive large, mushroom-shaped actuator ensures quick and reliable operation, even in high-stress or emergency scenarios. Constructed with a durable metal or high-strength plastic housing, this push button integrates an integrated LED or lamp (available in multiple colors, e.g., red for emergency stops, green for start, yellow for warnings) to provide clear visual status feedback. The illumination enhances visibility in low-light conditions and confirms switch activation.

View More >> Send Inquiry >>

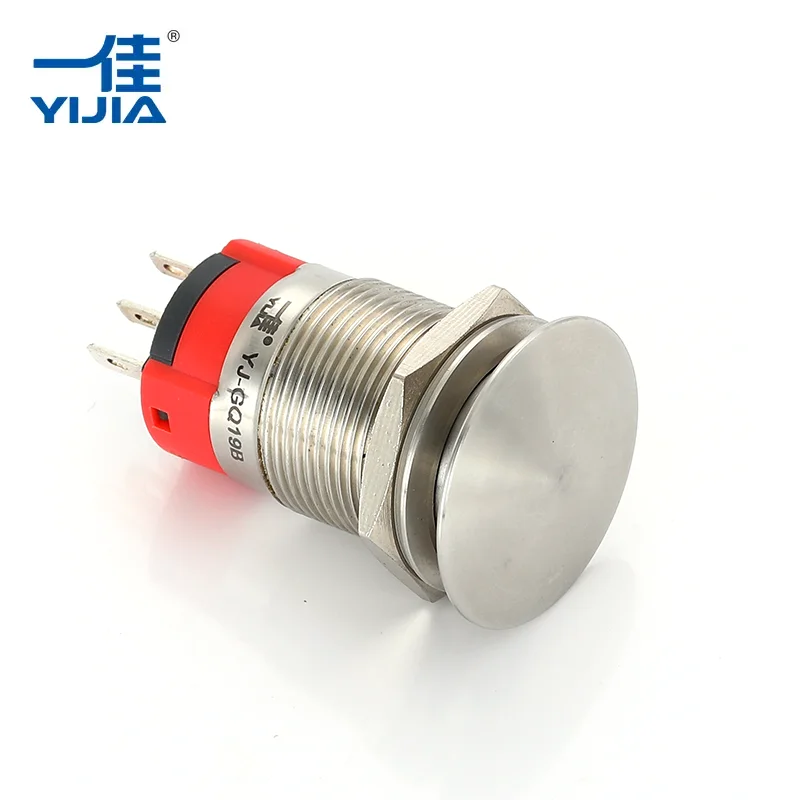

Metal Mushroom Button Switch

The Metal Mushroom Button Switch is a robust and highly durable control switch, widely used in industrial and machinery applications for safety and operational control. Characterized by its distinctive mushroom-shaped head, this button provides quick and reliable actuation, ensuring immediate response in critical situations. Constructed from high-quality metal (such as stainless steel), it offers excellent resistance to mechanical wear, corrosion, and harsh environmental conditions. With a standard 19mm installation aperture, this button is compatible with diverse application requirements.

View More >> Send Inquiry >>

As a reliable Mushroom Button Switch manufacturer and supplier in China, we have our factory. If you want to buy quality and durable products, please contact us.
