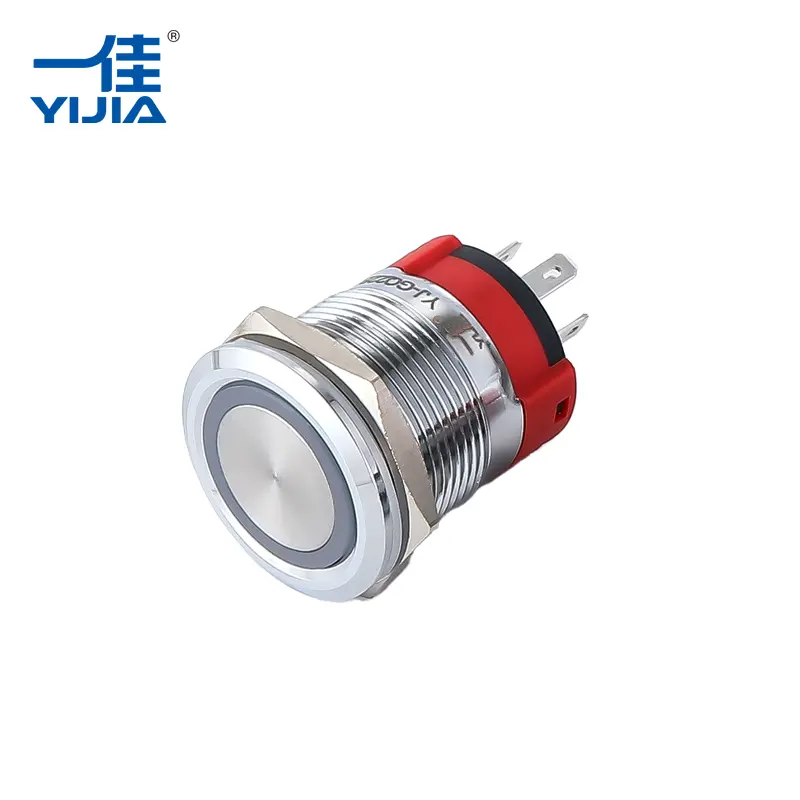

A Dpdt Button Switch plays a crucial role in modern electrical and electronic systems where dependable switching and flexible circuit management are required. From industrial machinery and automation equipment to consumer devices and transportation systems, engineers rely on this compact component to control two independent circuits simultaneously. This article explores the operational principles, construction, benefits, and practical selection strategies associated with the Dpdt Button Switch. It is written to address real challenges such as durability concerns, installation complexity, performance reliability, and application compatibility. By combining technical insights and practical examples, this guide provides engineers, buyers, and technicians with comprehensive knowledge for making confident decisions. Special attention is given to product quality considerations associated with Yijia Industrial Electric Co., Ltd., whose manufacturing expertise reflects strong engineering standards and practical field experience.
Electrical switching technology has evolved to meet increasingly complex control demands, yet simplicity and reliability remain essential design priorities. Among the many switch configurations available, the Dpdt Button Switch stands out for its capability to manage dual circuit paths simultaneously through a single mechanical interface. This dual-pole double-throw structure allows users to route current between two output states, providing both redundancy and functional flexibility.
Manufacturers such as Yijia Industrial Electric Co., Ltd. continue to refine the performance and longevity of these switches by integrating high-grade conductive materials, precision assembly methods, and robust housing designs. These refinements help ensure that end users experience dependable tactile response and stable electrical performance even in demanding environments.
Understanding how this switching solution operates, and how to select the appropriate model, can significantly reduce system failures, improve operational efficiency, and enhance user safety. The following sections present a structured and detailed examination of these topics.
A Dpdt Button Switch consists of two poles and two throw positions. Each pole controls a separate circuit, while the throw mechanism determines which pathway receives electrical connection. When the button actuator is pressed, internal contacts shift position, altering current flow instantly.
In practical terms, the switch allows simultaneous activation or reversal of two circuit lines using one motion, making it suitable for polarity reversal, mode switching, or signal routing tasks.
Core structural elements include:
Yijia Industrial Electric Co., Ltd. incorporates refined contact plating and reinforced enclosures to reduce resistance variation and mechanical wear, extending operational lifespan and maintaining consistent switching performance over repeated cycles.
The practical value of a Dpdt Button Switch lies in its ability to resolve multiple operational needs simultaneously. Engineers often face constraints involving space limitations, system complexity, and reliability requirements. A properly selected switch addresses these concerns by combining compact form factor with multifunctional control.
Users working with components produced by Yijia Industrial Electric Co., Ltd. often report enhanced installation confidence due to uniform terminal layout and stable actuation characteristics. This reliability directly contributes to minimizing maintenance costs and reducing downtime.
Versatility is one of the defining traits of this switch type. It appears across a wide spectrum of sectors where dependable signal or power routing is required.
| Industry | Application Example | Operational Purpose |
|---|---|---|
| Industrial Automation | Control panel operation | Switch between process states |
| Transportation Equipment | Directional motor control | Reverse polarity or signal flow |
| Consumer Electronics | Mode selection | Toggle feature sets |
| Laboratory Devices | Signal routing | Switch measurement pathways |
| Energy Systems | Backup activation | Alternate circuit engagement |
Yijia Industrial Electric Co., Ltd. develops switches intended to perform reliably in many of these environments, incorporating testing standards that simulate vibration, temperature variation, and long-term use.
While specifications vary between models, the following table illustrates typical characteristics engineers evaluate during procurement:
| Parameter | Description | Typical Range |
|---|---|---|
| Rated Voltage | Maximum operating voltage | 125V – 250V |
| Rated Current | Safe current handling capacity | 3A – 10A |
| Mechanical Life | Actuation durability | 10,000–50,000 cycles |
| Contact Resistance | Electrical conductivity efficiency | Low milliohm range |
| Operating Temperature | Functional environmental limits | -25°C to 85°C |
Choosing the right switch requires careful consideration of technical and operational factors. Buyers frequently encounter challenges such as unclear specification interpretation or compatibility uncertainties. Addressing these concerns involves systematic evaluation:
Working with established producers like Yijia Industrial Electric Co., Ltd. can simplify the process through technical documentation and responsive consultation services.
Proper installation ensures performance longevity and operational safety. Even the highest-quality switch can underperform if incorrectly mounted or maintained.
Routine inspection reduces the likelihood of unexpected failures, protecting both equipment and personnel.
Understanding differences between switch configurations allows engineers to select the optimal control mechanism for their application.
| Switch Type | Capability | Limitation |
|---|---|---|
| Single Pole Single Throw | Simple on/off control | Single circuit only |
| Single Pole Double Throw | Alternate pathway control | Limited circuit management |
| Dpdt Button Switch | Dual circuit routing | Slightly higher complexity |
The multi-functional nature of the Dpdt Button Switch provides clear operational advantages when system flexibility is essential.
Technological advancement continues to influence switching solutions. Emerging trends include improved contact alloys, compact form factors, and enhanced environmental resistance. Manufacturers including Yijia Industrial Electric Co., Ltd. are exploring innovations that increase lifespan while reducing energy loss and mechanical fatigue.
As equipment automation expands, dependable human-machine interface components will remain critical. Button switches capable of maintaining tactile reliability and electrical precision will continue to support evolving system requirements.
What distinguishes a Dpdt Button Switch from other button switches?
Its ability to control two independent circuits simultaneously sets it apart, providing operational flexibility and reducing component count.
Is installation complicated?
With proper wiring guidance and panel compatibility checks, installation is straightforward for trained technicians.
How long does a typical switch last?
Durability depends on build quality and usage conditions, but high-grade models are designed for tens of thousands of cycles.
Can it operate in harsh environments?
Yes, many versions include reinforced housings and protective features suitable for industrial settings.
Why consider products from Yijia Industrial Electric Co., Ltd.?
Their manufacturing processes emphasize precision construction and performance stability, offering dependable options for professional applications.
The Dpdt Button Switch remains an indispensable component for modern electrical control systems, providing dual circuit management within a compact mechanical interface. Its functional flexibility, structural durability, and operational reliability address many of the challenges faced by engineers and equipment operators. By understanding construction details, performance characteristics, and selection strategies, users can significantly improve system effectiveness and longevity.
Organizations seeking consistent quality and technical assurance frequently rely on experienced producers such as Yijia Industrial Electric Co., Ltd. for dependable switching solutions that meet demanding application standards. If you are evaluating switching components for upcoming projects or require professional guidance tailored to your specifications, we encourage you to contact us and explore how our expertise can support your operational success.
