22mm Touch Push Button Switch

1. Product Definition

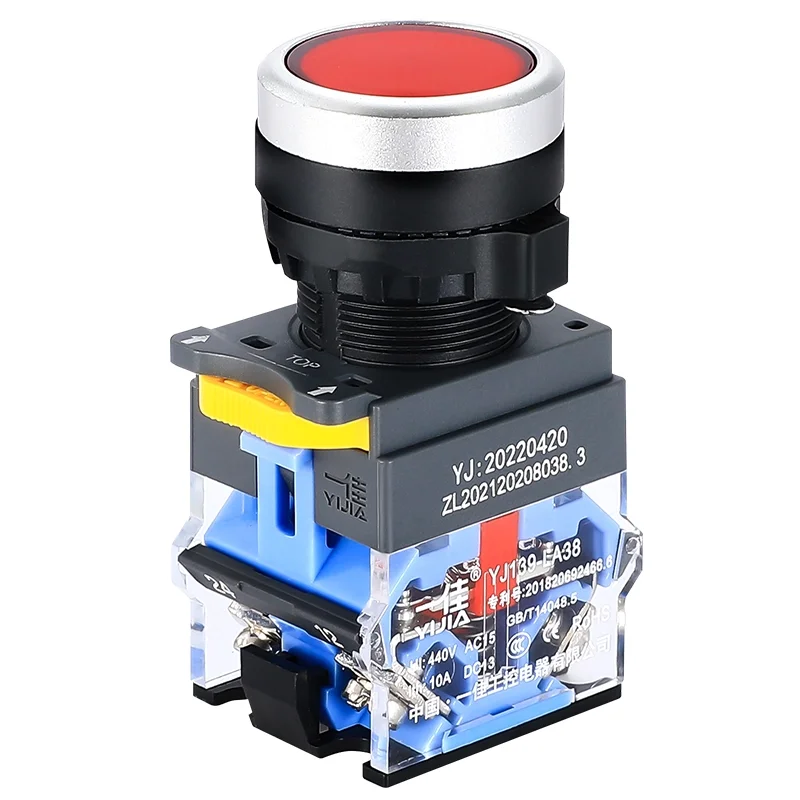

Yijia 22mm Touch Push Button Switch is an industrial-grade push button designed for a 22mm standard mounting hole and triggered by touch signals. It belongs to the category of control devices, enabling the opening and closing of circuits through touch operation, which allows equipment start/stop control, signal switching, and other control functions. Its core purpose is to provide manual touch control signals for industrial control circuits, compatible with electrical components such as contactors and relays, ensuring precise operation of equipment. It is widely used in various industrial automation devices and control scenarios.

2. Core Functions

• Touch Activation: Features a sensitive touch design; a light touch is enough to turn the circuit on or off. Compared to traditional mechanical buttons, the touch response is faster and reduces operational wear.
• Modular Configuration: Supports flexible addition or removal of contact modules, allowing combinations like 1NO1NC, 2NO2NC, or 1NO to meet different circuit control requirements. Maintenance and upgrades are convenient.
• Status Indication (Optional): Certain models include high-brightness LEDs to visually display the switch status (powered on/off), improving device management and reducing operational errors.
• Dust and Water Protection: Rated IP65 for dust and water resistance, suitable for complex industrial environments. Some models can be customized to IP67 for more demanding applications.

Core Advantages and Selling Points

1. Structural Design Advantage

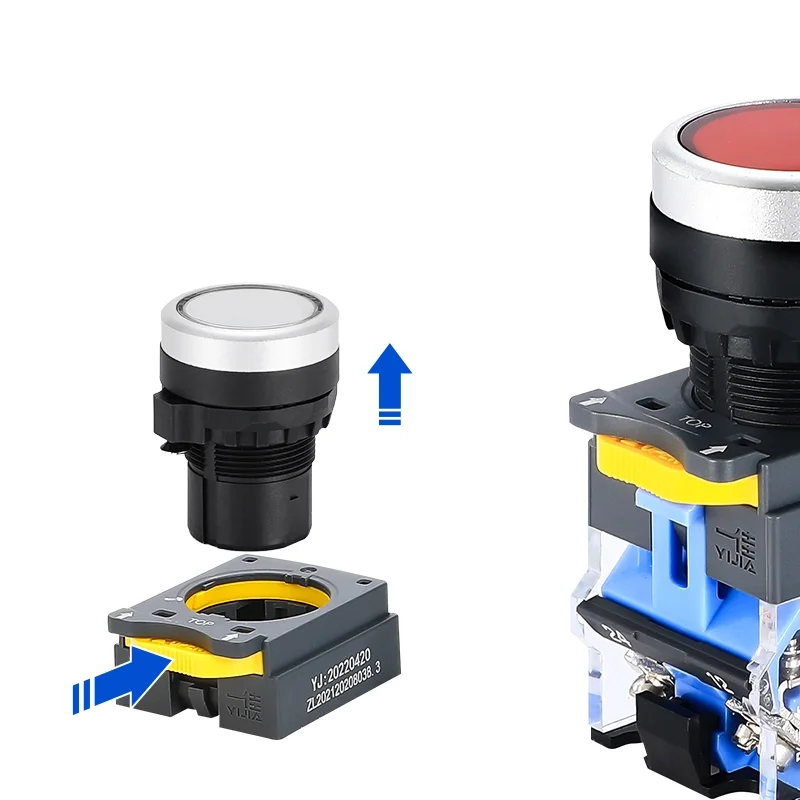

Yijia 22mm Touch Push Button Switch features an innovative design for quick and easy installation and replacement, requiring no complex tools, allowing a single person to operate. The modular contact design enables easy removal and replacement without professional skills, reducing maintenance costs. It supports multiple contact specifications, adapting to varied customer requirements. Compared to competitors’ fixed contact designs, this switch offers greater flexibility.

2. Material and Performance Advantage

The housing is made of high-quality engineering plastics, offering wear resistance, high-temperature resistance, and impact resistance, suitable for long-term industrial use. Contacts are made of silver alloy with contact resistance ≤50mΩ, providing excellent conductivity, reducing contact wear, and extending service life. Metal parts are made of brass and precisely processed to improve stability and durability. Compared to some competitors using ordinary copper contacts or plastic housings, Yijia 22mm Touch Push Button Switch is more reliable in conductivity and longevity.

3. Compatibility Advantage

This 22mm Touch Push Button Switch fits mounting holes from 12mm to 30mm (core design for 22mm) and is compatible with most industrial control equipment without modifying the installation hole, reducing user costs. It supports a wide voltage and high current (up to 18A), suitable for various power devices across industrial control, machinery, and automation. Its adaptability exceeds many competitors’ single-specification products.

4. Cost-Performance Advantage

As a core product manufactured by Yijia’s own factory, the 22mm Touch Push Button Switch eliminates intermediaries and directly connects to customers. This ensures high quality while offering competitive pricing. The product has multiple international certifications, meeting quality standards. Compared to imported brands, it is more cost-effective, and compared to small domestic suppliers, it provides more reliable quality, balancing performance and price.

Application Areas and Practical Cases

1. Core Application Areas

Thanks to its stable performance and broad compatibility, Yijia 22mm Touch Push Button Switch is mainly applied in the following areas as a key control component:

• Industrial Control Systems: Used in control panels and boxes for signal activation and circuit control, enabling equipment start/stop, mode switching, and other functions in various industrial scenarios.
• Machinery and Automation Equipment: Such as machine tools, assembly lines, and automated production lines, allowing precise control for improved production efficiency.
• Distribution Panels: Acts as a control element in power distribution systems for circuit switching and status indication, ensuring electrical safety.
• Material Handling and Logistics Systems: Including conveyors, cranes, and similar equipment, enabling touch control for equipment start/stop and operation in logistics and warehouse settings.
• Other Fields: Can also be used in instruments, security devices, and new energy equipment, meeting diverse control requirements.

Certifications and Quality Assurance

1. Product Certification

All Yijia 22mm Touch Push Button Switch products undergo strict quality inspections and hold multiple domestic and international certifications to meet varying customer procurement standards:

• Quality Management Certification: ISO9001-certified, ensuring quality control across production, inspection, and after-sales processes.
• Product Certification: Certified by CCC, CE, and TUV, compliant with IEC standards. RoHS and REACH certifications can be customized according to customer requirements for environmental compliance.

2. Quality Control Process

Yijia maintains advanced production equipment and modern management systems, implementing full-process quality control from raw material procurement to product shipment:

1. Raw Material Procurement: Carefully selected engineering plastics, silver alloys, and brass are tested batch by batch before use.
2. Production Control: Automated production lines monitor assembly, contact welding, and touch performance in real time, ensuring adherence to quality standards.
3. Finished Product Testing: Each 22mm Touch Push Button Switch undergoes mechanical, electrical, and protective performance tests before leaving the factory. Non-compliant products are not shipped.
4. After-Sales Sampling: A random sampling system for sold products identifies and addresses potential quality issues, continuously optimizing product quality.

Packaging and Shipping

1. Packaging Standards

Yijia 22mm Touch Push Button Switch uses standardized packaging to prevent damage during transit:

• Single Product: Anti-static bag packaging to prevent electrostatic damage to electronic components.
• Bulk Packaging: Cardboard boxes with foam cushioning. Each box quantity can be customized (typically 100/200 units per box), with product model, quantity, and brand labeled for easy storage and inventory management.
• Customized Packaging: Customer-specific logo and packaging specifications are available for personalized procurement needs.

2. Shipping Instructions

• Shipping Time: Regular orders ship within 48 hours after payment. Bulk orders (1000+ units) ship within 7–10 working days depending on production schedules. Custom products’ lead times are negotiated separately.
• Logistics Options: Standard delivery via Yunda or Zhongtong express; free shipping for orders over 2000 RMB. Express options (SF Express) are available for urgent shipments, with freight on delivery. Large bulk orders ship via logistics companies with freight on delivery, customer pickup required.
• Receiving Instructions: Upon receiving products, customers should check the packaging integrity before signing. Damaged packaging or products should be refused and reported to customer service for prompt resolution.

Customized Service Content

Yijia supports OEM/ODM customization services. Based on specific customer requirements, various parameters and functions of the 22mm Touch Push Button Switch can be tailored. The customization options include:

Structural Customization: Adjust contact configuration, mounting methods, and other structural elements to match specific equipment installation requirements.

Material Customization: Housing materials such as stainless steel or chrome-plated brass can be customized to meet different appearance and performance requirements.

Function Customization: Options include LED color, status indication modes, and protection levels (such as IP67), suitable for different application scenarios.

Appearance Customization: Customer logos, text, or symbols can be added to the product housing to enhance brand recognition.

FAQ

Q1: What mounting hole sizes are compatible with the Yijia 22mm Touch Push Button Switch?

A1: The product is primarily designed for a 22mm mounting hole, while also supporting multiple sizes including 12mm, 16mm, 19mm, 25mm, and 30mm. It can be flexibly selected according to equipment requirements without modifying the installation hole.

Q2: How sensitive is the touch function? Is accidental triggering an issue?

A2: The product uses a high-precision touch design with balanced sensitivity, effectively preventing accidental activation. It also has strong anti-interference capability, making it suitable for complex industrial electromagnetic environments and ensuring accurate operation.

Q3: What LED colors are available? What is the lifespan?

A3: Available LED colors include red, blue, green, yellow, and white. Customers can choose based on their needs. The LED lifespan can reach up to 50,000 hours, offering high brightness and low energy consumption for long-term stable use.

Q4: Are there discounts for bulk purchases? What is the minimum order quantity?

A4: Bulk purchases come with corresponding discounts depending on the quantity. For details, please contact customer service. The minimum order quantity is 100 units, while customized products require separate negotiation.

Q5: Does the product support export? Can certification documents be provided?

A5: Yes, the product supports export and can provide certification documents such as CCC, CE, TUV, and RoHS to meet import requirements of different countries and regions. Additional certifications like REACH can also be customized upon request.
