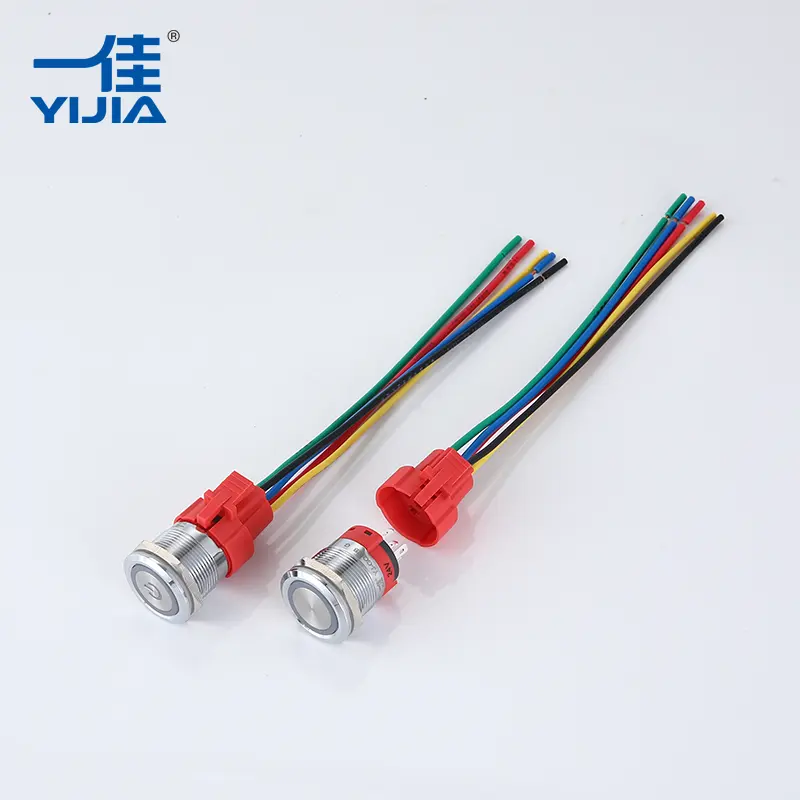

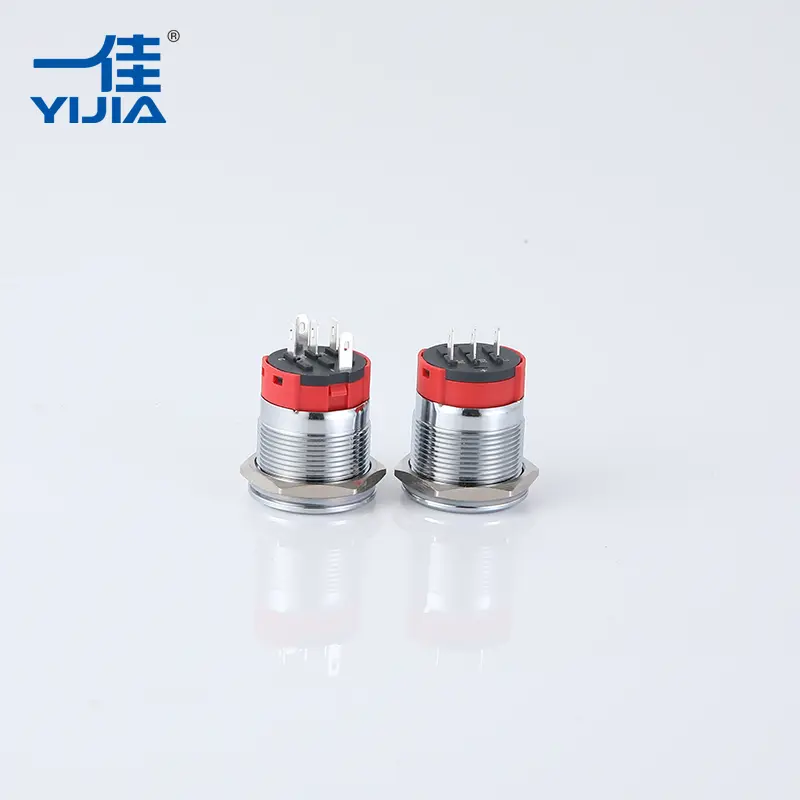

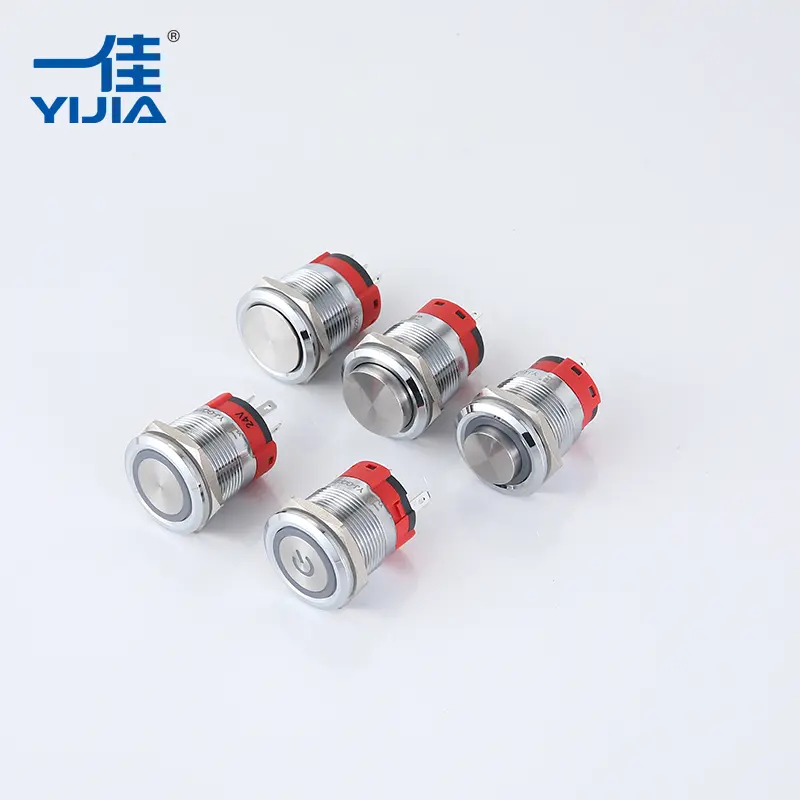

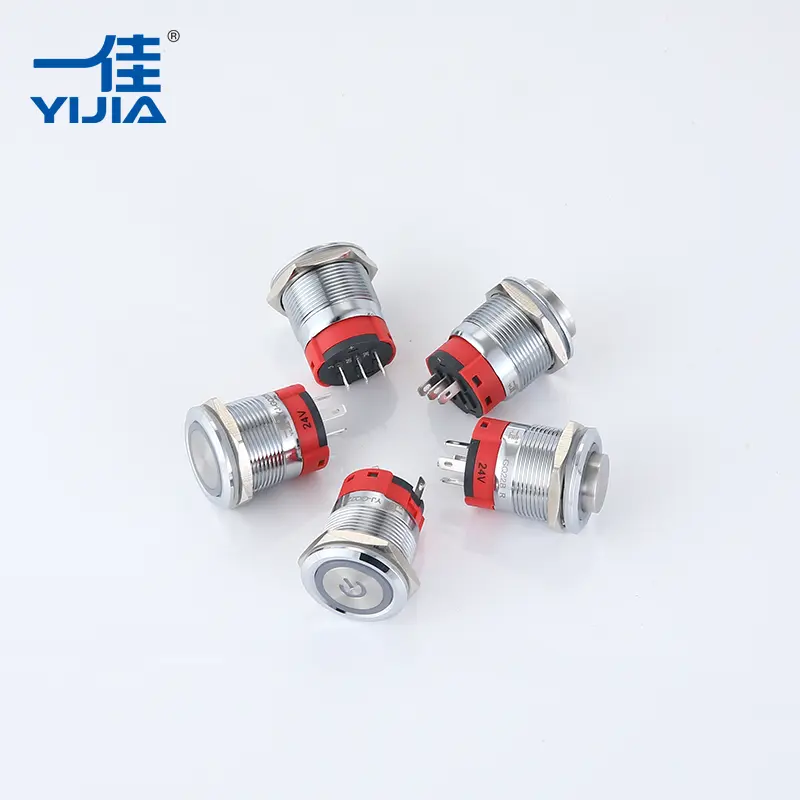

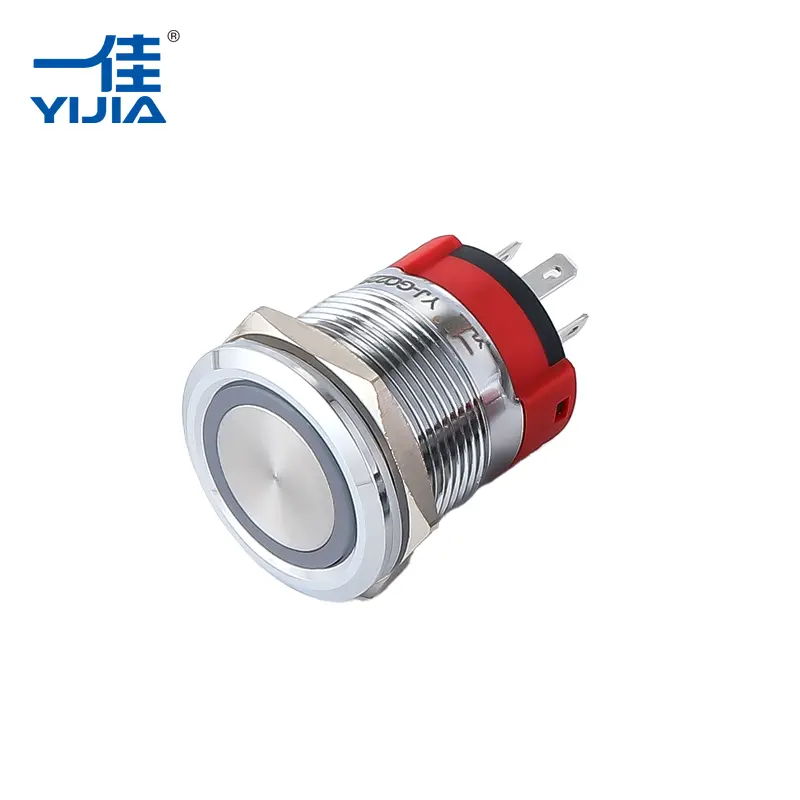

Dpdt Button Switch

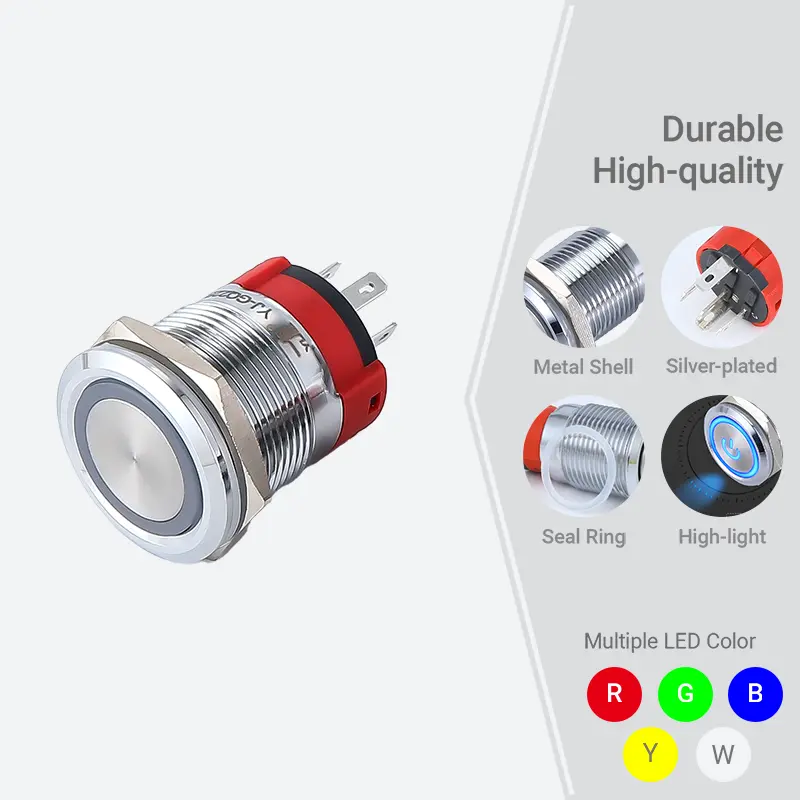

The DPDT Button Switch from Yijia Industrial Electrical Co., Ltd. is crafted with high-quality engineering plastic and metal components for long-lasting performance. With high-quality silver alloy contacts, it offers low electrical resistance (<50mΩ) and can handle currents up to 5A. The switch is available with optional high-bright LEDs in red, green, yellow, blue, white, and dual-color, allowing for clear visual status indication. Its two independent contact structures make controlling two circuits convenient and reliable.

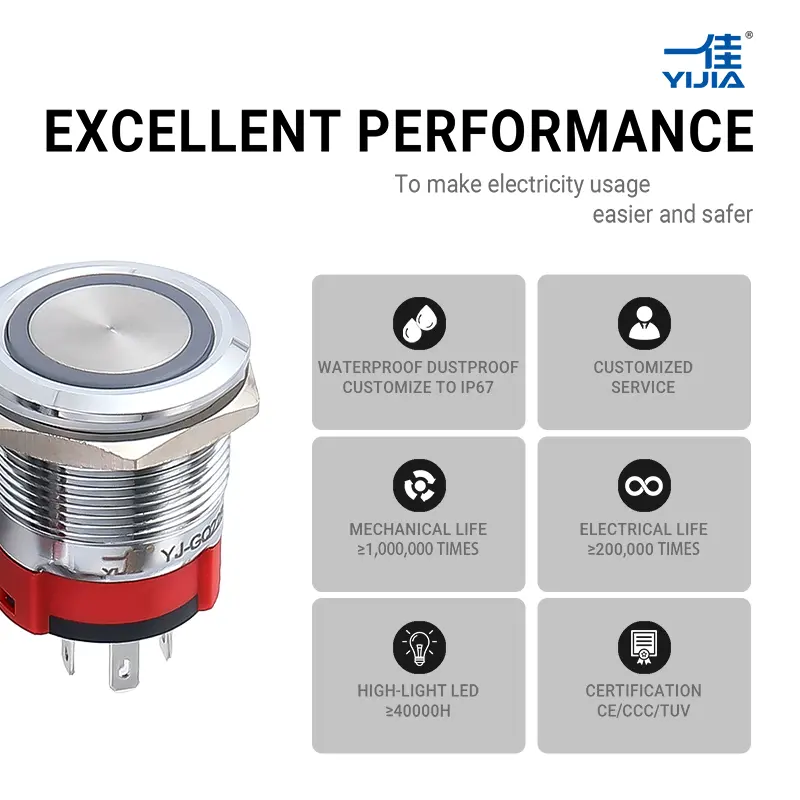

Key Features & Benefits

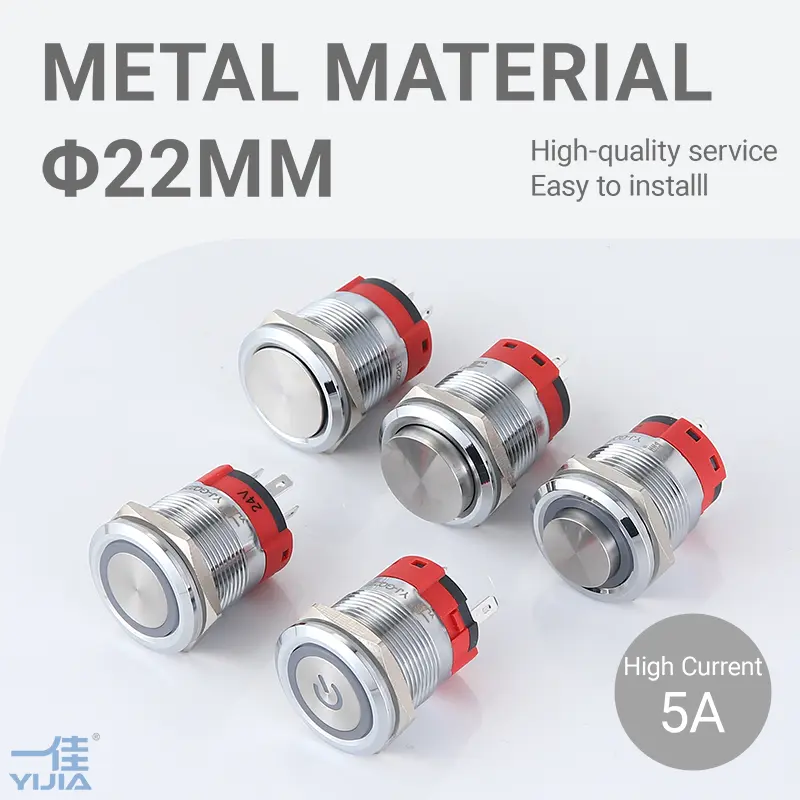

• 19mm / 22mm / 25mm mounting hole sizes
• Chrome-plated brass or stainless steel shell
• 2NO2NC contact structure for dual circuit control
• High-quality silver alloy contacts with resistance ≤50mΩ
• Long mechanical life: 1,000,000 cycles
• Long electrical life: 200,000 cycles
• Optional high-bright LED with 50,000 hours lifespan
• IP65 protection, customizable to IP67
• Certifications: CCC, TUV, CE, RoHS, REACH (customized)

Technical Specifications

Applications

The DPDT Button Switch is widely used in industrial control and mechanical operation applications. Typical uses include control panels, distribution cabinets, instrument boxes, console boxes, and other electrical control systems that require simultaneous control of two circuits.

Advantages Compared to SPDT Switch

Unlike a standard SPDT switch, the DPDT Button Switch allows independent control of two circuits at once, reducing wiring complexity and improving operational efficiency. Optional LED indicators also provide immediate visual feedback, which is particularly useful in industrial environments.

FAQ

• Q: Can I customize the LED color and voltage?
  A: Yes, LEDs are optional and available in multiple colors and voltages, such as DC 24V green or red.
• Q: What is the maximum current load?
  A: Standard DPDT Button Switch supports 5A. Custom options can handle higher currents upon request.
• Q: Is it waterproof?
  A: IP65 is standard; IP67 customization is available for enhanced protection.

About Yijia Industrial Electrical Co., Ltd.

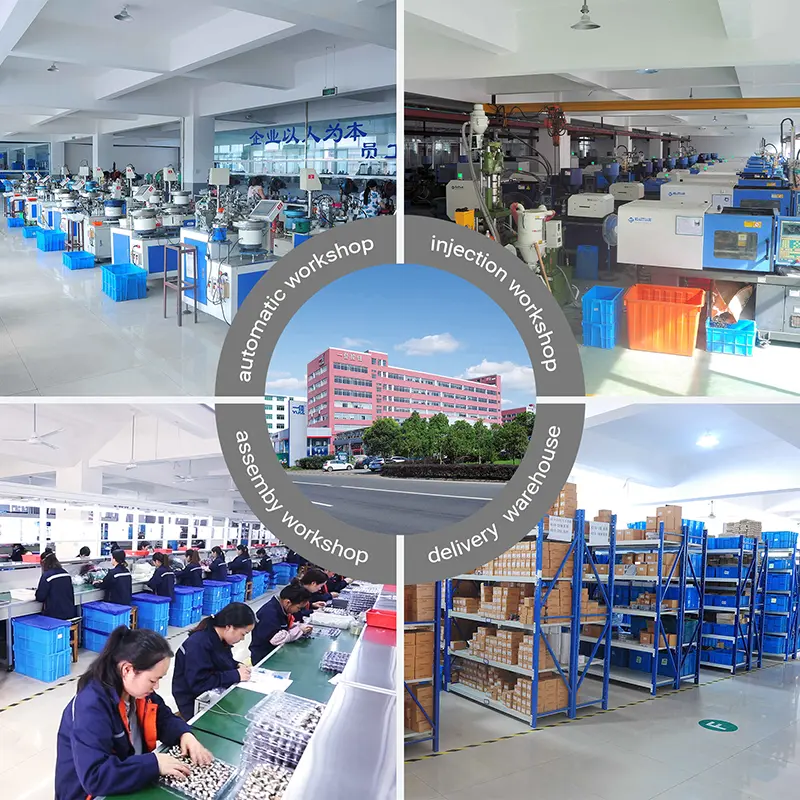

Yijia Industrial Electrical Co., Ltd., a professional China manufacturer, specializes in relays, AC contactors, push button switches, and signal lamps. With years of experience in industrial electrical components, the company has advanced production facilities and management systems, holding certifications like ISO9001, CCC, CE, and RoHS. Their products are trusted globally for reliability and quality in industrial control applications.

Features & Benefits

● 19mm/22mm/25mm multi mounting hole size

● Chrome-plated brass/stainless steel shell

● 5A current capacity

● 2NO2NC contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 1,000,000 cycles long mechanical life

● 200,000 cycles long electrical life

● 50,000 hours high-brightness LED life

● IP65 protection level, customize to IP67

● CCC,TUV,CE

● RoHS,Reach(customized)

● Best price and high performance

● Support to offer free sample

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

① the dimensions of push button to install: 16mm.

② the load current you need to control: 7A.

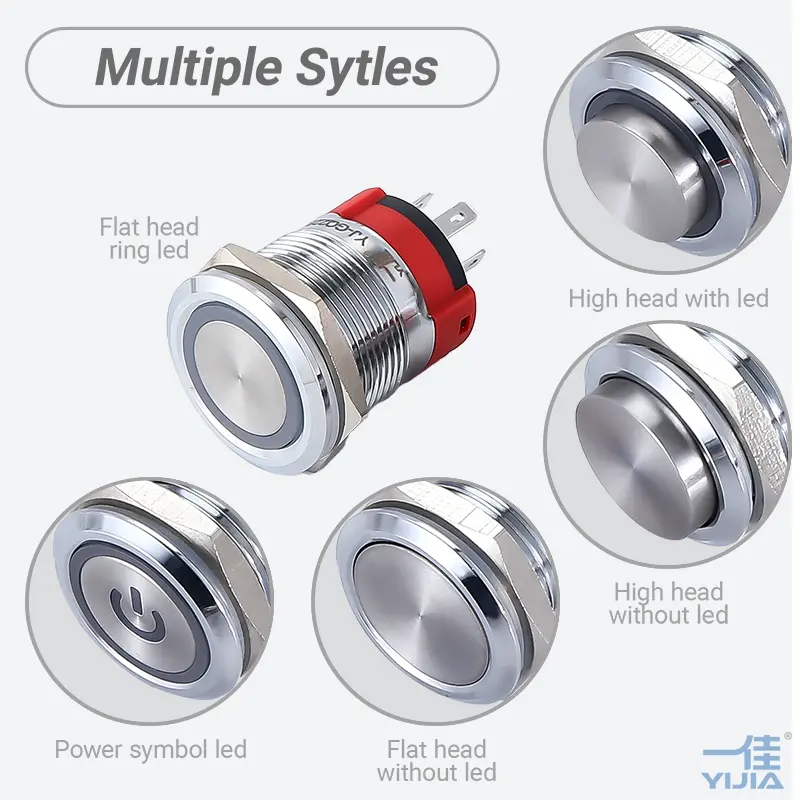

③ the type of head part: plat head without light.

④ choose the contact structure: 1NO/1NC/1NO1NC/2NO.

⑤ Operation mode: Momentary or Latching.

⑥ LED volt and color(if need led): DC 24V GREEN.

⑦ choose the materials of shell: Stainless steel or Brass clad chromium.

⑧ special request: waterproof, Custom symbol, need socket...
