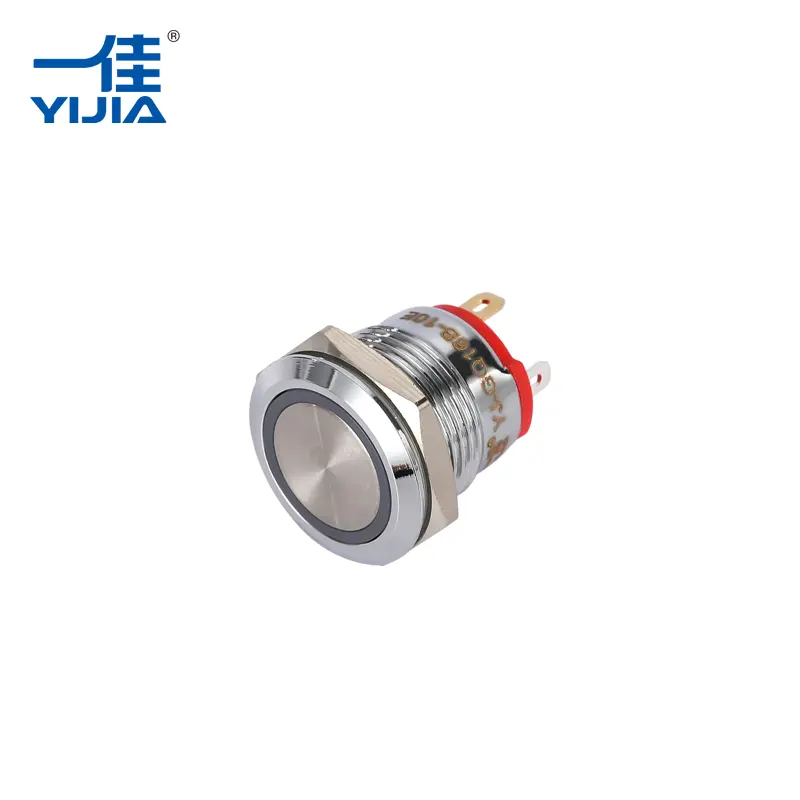

Metal Momentary Push Buttons are common momentary push-button switches in industrial control. When a user presses the button, the circuit is connected; when released, the circuit returns to its original state. Therefore, they are often used for equipment start signals, system triggers, or control command inputs.
In many electrical control systems, Yijia Metal Momentary Push Buttons are used in conjunction with controllers or relays to achieve functions such as power start, equipment control, or signal input. If equipped with LED indicators, the button's pressed state can be indicated by light changes, facilitating on-site assessment by operators.
As a standard product of Yijia Industrial Electrical Co., Ltd., a push button switch factory in China, these buttons are widely used in industrial control cabinets, mechanical equipment panels, and electrical equipment.
Product Structure and Design Features
Metal Housing Structure
The Metal Momentary Push Button features a metal housing design. Common materials include:
Metal provides good durability in industrial environments and facilitates long-term installation on device panels.
Power Symbol Design
The top of the button can feature a common power symbol.
The symbol structure is formed through a stamping process, making the button more visually clear and easy for users to identify the power control location.
LED Indicator System
Some Yijia Metal Momentary Push Buttons can be configured with LEDs to indicate the device's operating status using different colors, such as:
Core Product Features
Multiple Mounting Hole Sizes
Supports various device panel mounting sizes, suitable for different control devices:
12mm/16mm/19mm/22mm/25mm/30mm
High Current Design
The Metal Momentary Push Button supports a maximum current load of 18A, suitable for various electrical control environments.
Multi-Contact Structure
Different contact types can be selected according to control requirements:
Silver Alloy Contacts
The contacts are made of silver alloy material, reducing contact resistance and improving conductivity stability.
Protection Rating
Standard protection rating:
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Metal Momentary Push Button |
| Brand | Yijia |
| Mounting Hole | 12mm / 16mm / 19mm / 22mm / 25mm / 30mm |
| Shell Material | Stainless Steel / Chrome-plated Brass |
| Contact Type | 1NO / 1NO1NC / 2NO2NC |
| Rated Current | Up to 18A |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤50mΩ |
| Mechanical Life | 500,000 cycles |
| Electrical Life | 100,000 cycles |
| LED Life | 50,000 hours |
| LED Color | Red / Blue / Green / Yellow / White |
| Protection Level | IP65 (IP67 optional) |
FAQ
What is the difference between a Metal Momentary Push Button and a Latching Push Button?
A Momentary Push Button is pressed to turn on and released to turn off;
A Latching Push Button is pressed to lock and pressed again to return to its original position.
Can the LED voltage be customized?
Yes, different voltages can be selected according to equipment requirements, such as DC12V, DC24V, etc.
Do you support bulk purchases?
Yijia supports OEM/ODM orders and can provide bulk supply according to customer equipment requirements.
Can the product be used in outdoor equipment?
If the equipment requires waterproofing, IP65 or IP67 protection versions can be selected.
