Why Is the 30mm Push Button Switch Still the King of Industrial Control?

2026-03-03 0 Leave me a message

The 30mm push button switch remains the go-to choice for heavy-duty environments—from automotive assembly lines to food processing plants. This guide answers top questions about its construction, compares it to 22mm alternatives, and reveals why brands like Yijia Industrial Electric Co., Ltd. continue to innovate in this format. You’ll learn about IP ratings, momentary vs. maintained actions, and real-world pros and cons.

📋 Quick Navigation

What Exactly Is a 30mm Push Button Switch?
30mm vs. 22mm Push Button: Which One Is Better?
What Are the Key Advantages of 30mm Push Button Switches?
Are There Any Hidden Drawbacks of 30mm Switches?
Which Industries Rely Most on 30mm Push Button Switches?
Momentary vs. Latching: How Do They Affect Operation?
How to Select the Right IP Rating for Your 30mm Switch?
Frequently Asked Questions About 30mm Push Button Switches

🔍 What Exactly Is a 30mm Push Button Switch?

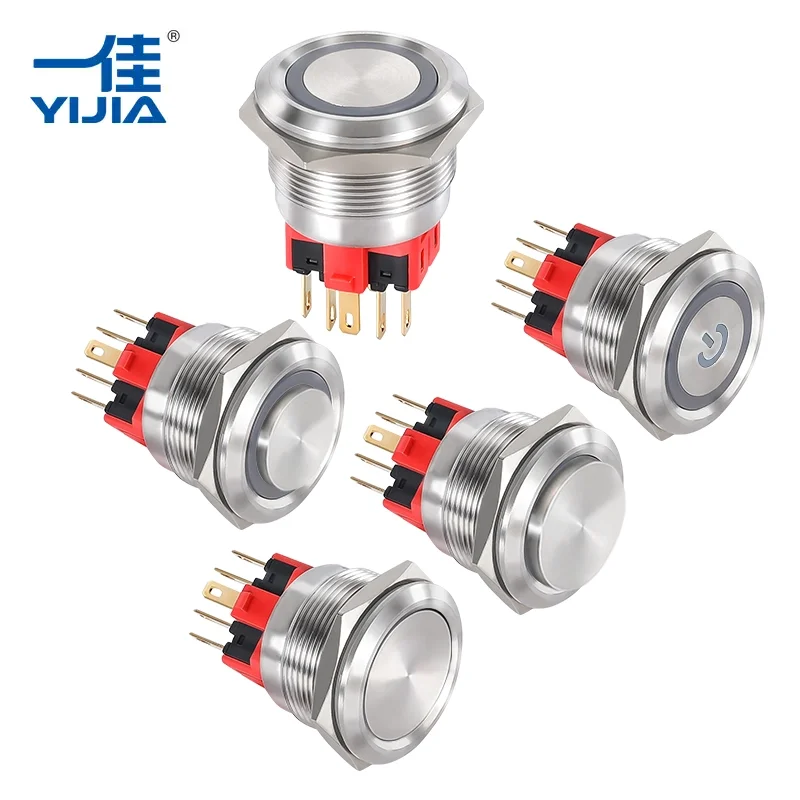

A 30mm push button switch refers to the diameter of the mounting hole (30.5 mm typically) and the operator size. It is a rugged, electromechanical device used to control circuits in industrial machinery. Unlike smaller switches, the 30mm format is built to tolerate gloved hands, vibration, and contaminants. Units from manufacturers like Yijia Industrial Electric Co., Ltd. often feature stainless steel actuators, LED illumination options, and contact blocks with up to 10A rating [citation:1]. They can be momentary (spring-return) or maintained (push-on/push-off).

⚖️ 30mm vs. 22mm Push Button: Which One Is Better?

This is a classic debate on the plant floor [citation:8]. The table below breaks down the essential distinctions.

Parameter	30mm Push Button Switch	22mm Push Button
Durability	Excellent; die-cast metal bezels, withstands impacts (IK10 often)	Good, but plastic bezels common; prone to crack under severe abuse
Actuation force & feel	Positive tactile feedback; suitable for thick gloves	Lighter touch; may be accidentally activated in tight spaces
Typical applications	Heavy industry: foundries, stamping, mining, extrusion	Commercial equipment, control cabinets, HVAC
Electrical rating	Up to 600V / 10A common	Usually up to 5A, 250V
Price	Higher upfront cost, lower lifecycle cost	Lower initial investment

According to experienced maintenance technicians, the 30mm push button switch rarely fails mechanically—even when coolant floods the enclosure.

✅ What Are the Key Advantages of 30mm Push Button Switches?

Pros

Superior mechanical strength — metal operators survive forklift bumps.
High ingress protection: IP66, IP67, NEMA 4X options.
Visible from distance; larger lens allows bright LED illumination.
Easy to wire: push-in terminals or screw terminals with captive clamps.
Modular contact blocks (1NO/1NC up to 3 stages).

Cons

Requires more panel space than 22mm; not ideal for dense HMIs.
Slightly higher cost per unit.
May be overkill for light-duty commercial applications.
Fewer aesthetic/designer styles compared to 16mm or 22mm.

⚠️ Are There Any Hidden Drawbacks of 30mm Switches?

While rare, one forum contributor noted that extremely forceful operators have been known to dislodge the contact block behind a 30mm push button switch if the panel is thin. Additionally, if your design requires many switches in a small area, the 30mm footprint can be restrictive. But for standalone E-stops or main power controls, nothing beats its presence.

🏭 Which Industries Rely Most on 30mm Push Button Switches?

The 30mm push button switch is standard in: automotive assembly, food & beverage (stainless steel versions), machine tools, cranes, mining, and wastewater treatment. Yijia Industrial Electric Co., Ltd. supplies custom-engraved 30mm switches to petrochemical plants, where corrosion resistance is paramount.

🔄 Momentary vs. Latching: How Do They Affect Operation?

Momentary 30mm push button switches (like those used for "start" functions) return to rest state when released. Latching types stay pressed (or toggled) until pushed again — often used for "on/off" or maintenance modes. Many illuminated versions combine latching action with LED status. For emergency stop, push-pull or twist-to-release operators are common in the 30mm size.

💧 How to Select the Right IP Rating for Your 30mm Switch?

IP66 and IP67 are typical for 30mm push button switches. IP66 means dust-tight and protected against powerful water jets; IP67 adds temporary immersion. If your application involves washdown (food industry), choose stainless steel with an IP69K rating. The Yijia Industrial Electric Co., Ltd. catalog includes 30mm devices with silicone diaphragms for extreme moisture.

📊 Popular 30mm Push Button Switch Types & Features

Series / Type	Illumination	Operation	Typical Contact	Environmental
A30NN (Omron)	Non-illuminated	Momentary/Alternate	1a, 1b, 2a, 2b	IP66, CE, UL
A30NL (Omron)	LED illuminated	Momentary	1a, 1b, 2a	IP66, various voltages
TWND series (IDEC)	Both	Momentary/Maintained	Up to 2NO/2NC	IP65, heavy duty
9001K (Schneider)	Illuminated options	Momentary/Push-Pull	Configurable	NEMA 4X, IP66

❓ Frequently Asked Questions About 30mm Push Button Switches

Can a 30mm push button switch directly replace an old 30.5mm hole?

Yes, most 30mm push button switches are designed for 30.5 mm mounting holes. Brands like Yijia Industrial Electric Co., Ltd. include anti-rotation rings that accommodate slight variations. Always check the datasheet: some European 30mm buttons use 30.2mm holes.

What voltage/current can a typical 30mm push button switch handle?

Standard industrial 30mm push button switches are rated up to 600V AC and 10A for general use. For DC applications or lower currents (electronic control), you can find variants with gold-plated contacts rated at 50mA, 48V DC. Always match the switch to your load type (resistive vs. inductive).

Are 30mm push button switches available with LED and what voltages?

Absolutely. LED units like the A30NL series support AC/DC 6V, 12V, 24V, and even AC 100–240V with built-in current limiting resistors. Bi-color LEDs (red/green) are also common to indicate run/stop status. Yijia Industrial Electric Co., Ltd. offers full-voltage LEDs in their 30mm line.

How do I wire a 30mm push button switch with push-in terminals?

Push-in terminal blocks (like Push-in Plus from Omron) allow tool-less insertion: strip the wire 10mm, press the spring release (or just push for solid wire), and insert. It’s faster than screw terminals and vibration-resistant. Many 30mm push button switches now offer this feature for maintenance-free wiring.

What is the difference between "flush" and "extended" button operators?

Flush 30mm push button switches sit nearly level with the bezel — they prevent accidental actuation. Extended (or raised) operators protrude further, making them easier to press with gloves, but they’re more prone to unintended activation. For E-stop, mushroom-head extended operators are mandatory.

📚 References & Sources

[1] MISUMI: A30NN Non-Illuminated 30mm Pushbutton (Omron)
[2] IDEC TWND Series Heavy-Duty 30mm
[3] 30mm Metal Push Button specs (stainless)
[5] MISUMI: A30NL Illuminated 30mm Pushbutton
[8] PLC Forum: 30mm vs 22mm durability discussion
[7] Schneider 9001K 30mm applications

*Additional insights from Yijia Industrial Electric Co., Ltd. internal test data.
