As an established OEM manufacturer and exporter, Yijia produces the high-performance Square Push Button Switch Automation Line to meet the rigorous switching demands of automated manufacturing systems.
In high-throughput manufacturing lines, control interface failure leads to costly line stoppages. The Square Push Button Switch Automation Line is built specifically to address high-vibration and continuous-cycling conditions found in conveyor networks, robotic cells, and continuous processing machinery.
To eliminate phantom trips and micro-interruptions in automated conveyancing, every Square Push Button Switch Automation Line unit undergoes continuous vibration resistance and contact bounce analysis. The premium silver alloy contacts maintain low contact resistance (≤ 50mΩ) even under 15A full-load inductive inductive switching, effectively suppressing localized electric arcs and preventing thermal aging.
Deploying the Square Push Button Switch Automation Line directly optimizes electrical panel build times and long-term facility maintenance schedules through specific architectural design choices.
Rather than hard-wiring switch terminals directly inside tight enclosures, the detachable socket base enables pre-harnessing during panel construction. Maintenance crews can replace worn switch units in seconds by unclipping the head assembly, eliminating line downtime during scheduled servicing.
Featuring integrated 50,000-hour LED units and wide-angle diffusion lenses, operators receive immediate status indication across bright factory floors. Available visual channels include:
The matrix below provides complete electrical, mechanical, and physical parameters for the Square Push Button Switch Automation Line to assist automation engineers in circuit design.
| Performance Attribute | Measured Rating / Capability | Engineering Context |
|---|---|---|
| Panel Cutout Diameter | 16mm standard cutout | Fits high-density PLC control panels |
| Maximum Switching Current | 15A rating | Handles inductive & resistive control loads |
| Contact Point Composition | High-grade Silver Alloy | Ensures low resistance (≤ 50mΩ) & minimal arcing |
| Contact Wiring Topology | 1NO1NC or 2NO2NC options | Supports dual-channel safety feedback loops |
| Ingress Protection Grade | IP54 rated seal | Resists dust ingress and light liquid splashing |
| Mechanical Switch Cycles | 500,000 operations minimum | Designed for frequent operator actuation |
| Electrical Load Cycles | 100,000 operations minimum | Sustained electrical integrity under full load |
Engineers specify the Square Push Button Switch Automation Line across four major automated industrial environments:
Directly interfaces with Programmable Logic Controller (PLC) input modules to execute station indexing, manual part clamps, and cycle resets on auto-assembly jigs.
Mounted on exterior doors of power distribution cabinets, motor control centers (MCC), and industrial sub-stations to allow safe operator switching without exposing personnel to live high-voltage interiors.
Utilized in solar inverter control racks and commercial charging infrastructure where reliable continuous conduction is mandatory.
Integrated into specialized medical treatment consoles and diagnostic machinery requiring quiet operation, precise tactility, and long-term switching fidelity.

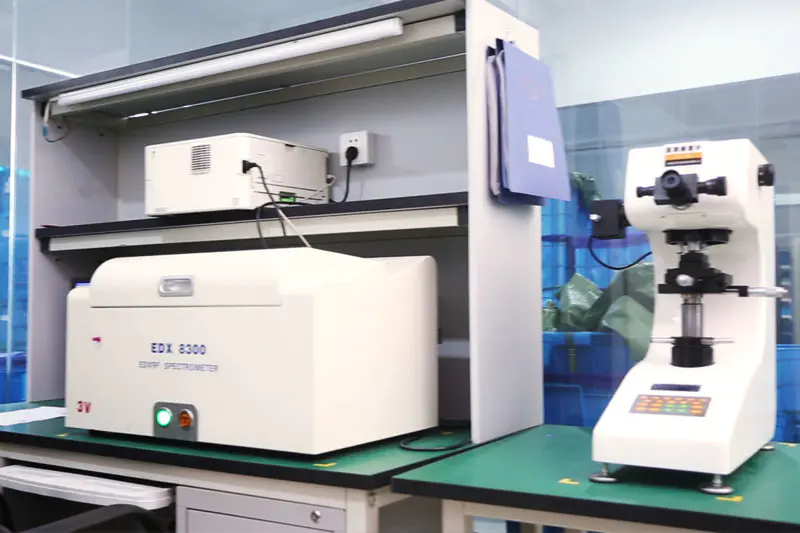

Yijia Industrial Electrical Co., Ltd. builds every Square Push Button Switch Automation Line using rigorous quality control protocols under our core principle: "Quality as the root, Service as the base."

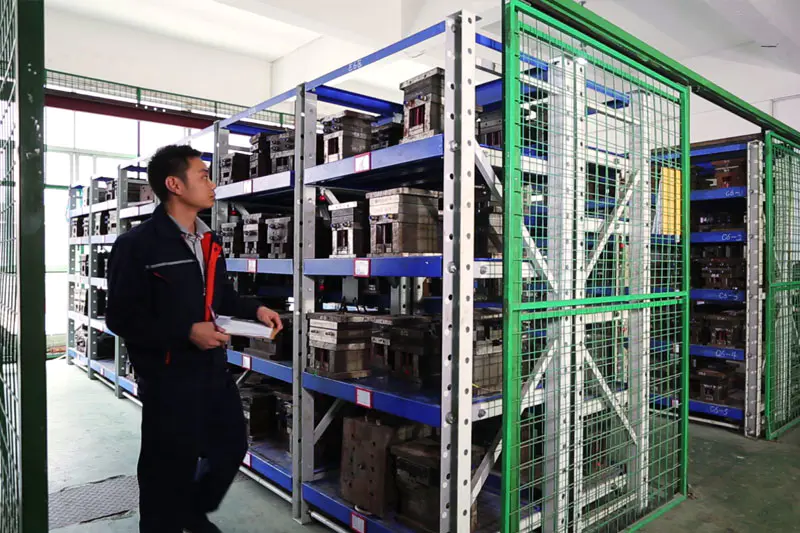

We maintain end-to-end production governance—from tool design and plastic molding to precision metal stamping. This internal vertical setup guarantees strict component tolerances and batch-to-batch consistency.
All units are manufactured under ISO9001 quality management guidelines and hold official regulatory compliance marks:
Procurement teams can configure actuation behavior (Momentary vs. Latching), custom faceplate symbol engraving, and pre-wired socket assemblies. For technical inquiries, sample requests, or warranty assistance, contact our dedicated support line at 4000-300-695.
The IP54 seal prevents fine industrial dust, airborne particulates, and accidental coolant splashes from entering the contact block, maintaining stable conductivity without oxidation.
Yes. The high-quality silver alloy contact design supports up to 15A current capacity, allowing direct actuation of contactors, intermediate relays, and solenoids without secondary switching interfaces.
It seals the internal contact block against dust and liquid splash. The IP54-rated micro-seal blocks airborne metal dust, oil mist, and water vapor from entering the contact chamber, preventing contact oxidation and high-resistance faults on active assembly floors.
Yes, it directly controls medium-load actuators. Thanks to the heavy-duty high-purity silver alloy contacts, the switch manages up to 15A capacity without suffering contact welding, allowing engineers to directly trigger intermediate relays, AC contactors, and solenoids without extra relay drivers.
