In industrial automation, consumer electronics, vehicle control panels, and smart home equipment, the Metal Push Button Switch has become an essential component thanks to its durability, safety, and elegant appearance. As electrical systems demand higher stability and longer service life, choosing the right switch is critical. This article explores how a Metal Push Button Switch works, why it is widely used, and what specifications you should look for when selecting one for your application.

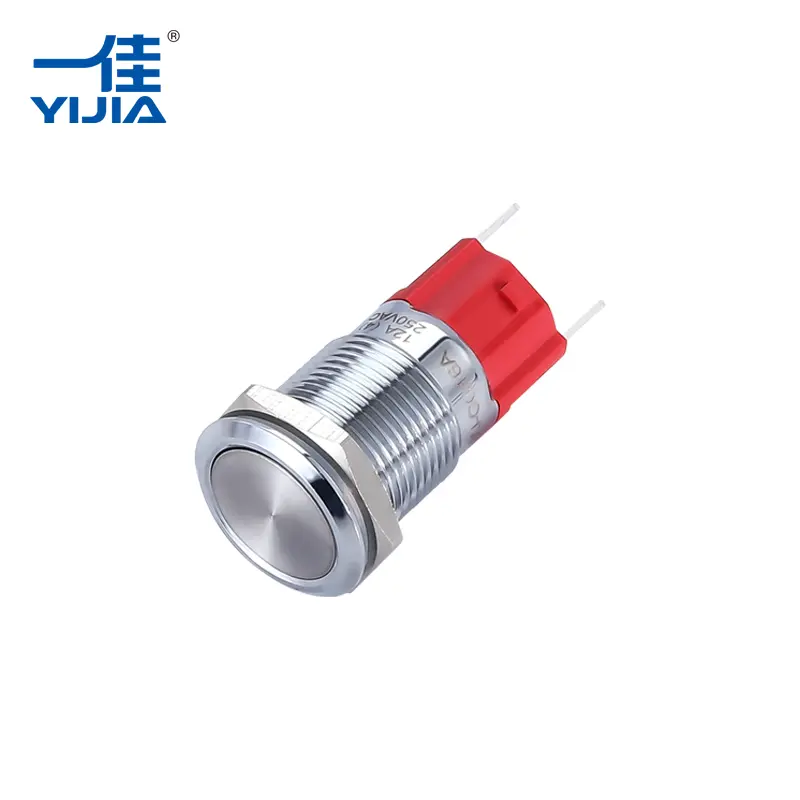

A Metal Push Button Switch operates by completing or cutting off an electrical circuit when mechanically pressed. The internal mechanism—usually a spring-loaded contact structure—allows for momentary or latching functionality.
Because of its metal housing (commonly stainless steel, copper, aluminum alloy, or zinc alloy), it offers excellent resistance to impact, corrosion, and harsh environments.
Key Working Features:
Mechanical press activates internal contact points
Available in momentary (auto-reset) and latching (stay-on) modes
LED illumination enhances visibility and operating feedback
Suitable for AC and DC circuits
Supports a wide range of voltages and current loads
Metal Push Button Switches are designed for environments that require strong mechanical endurance and high frequency operation. Their metal shell ensures long service life, making them superior to plastic switches in demanding applications.
High durability — metal body resists wear, impact, and corrosion
Waterproof & dustproof protection — many models support IP65–IP67 ratings
Safe and stable — low failure rate and strong electrical insulation
High aesthetic value — modern look suitable for premium equipment
Wide compatibility — works with automation systems, panels, medical devices, cars, boats, etc.
When selecting a switch for your project, several parameters must be evaluated carefully.
| Parameter | Details |
|---|---|
| Product Name | Metal Push Button Switch |
| Mounting Hole Size | 12mm / 16mm / 19mm / 22mm / 25mm / 30mm (customizable) |
| Material | Stainless steel / Nickel-plated brass / Aluminum alloy |
| Operation Type | Momentary or Latching |
| LED Illumination | Red, Green, Blue, White, Yellow, RGB |
| LED Voltage Options | 3V, 6V, 12V, 24V, 110V, 220V |
| Switch Rating | 3A–10A depending on model |
| Protection Level | IP65 / IP67 / IK10 optional |
| Terminal Type | Solder lug / Screw terminal / Pin terminal |
| Operating Temperature | –20°C to +85°C |
| Applications | Industrial control, automation machinery, access control, vehicles, audio equipment, elevators, etc. |
Metal Push Button Switches are widely used in:
Industrial machinery control panels
Vehicle dashboards & marine equipment
Security and access systems
Medical devices
Smart home control panels
Consumer electronics
Commercial kiosks and vending machines
Their robustness and long lifespan reduce maintenance costs and improve operational safety.
Choosing the correct type depends on functional requirements.
Active only while pressed
Best for: machine start buttons, reset switches, signal triggers
Press once to turn on, press again to turn off
Best for: power switches, lighting systems, control panels
Waterproofing ensures operational stability in harsh environments such as outdoor devices, marine equipment, kitchens, workshops, and industrial machines.
Prevents dust intrusion
Withstands water spray and temporary immersion
Reduces corrosion risk
Improves equipment reliability outdoors or in wet environments
LED illumination enhances visibility and aesthetics. The glowing ring or dot-light design provides clear operational feedback, making it suitable for night use or low-light environments.
Better operational status indication
Reduced user error
Attractive visual design
Energy-efficient
A Metal Push Button Switch offers significantly higher durability, impact resistance, and waterproof performance. Plastic switches are easier to deform and are not suitable for demanding environments.
LED versions are available in 3V, 6V, 12V, 24V, 110V, and 220V, suitable for low-voltage and high-voltage systems.
Measure the panel opening diameter, then select a switch size such as 12mm, 16mm, 19mm, 22mm, or 25mm. Always ensure the panel thickness matches the switch's mounting requirements.
Yes. Models with IP65 or IP67 protection levels are waterproof, dustproof, and corrosion-resistant, making them ideal for outdoor control systems.
If you are looking for durable, high-performance, and customizable Metal Push Button Switch solutions, feel free to contact Yijia Industrial Electric Co., Ltd. We provide professional technical support and high-quality products for global customers.
Contact us today for product catalogs, samples, and customized services.
-
