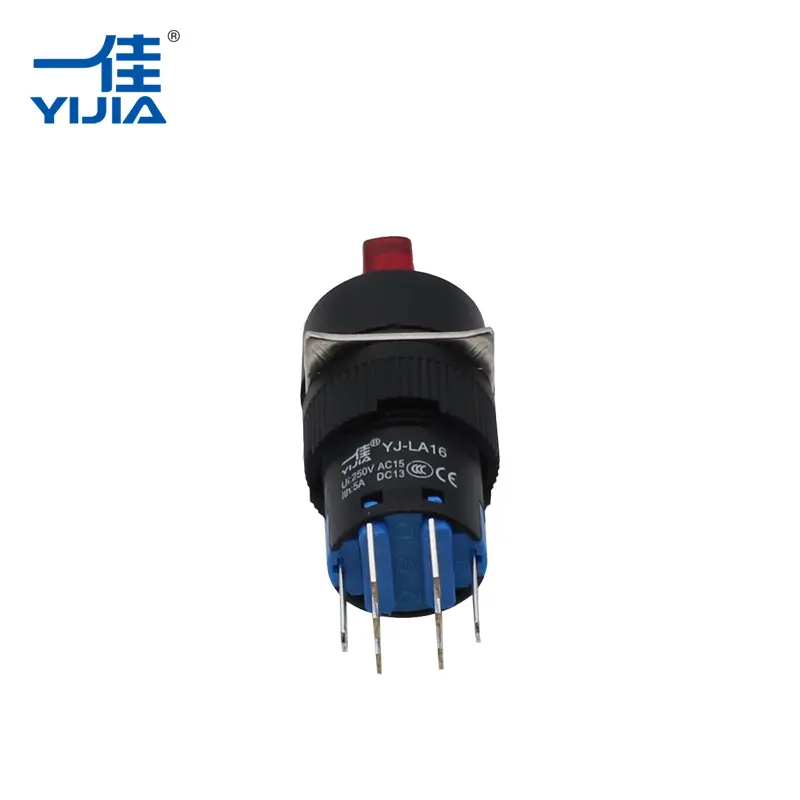

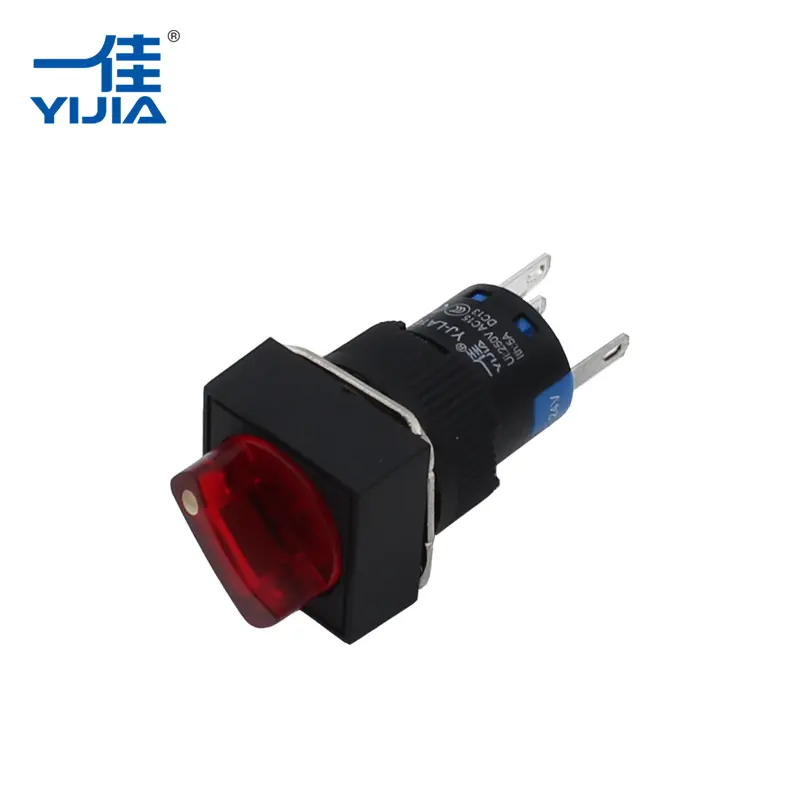

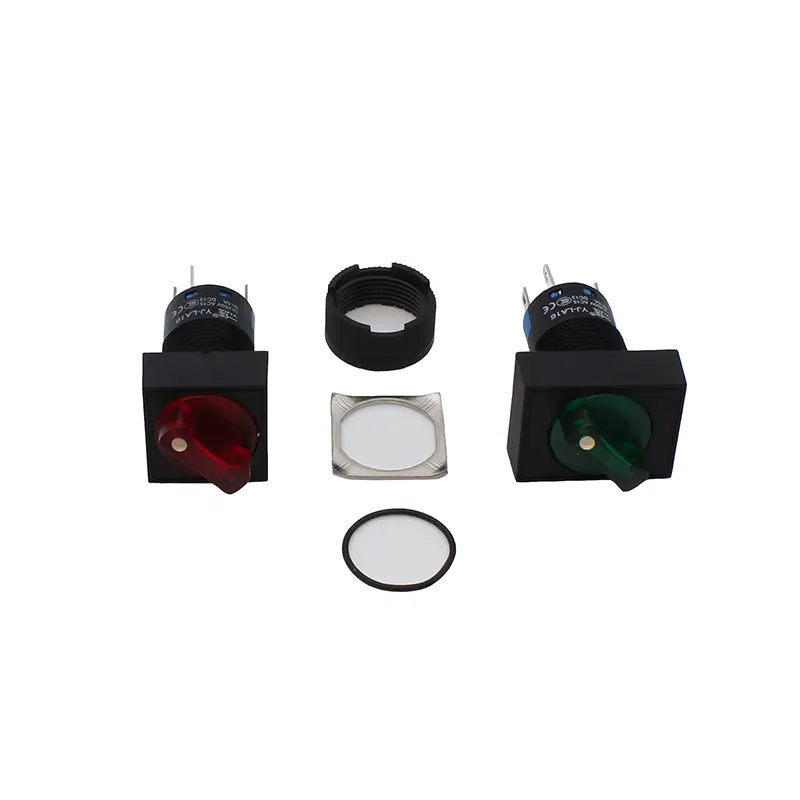

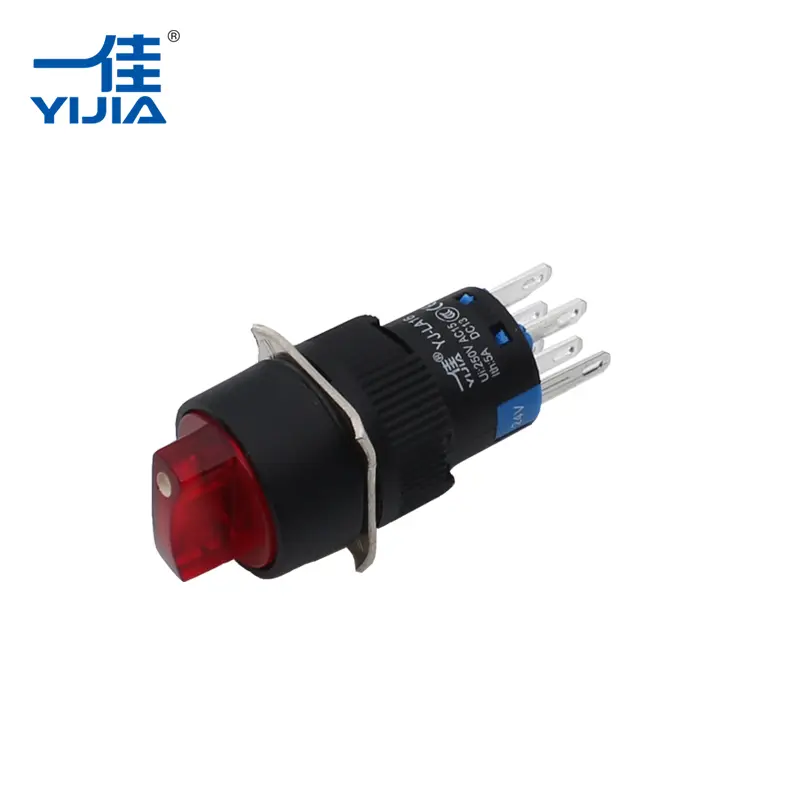

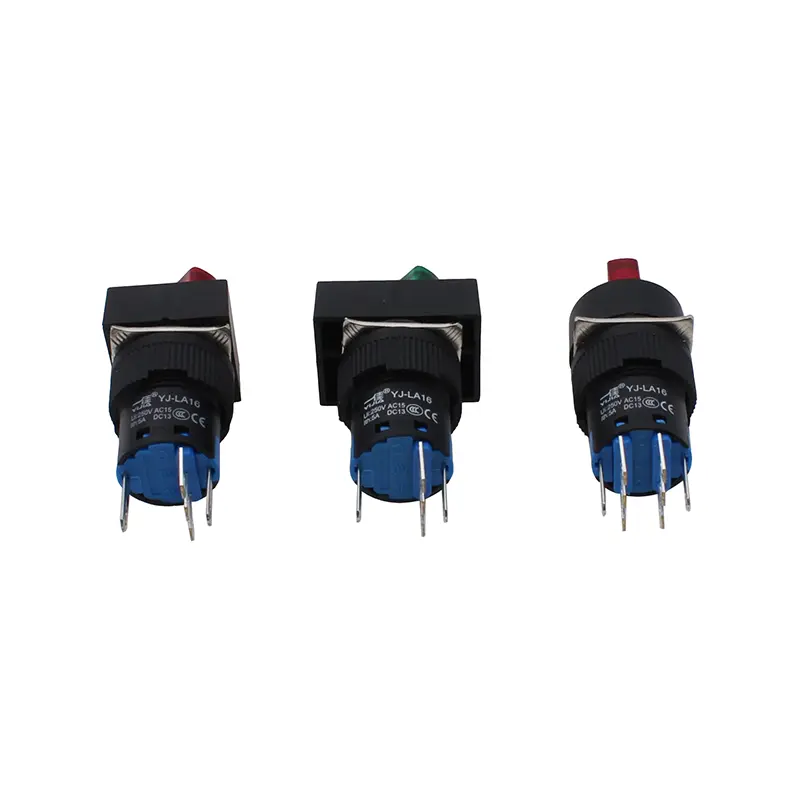

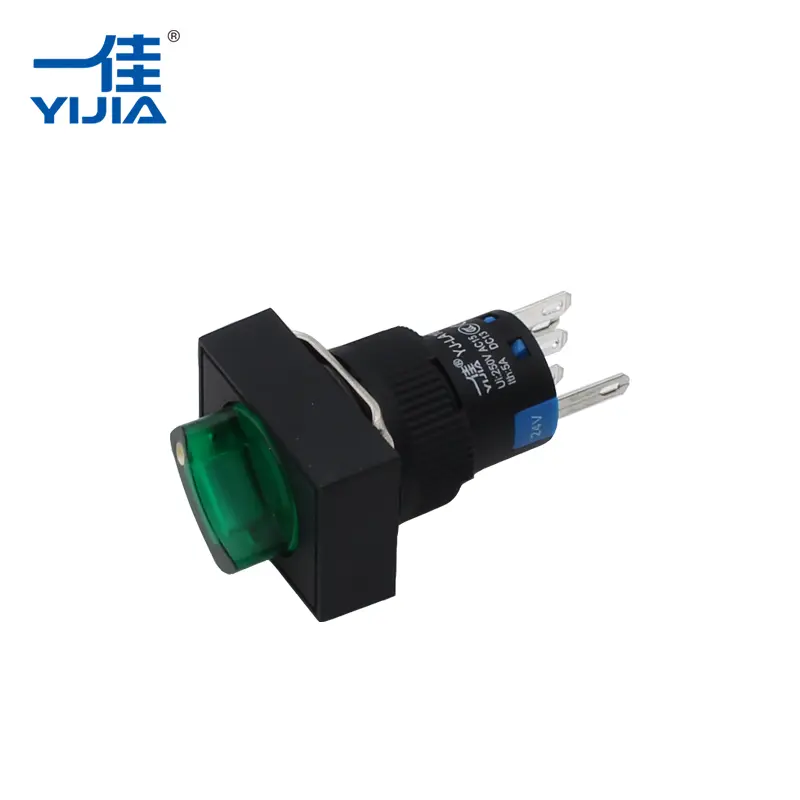

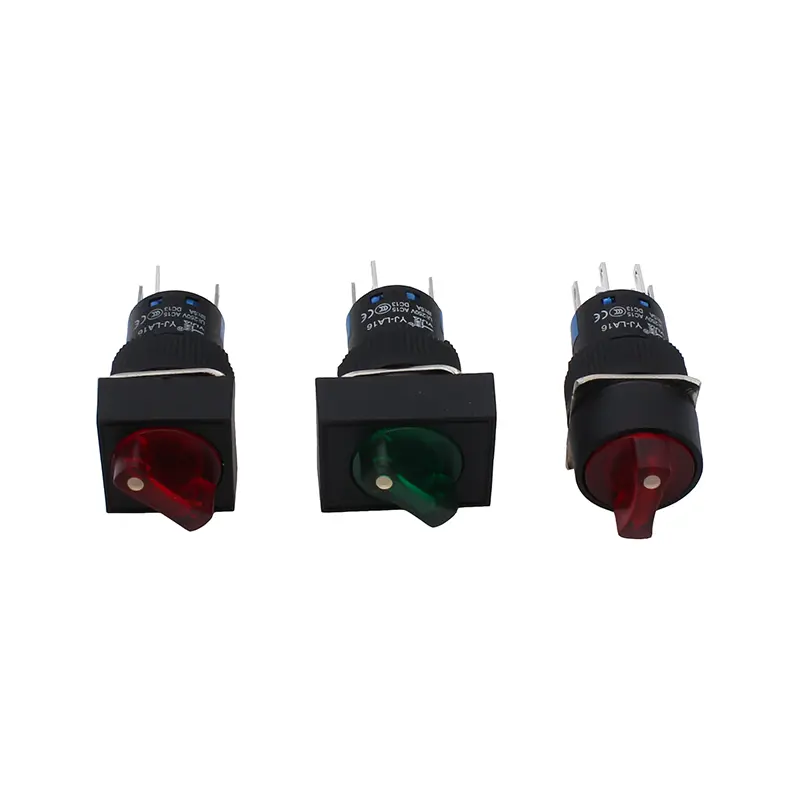

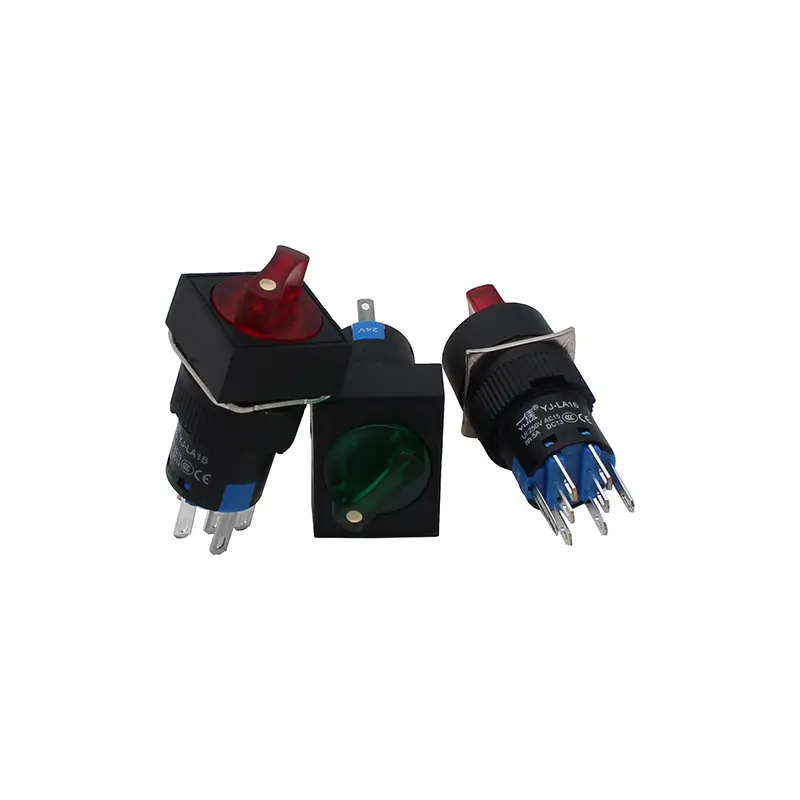

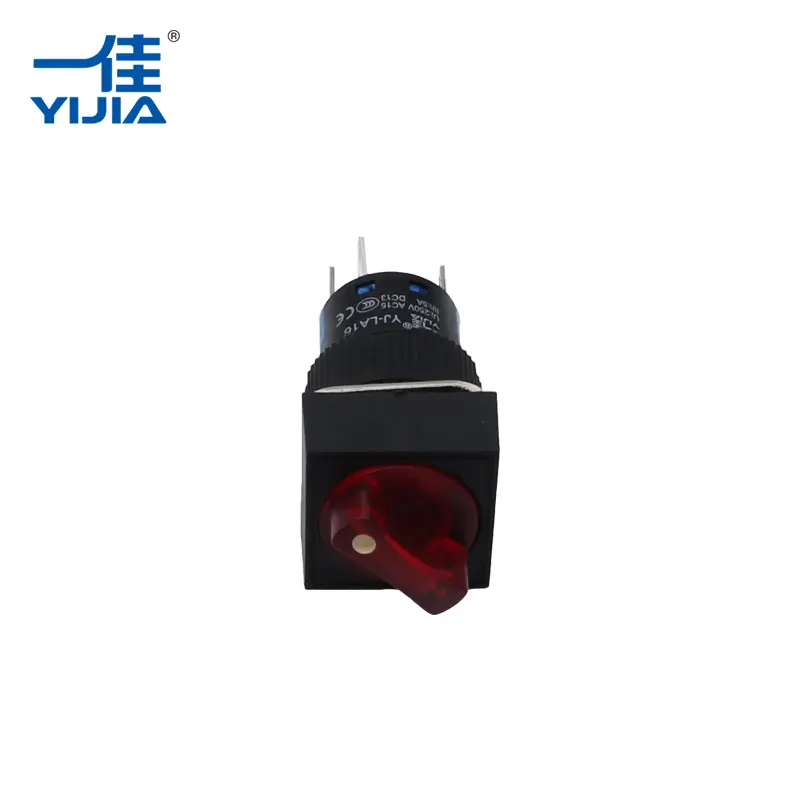

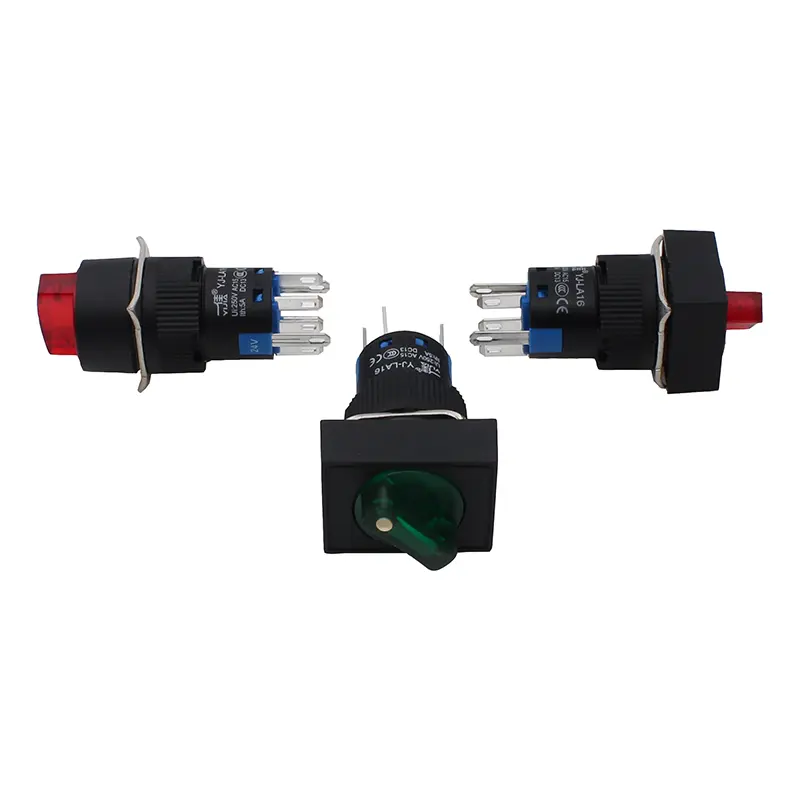

Illuminated Selector Switch

The installation dimension of this Illuminated selector switch is standard size, 16mm. To focus on the high quality and high electric performance, the illuminated selector switch is made of high-light LED, high-quality engineering plastic. And it equip with silver alloy contact and brass pins. For the pins, it use special electroplating technology to avoid oxidation. It use high accuracy mould to inject the plastic parts to improve the quality. YIJIA has design team, sale team, after-sales team and factory, it can provide the timely and efficient service.

• High-quality materials ensuring long-term durability
• LED indicator for clear state display
• Low contact resistance (≤50mΩ)
• Supports custom button switch options
• Free sample of two-position selector switch available

The Illuminated Selector Switch is designed for electric power control fields and mechanical operation control, widely used in consoles, control cabinets, distribution boxes, and instrument panels. It helps operators easily identify switch status and ensures reliable operation under various load conditions.

Suitable for industrial control equipment, automation systems, machine panels, distribution boxes, and other electrical control scenarios. Compatible with momentary or latching operation modes and various LED voltages and colors.

Yijia Industrial Electrical Co., Ltd. is a professional manufacturer in China with advanced equipment, modern management, and ISO9001 quality management system certification. Our production line ensures high precision, efficient delivery, and quality consistency.

• Q: How to select the correct Illuminated Selector Switch?
  A: Provide mounting size, load current, head type, contact structure, operation mode, LED voltage/color, shell material, and any special requirements (waterproof, custom symbol, socket).
• Q: Can the switch support higher currents?
  A: This model supports up to 5A; for higher current applications, please contact our sales team.
• Q: Are customizations available?
  A: Yes, Yijia supports customized LED colors, symbols, operation modes, and shell materials.

1. Inquiry and consultation
2. Selection of product model and specifications
3. Quotation and confirmation
4. Production and quality inspection
5. Delivery and logistics
6. After-sales support and technical assistance

Features & Benefits

● 16mm mounting hole size

● PBT/PA66 engineering plastic

● Brass pins

● 5A current capacity

● 1NO1NC/2NO2NC contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 500,000 cycles long mechanical life

● 100,000 cycles long electrical life

● 50,000 hours high-brightness LED life

● IP40 protection level

● CCC,TUV,CE

● RoHS

● Support to customize button switch

● Offer two position selector switch free sample

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

①　the dimensions of push button to install: 16mm.

②　the load current you need to control: 5A.

③　the type of head part: plat head without light.

④　choose the contact structure: 1NO1NC/2NO2NC

⑤　Operation mode: Momentary or Latching.

⑥　LED volt and color(if need led): DC 24V GREEN.

⑦　choose the materials of shell: Stainless steel or Brass clad chromium.

⑧　special request: waterproof, Custom symbol, need socket...
