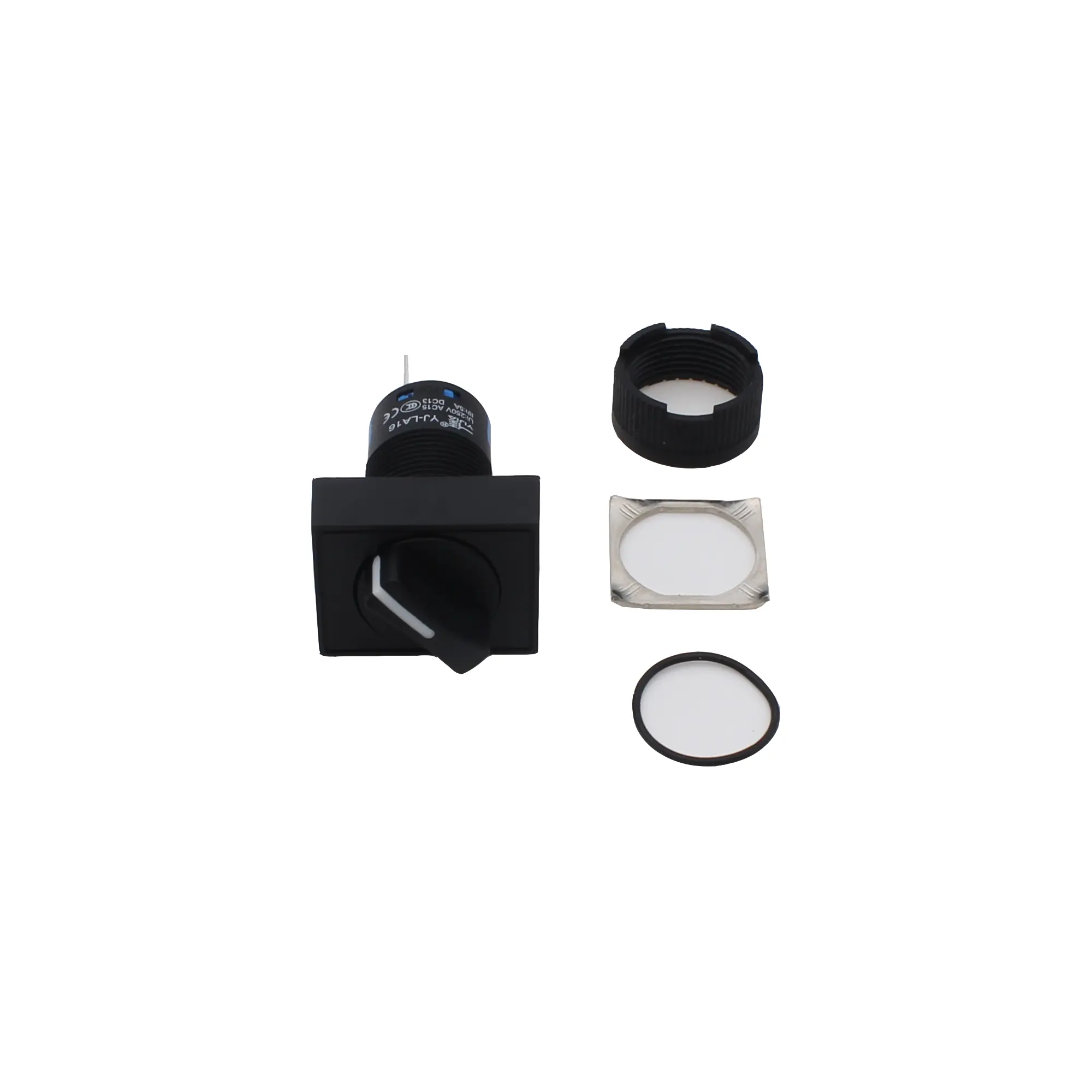

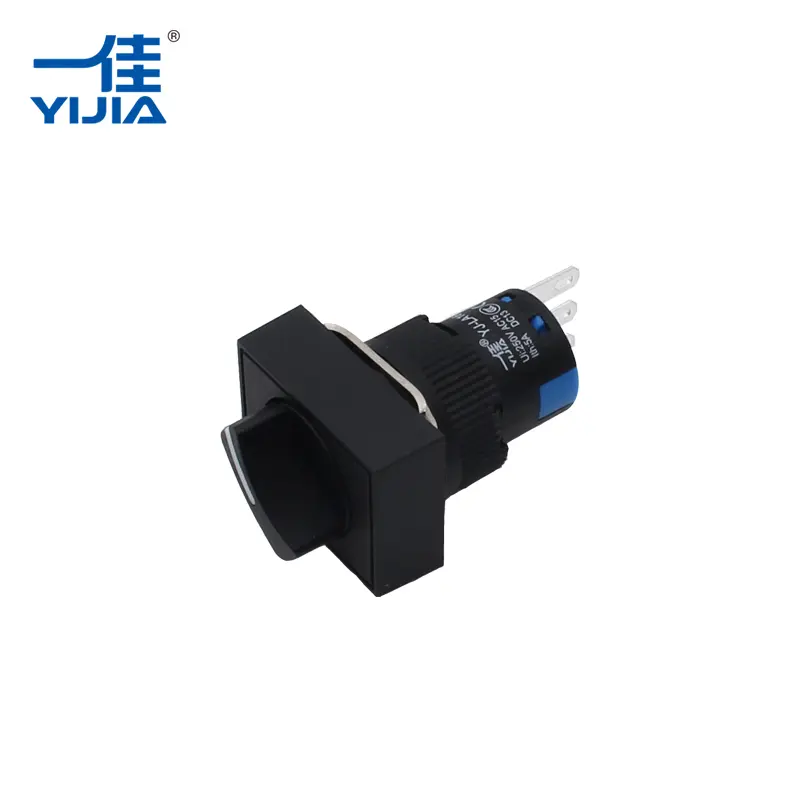

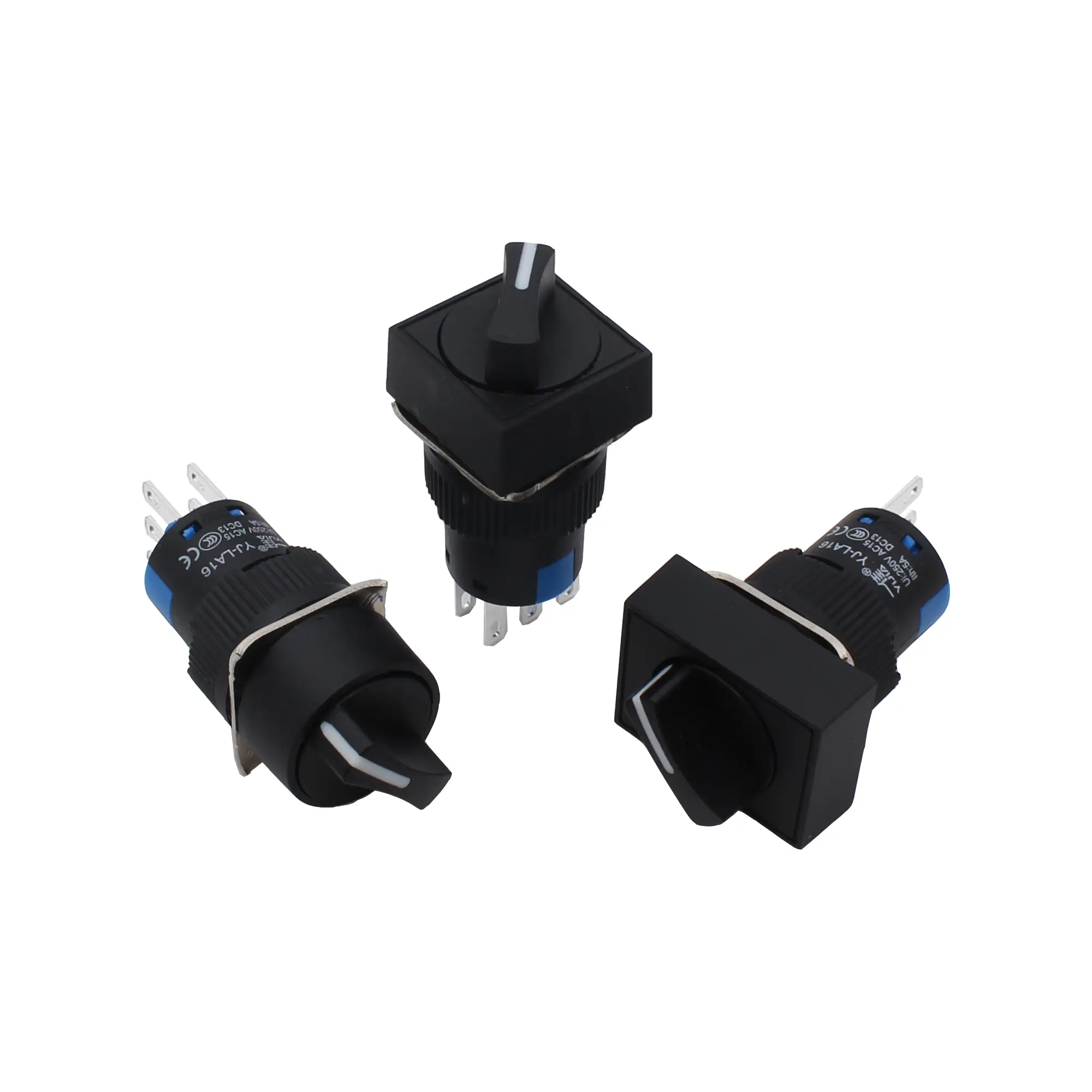

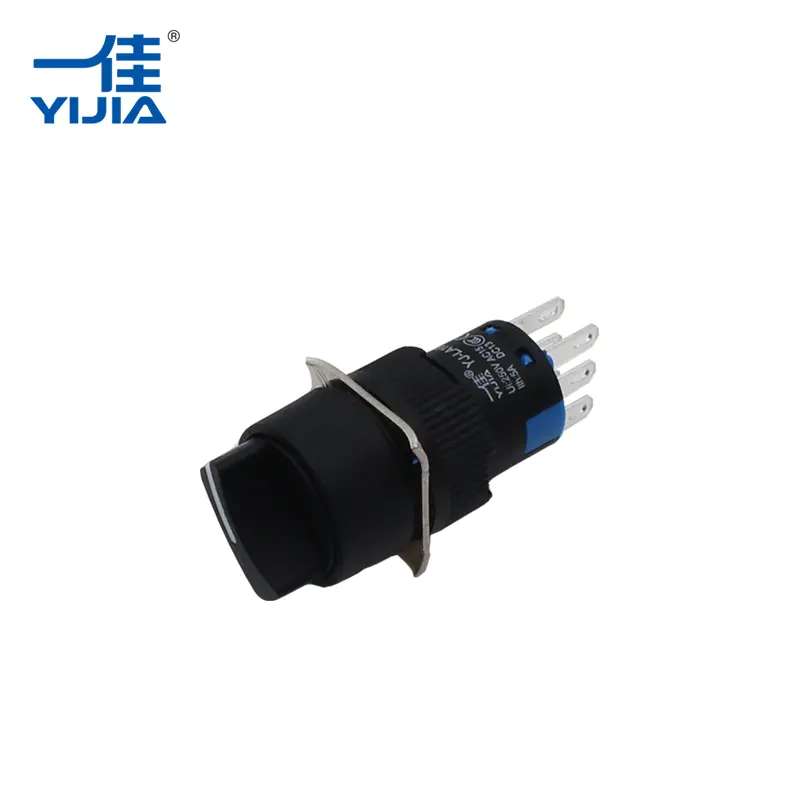

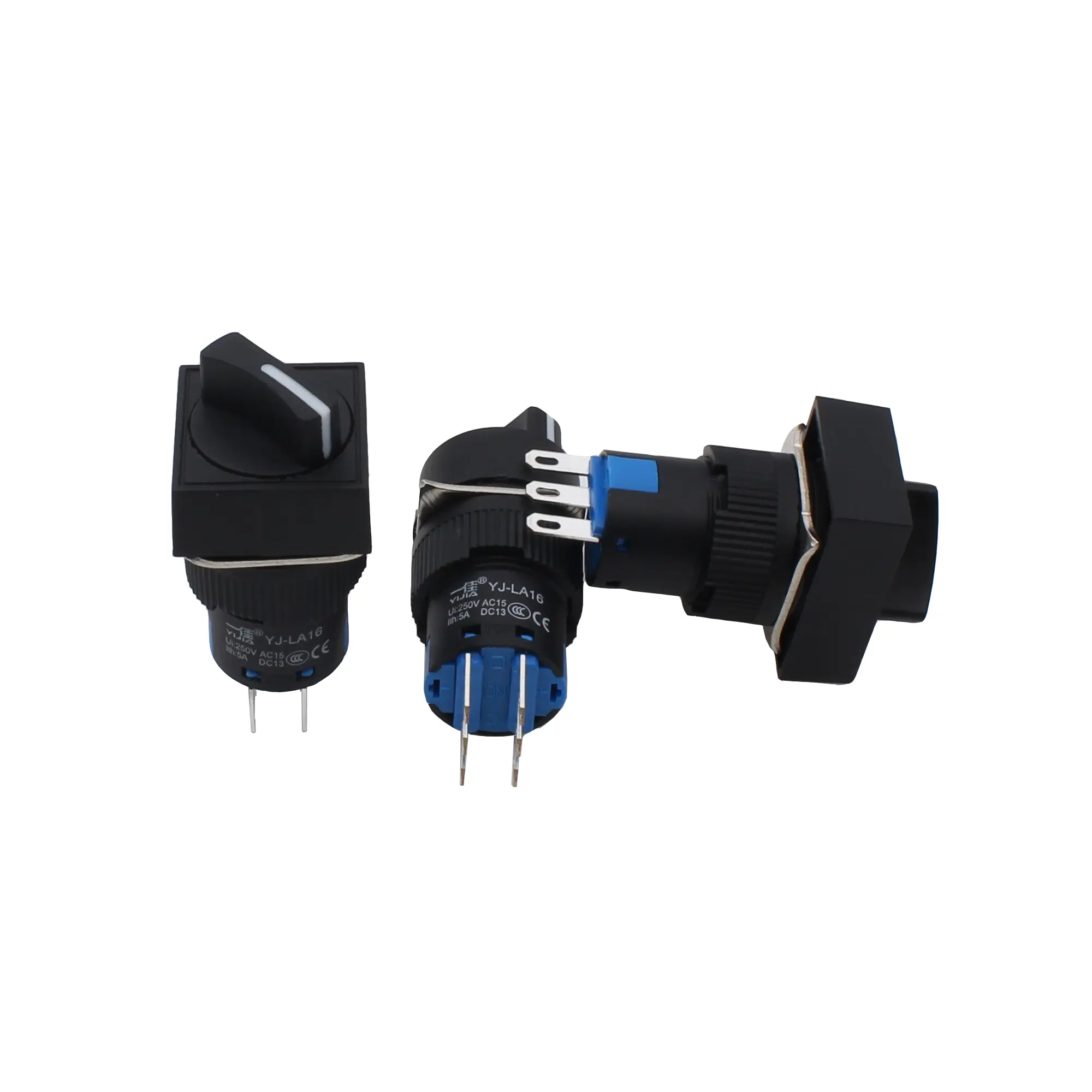

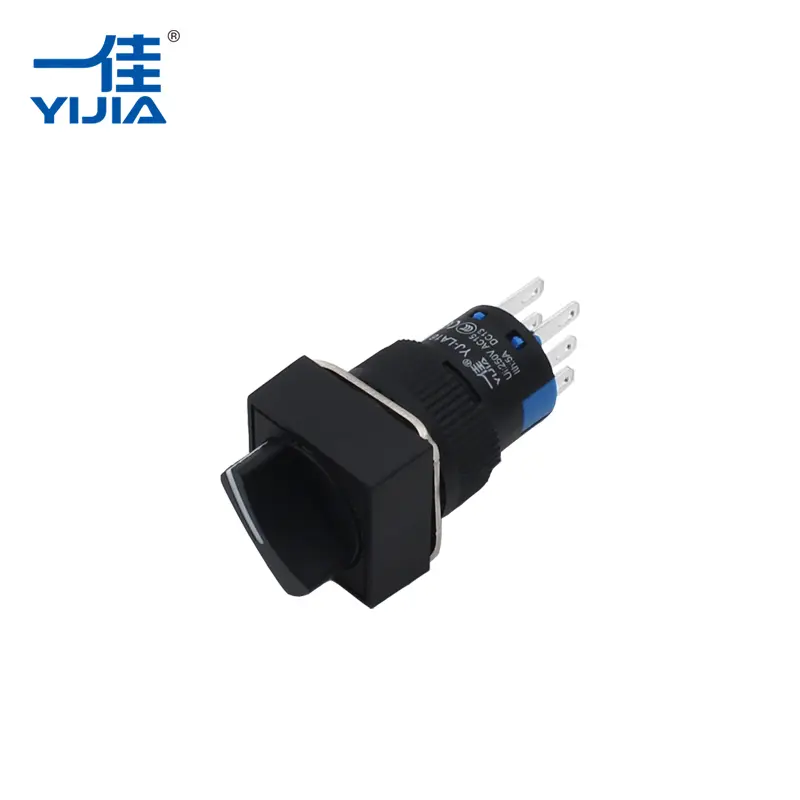

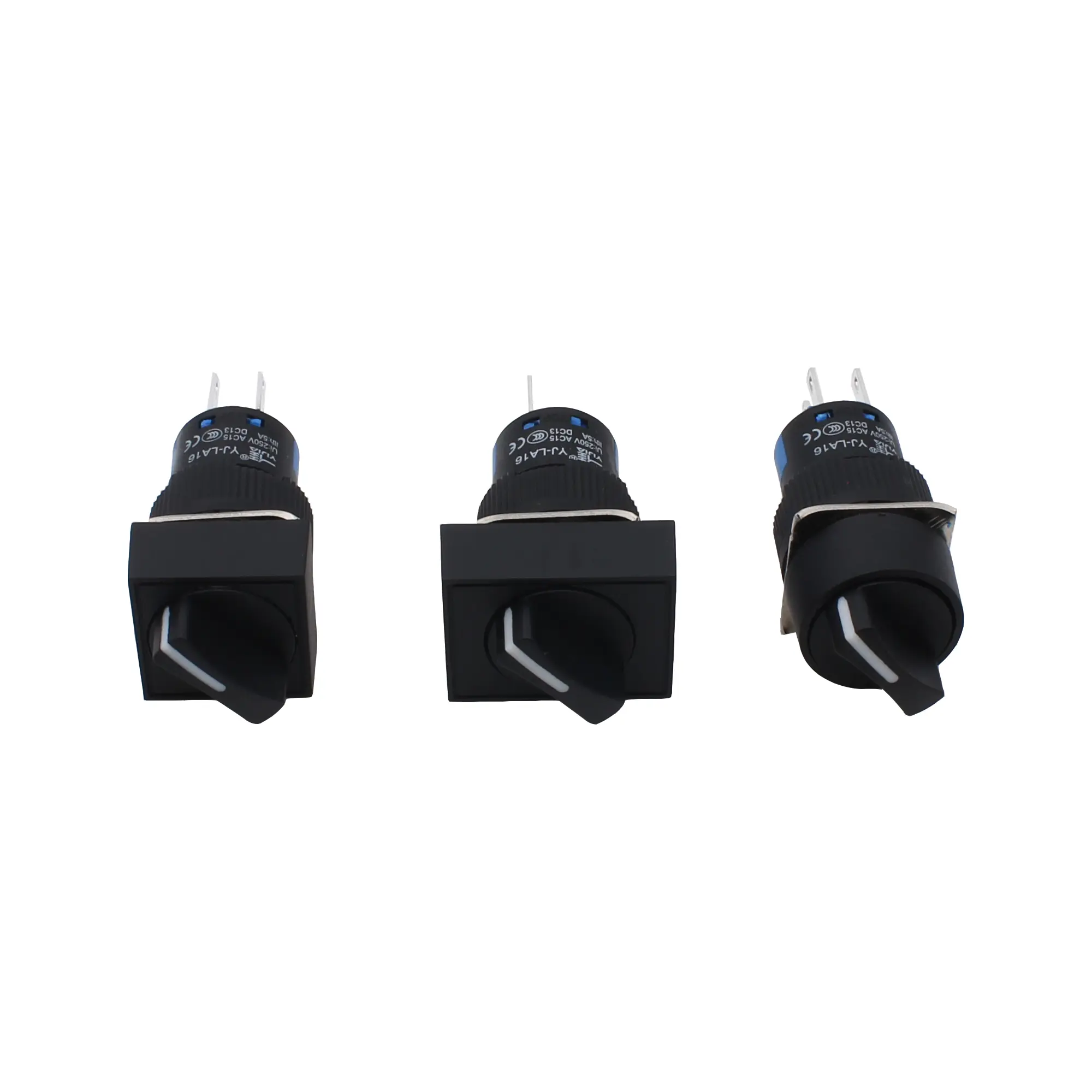

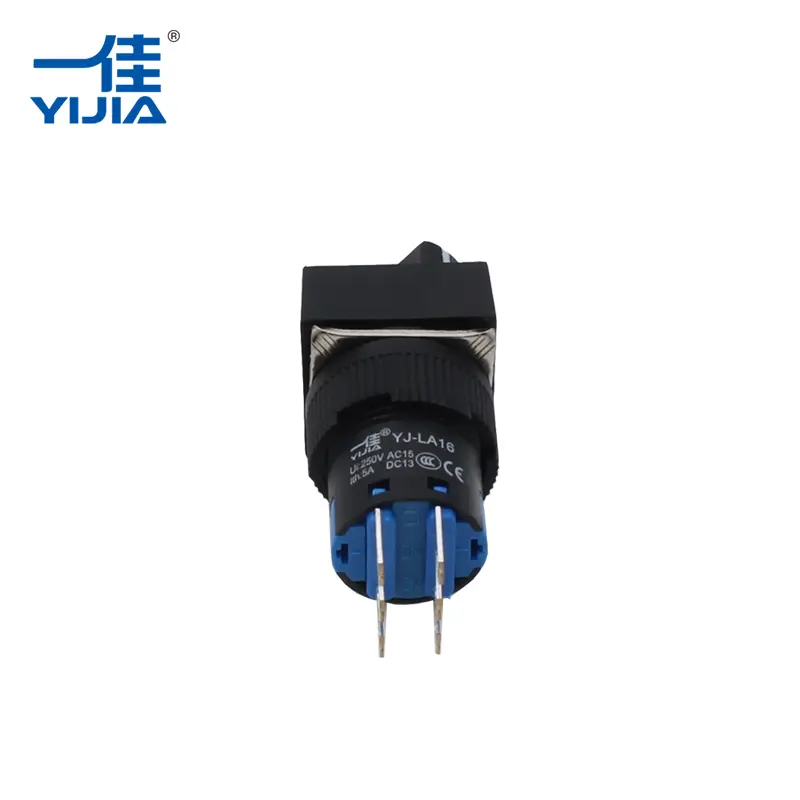

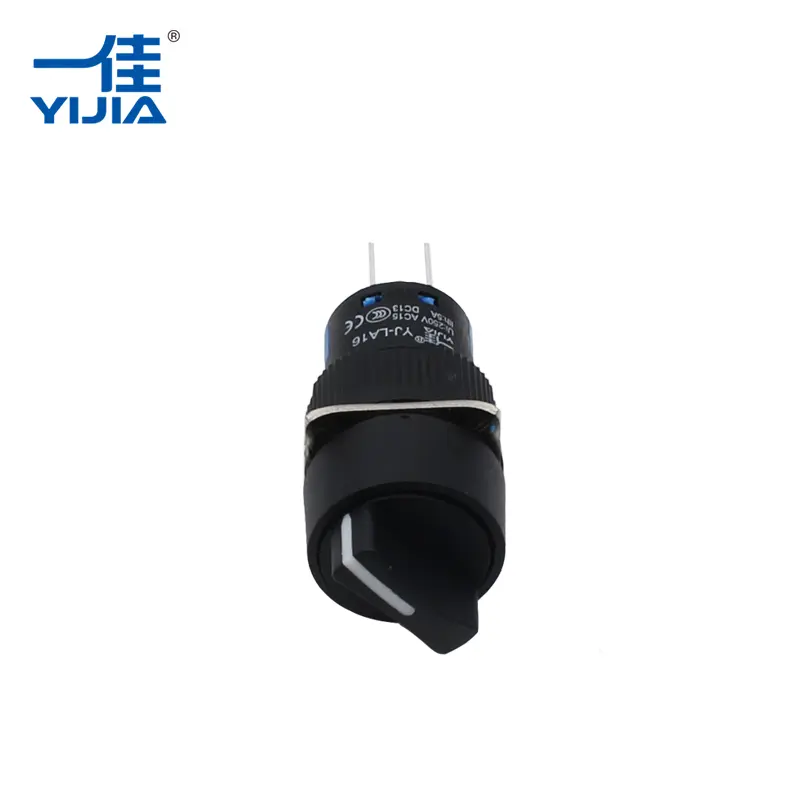

Three Position Selector Switch is a standard 16mm installation dimension plastic rotary switch, designed for switching circuit modes in industrial control systems. The switch adopts high-performance materials including PBT, PA66, silver alloy, and brass, which effectively ensures long mechanical and electrical life. With a current capacity of 5A, it is suitable for controlling power or signal in various control circuits. Optional high-intensity LED indicators (available in red, blue, yellow, green, white) can display the system state, enhancing operational convenience. Yijia, as a professional Three Position Selector Switch manufacturer, has its own design team and factory, ensuring product quality and customization flexibility.
The Three Position Selector Switch is widely used in various consoles, control cabinets (boxes), distribution boxes (cabinets), and instrument boxes (cabinets), playing a key role in mechanical operation control and power control fields. Yijia’s Three Position Selector Switch is designed to meet international standards, with reliable performance and stable operation, making it a preferred choice for industrial control equipment manufacturers and procurement
Product Parameters
Basic Parameters
| Parameter Name | Specification |
|---|---|
| Product Name | Three Position Selector Switch |
| Brand | Yijia |
| Installation Dimension | 16mm (Standard Size) |
| Material | PBT, PA66 (Engineering Plastic), Silver Alloy (Contacts), Brass (Pins) |
| Current Capacity | 5A |
| Contact Structure | 1NO1NC / 2NO2NC |
| Contact Resistance | ≤50mΩ |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles |
| LED Life (Optional) | 50,000 Hours (High-Brightness) |
| Protection Level | IP40 |
| Certifications | CCC, TUV, CE; RoHS (Customized) |
| LED Options | Red, Blue, Yellow, Green, White; Voltage Customizable |
Parameter Explanation
1. Installation Dimension: The 16mm standard size of Yijia Three Position Selector Switch is compatible with most industrial control cabinets and equipment, ensuring easy installation without additional modification.
2. Material: PBT and PA66 engineering plastics have excellent heat resistance and mechanical strength, while silver alloy contacts reduce contact resistance and improve electrical conductivity; brass pins enhance connection stability.
3. Current Capacity: 5A current capacity meets the control requirements of most low-voltage industrial circuits, suitable for power control and signal switching scenarios.
4. Protection Level: IP40 protection effectively prevents dust and small solid particles from entering the switch, ensuring stable operation in general industrial environments.
Function and Value
Core Functions
1. Circuit Mode Switching: Yijia Three Position Selector Switch can switch the circuit between two states, realizing the conversion of different working modes of the equipment.
2. Power/Signal Control: With 5A current capacity, it can effectively control the on-off of power or signal in the circuit, ensuring stable operation of the equipment.
3. Optional LED Indication: High-brightness LED indicators can display the working state of the switch and the system, facilitating operators to observe and operate.
Product Value
1. Reliability: High-quality materials and strict quality control ensure long service life of the Three Position Selector Switch, reducing equipment maintenance frequency and cost.
2. Compatibility: Standard 16mm installation dimension and multiple contact structures make it compatible with most industrial control equipment, improving application flexibility.
3. Cost-Effectiveness: Yijia provides high-quality Three Position Selector Switch at competitive prices, with free samples available, helping procurement商 reduce procurement costs.
4. Customization: Support for LED voltage, color, and special requirements (such as waterproof, custom symbols, sockets) meets the personalized needs of different procurement商.
Purchaser Concerns and Explanations
Common Concerns
1. Q: Is the quality of Yijia Three Position Selector Switch reliable?
A: Yijia has passed ISO9001 quality management system certification, and the Three Position Selector Switch has CCC, TUV, CE certifications. Strict raw material inspection and finished product testing ensure stable product performance and long service life. We also provide free samples for purchasers to test the quality.
2. Q: Can the Three Position Selector Switch be customized according to our needs?
A: Yes. Yijia supports customization of LED voltage, color, contact structure, and special requirements such as waterproof, custom symbols, and sockets. Our design team can adjust the product according to your specific needs.
3. Q: What is the delivery time of the product?
A: For standard Yijia Three Position Selector Switch, the delivery time is 3-7 working days; for customized products, the delivery time depends on the customization requirements, generally 7-15 working days. We will confirm the delivery time with you before order placement.
4. Q: Is there any after-sales service?
A: Yes. Yijia provides comprehensive after-sales service. If the product has quality problems within the warranty period (1 year), we will provide repair, replacement, or refund services. Our after-sales team will respond to your questions within 24 hours.
5. Q: How to confirm the appropriate type of Three Position Selector Switch?
A: You can provide the following information to us: installation dimension, load current, contact structure, LED requirements (if needed), special requirements, etc. Our professional team will help you select the appropriate type.
