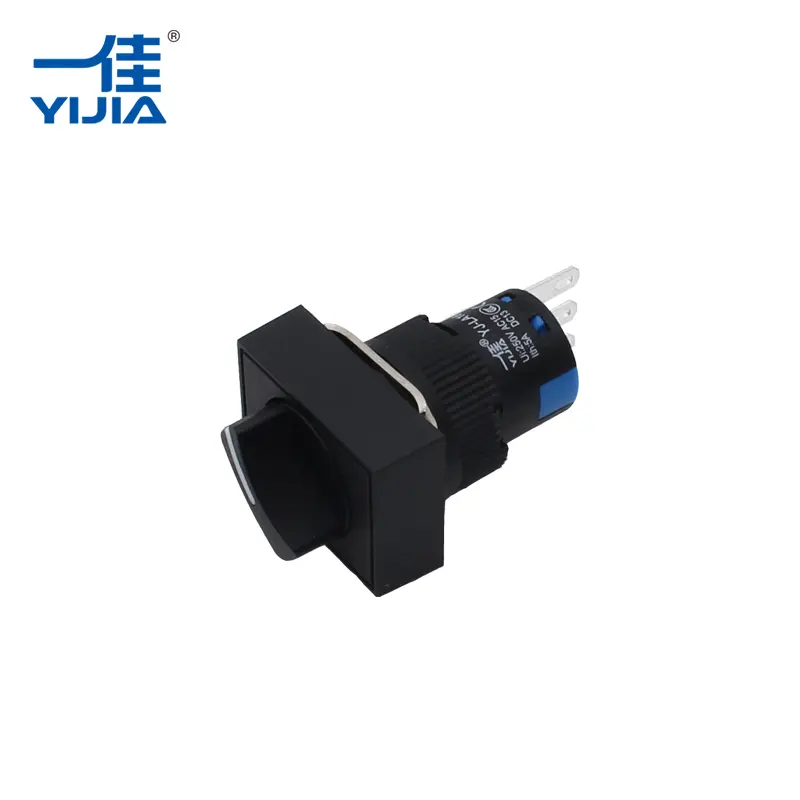

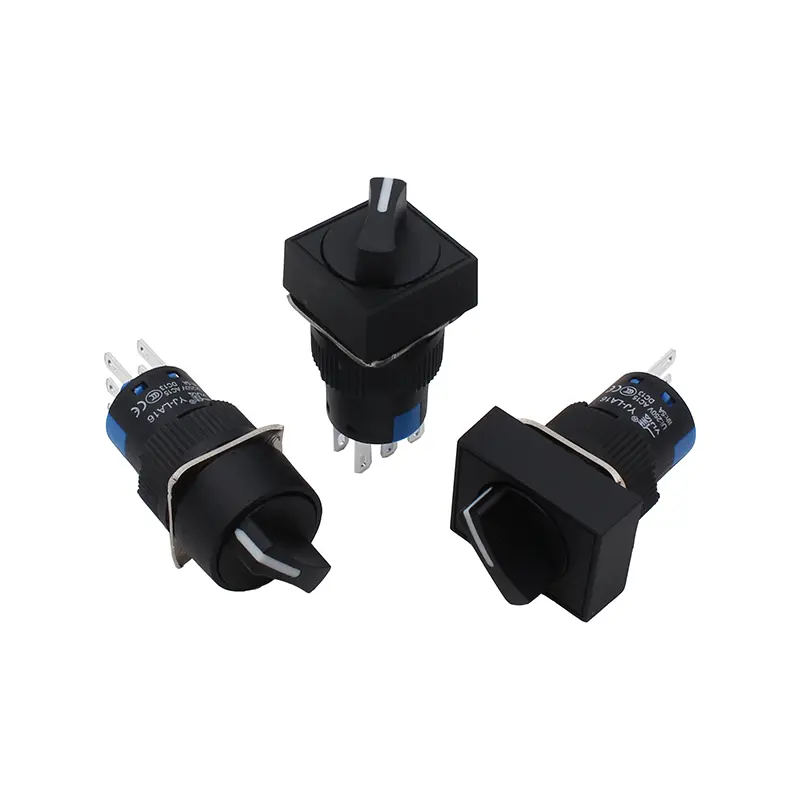

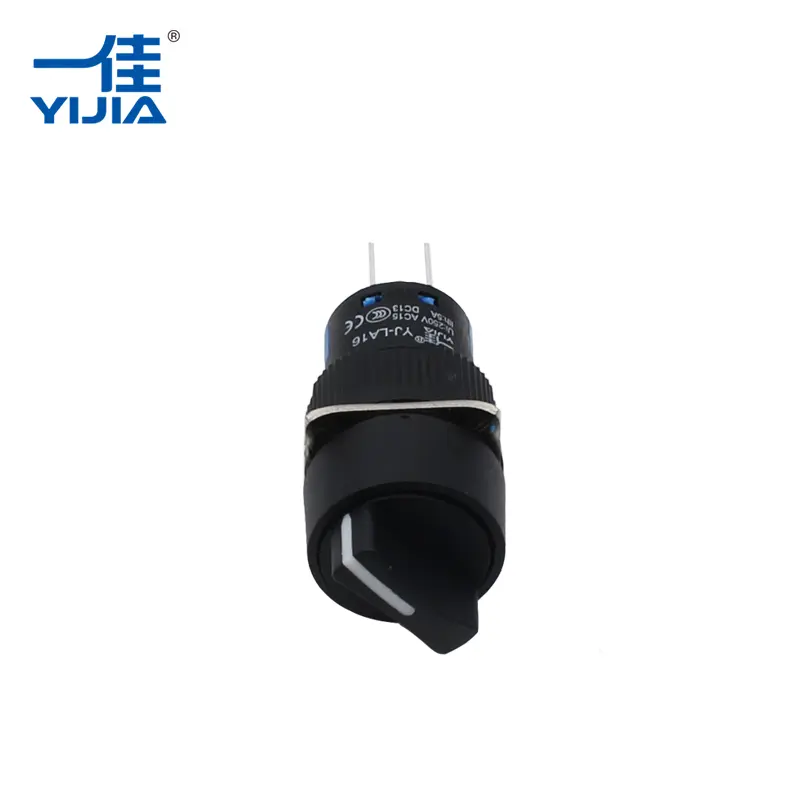

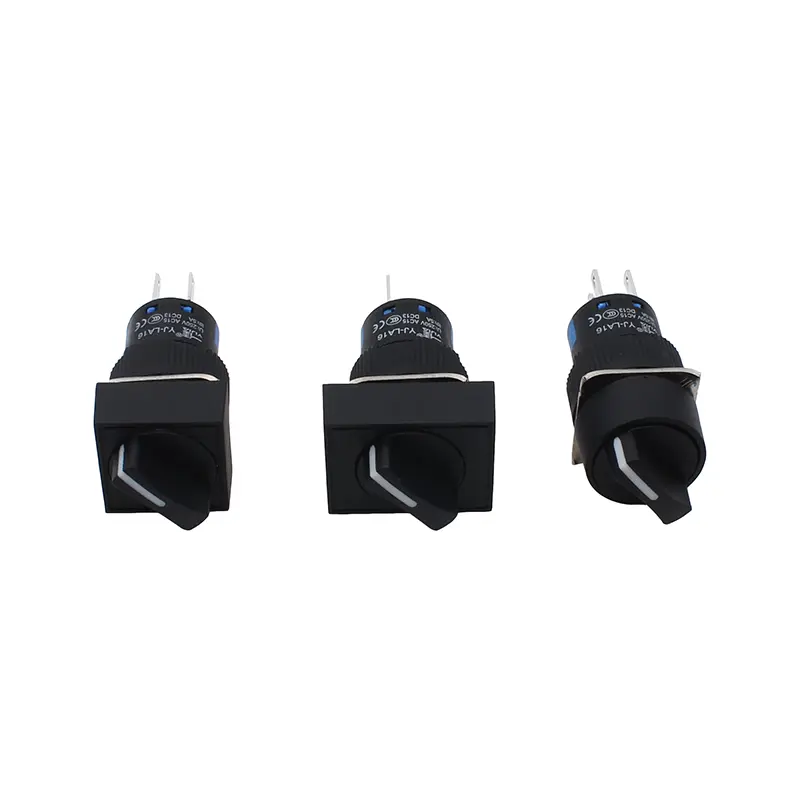

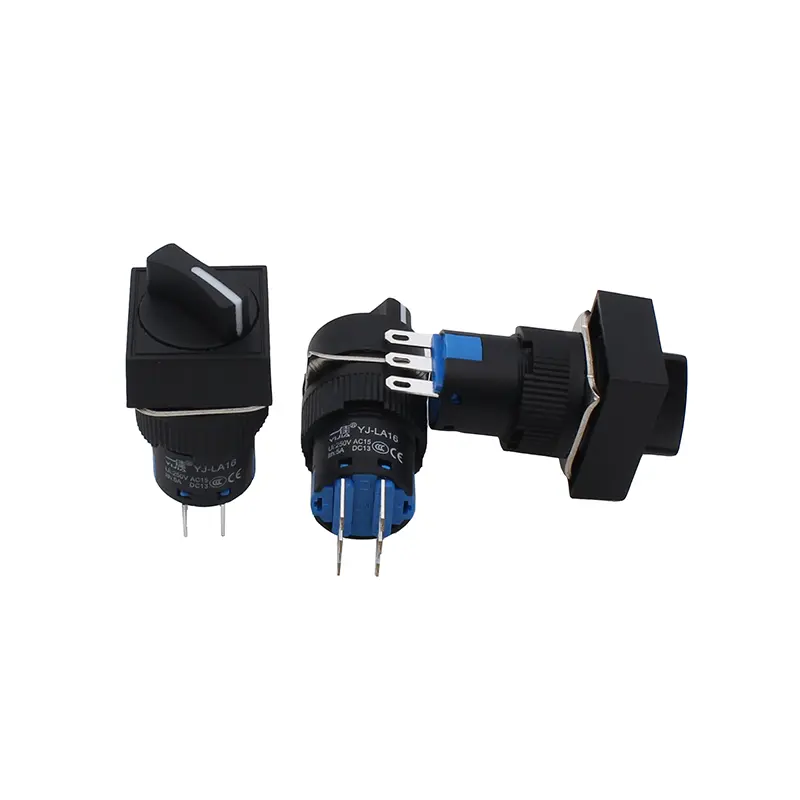

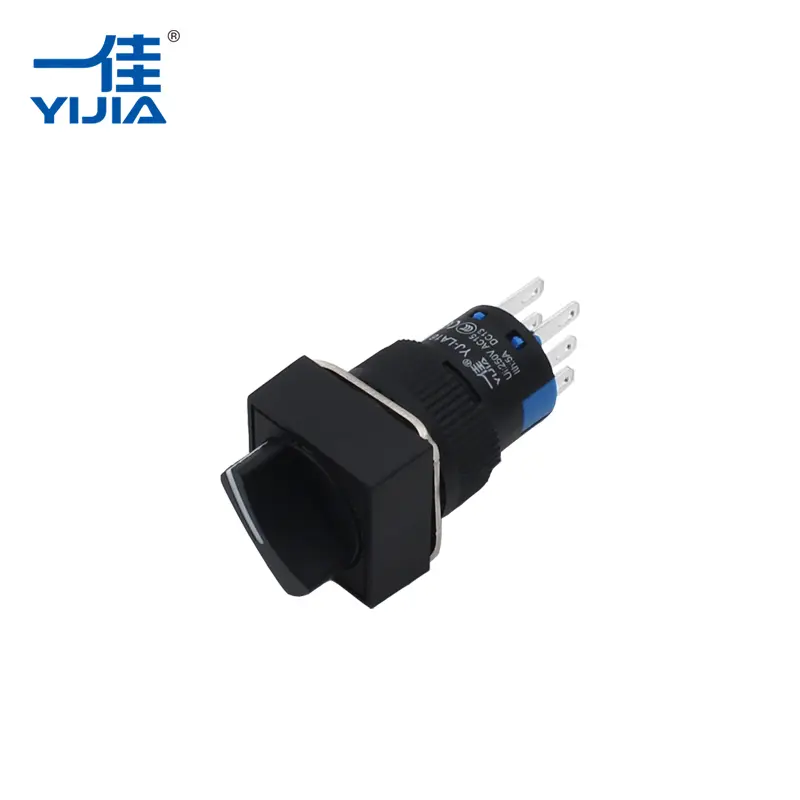

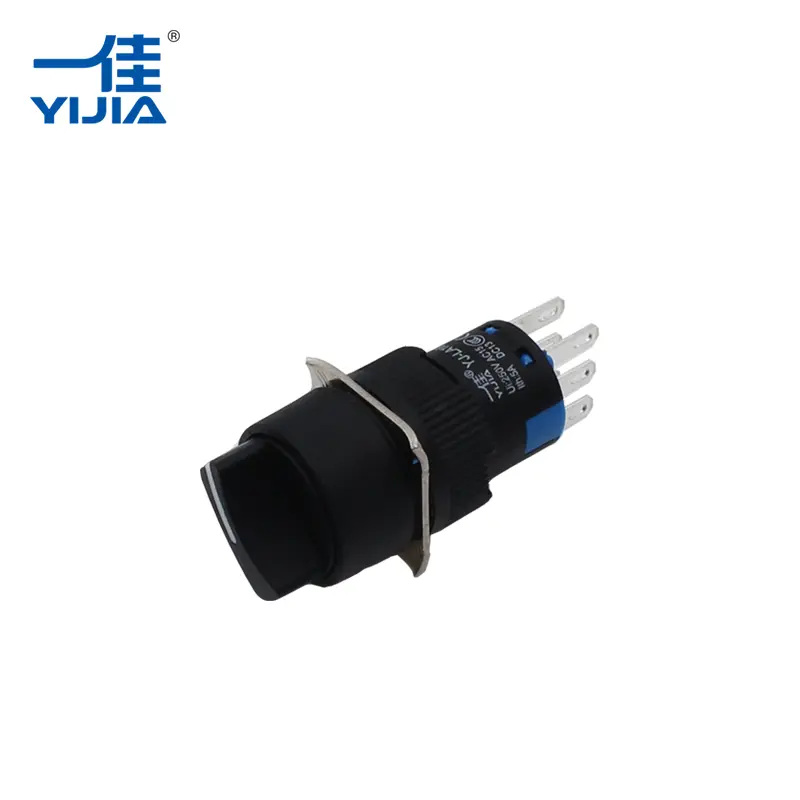

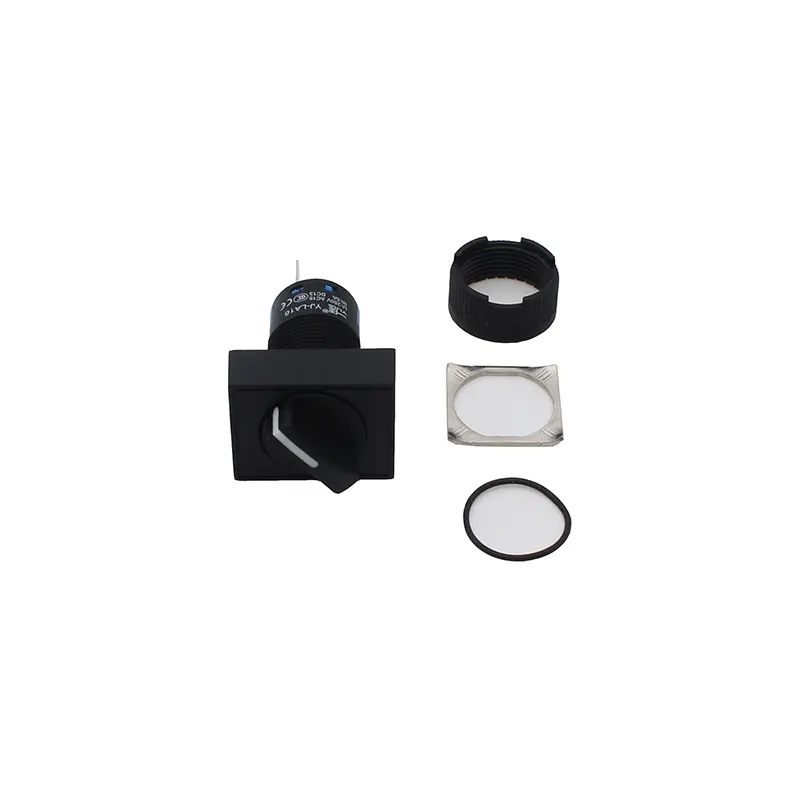

Yijia Two Position Selector Switch is a standard 16mm installation size plastic rotary switch, suitable for various industrial control scenarios that require two-state circuit switching. The product adopts high-performance materials including PBT, PA66, silver alloy and brass, which effectively ensures long mechanical and electrical service life. With IP40 protection level and CCC, TUV, CE certifications, the two position selector switch has a current capacity of 5A, which can stably control power or signal transmission. For customer needs, the two position selector switch can be equipped with high-intensity LED lights (optional) to display the system state, and the LED color can be selected from red, blue, yellow, green and white. Yijia has its own design team and factory, which can provide customized services for the two position selector switch to meet the specific needs of different procurement scenarios.
| Parameter Name | Specification |
|---|---|
| Product Name | Two Position Selector Switch |
| Brand | Yijia |
| Installation Dimension | 16mm (Standard Size) |
| Material | PBT, PA66 (Engineering Plastic), Silver Alloy (Contacts), Brass (Pins) |
| Current Capacity | 5A |
| Contact Structure | 1NO1NC / 2NO2NC |
| Contact Resistance | ≤50mΩ |
| Mechanical Life | 500,000 Cycles |
| Electrical Life | 100,000 Cycles |
| LED Life (Optional) | 50,000 Hours (High-Brightness) |
| Protection Level | IP40 |
| Certifications | CCC, TUV, CE; RoHS (Customized) |
| LED Options | Red, Blue, Yellow, Green, White (Optional) |
| Customization | Supported |
Basic Parameter Description
The Yijia Two Position Selector Switch adopts a standard 16mm mounting hole size, which is compatible with most industrial control cabinets, consoles and distribution boxes, facilitating installation and replacement. The 5A current capacity can meet the control needs of most low-voltage circuits, including power control and signal switching. The contact structure of 1NO1NC/2NO2NC provides flexible circuit configuration options for different application scenarios. The IP40 protection level can effectively prevent dust and small solid particles from entering the switch, ensuring stable operation in general industrial environments. The product has passed multiple international certifications, complying with the quality standards of global markets, and can be used in various countries and regions.
Production Advantages
1. Professional Manufacturing Strength
Yijia Industrial Electrical Co., Ltd. is a professional and large-scale industrial control product manufacturing enterprise in China, with many years of production experience and international market research capabilities. The company has its own design team and factory, which can independently complete the design, research and development, production and testing of the two position selector switch, ensuring product quality from the source.
2. High-Quality Material Selection
The two position selector switch is made of high-performance PBT and PA66 engineering plastics, which have good heat resistance, impact resistance and wear resistance. The silver alloy contacts have low contact resistance, good electrical conductivity and strong oxidation resistance, effectively reducing contact heating and extending the service life of the switch. The brass pins have high hardness and good electrical conductivity, ensuring stable connection and reliable transmission.
3. Strict Quality Control
Yijia has passed the ISO9001 international quality management system, and has established a complete quality control system from raw material procurement to product delivery. Each two position selector switch undergoes strict testing, including electrical performance testing, mechanical performance testing and environmental adaptability testing, to ensure that each product meets the set standards and can operate stably in various working environments.
4. Advanced Production Equipment
The company is equipped with advanced production equipment and modern management mode, which improves production efficiency while ensuring product consistency. The automated production line reduces manual operation errors, and the precision testing equipment ensures the accuracy of product parameters, making the two position selector switch have stable performance and reliable quality.
Application Scenarios
The Yijia Two Position Selector Switch is widely used in various electric power control fields and mechanical operation control fields, mainly used to switch the circuit mode between two states. Its specific application scenarios include:
Industrial control consoles and control cabinets (boxes), used for switching between different working modes of equipment
Distribution boxes (cabinets) and instrument boxes (cabinets), used for power on/off control or signal switching
Mechanical equipment, such as machine tools, conveyors, pumps, etc., used for mode switching and operation control
Electronic equipment and electrical systems that require two-state switching, such as test equipment, control systems, etc.
The two position selector switch is suitable for various industrial environments, and its stable performance and durable quality make it an ideal choice for industrial control procurement.
Function and Value of Yijia Two Position Selector Switch
Realize two-state switching of the circuit, which can be used for power control, signal switching and mode switching
Optional high-intensity LED lights, which can clearly display the working state of the system, facilitating operation and maintenance
Stable electrical performance, low contact resistance, ensuring reliable transmission of current and signals
Standard 16mm installation size, easy to install and replace, compatible with most industrial control equipment
