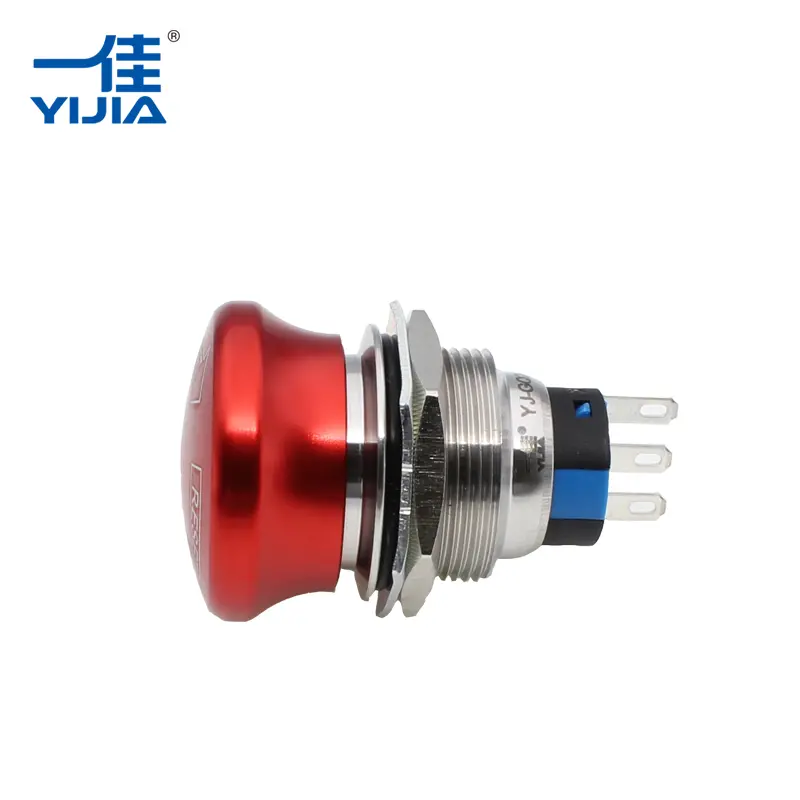

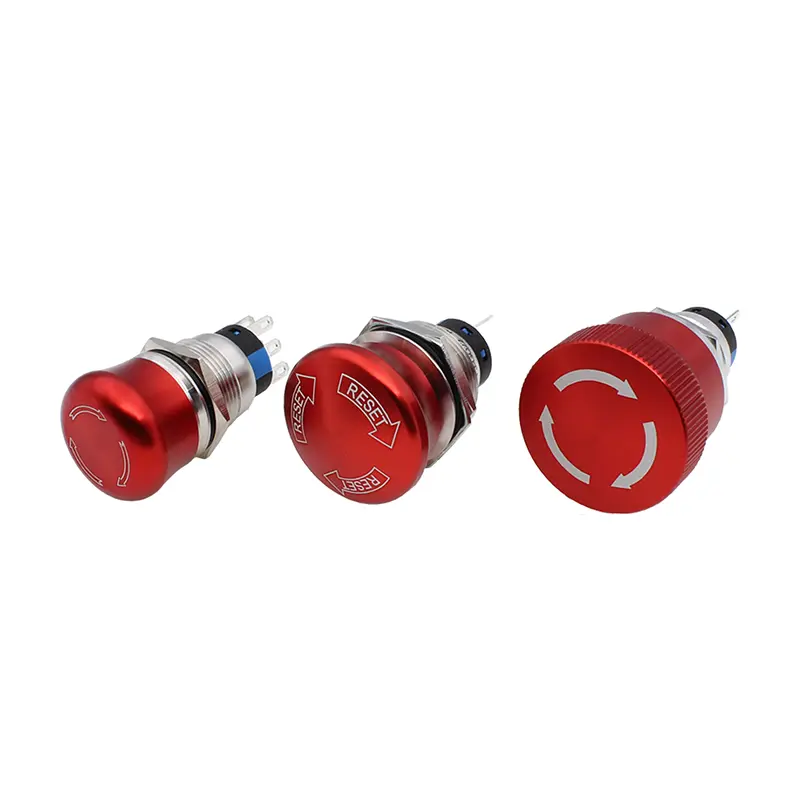

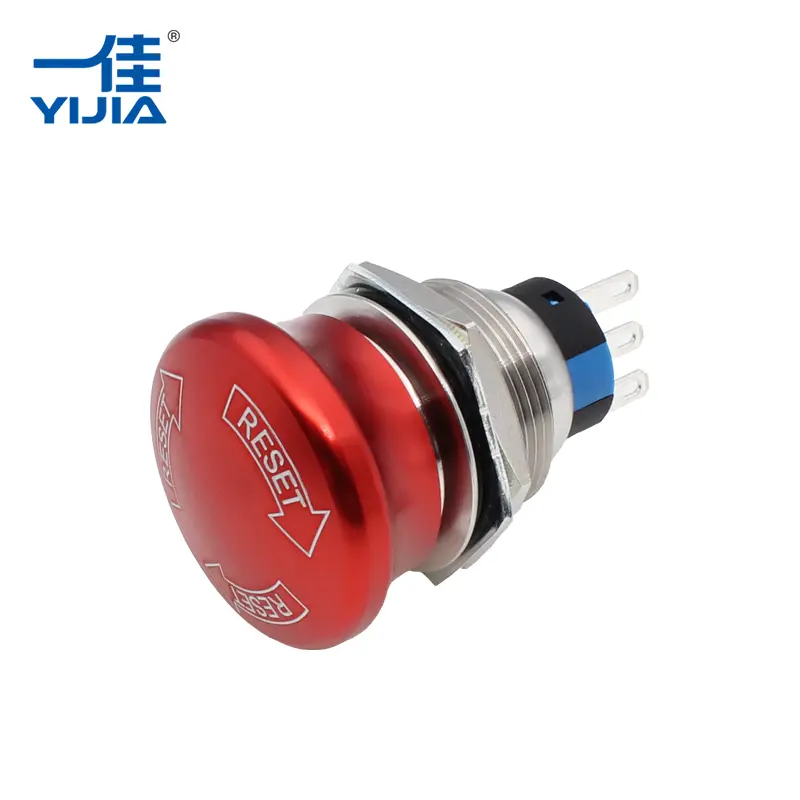

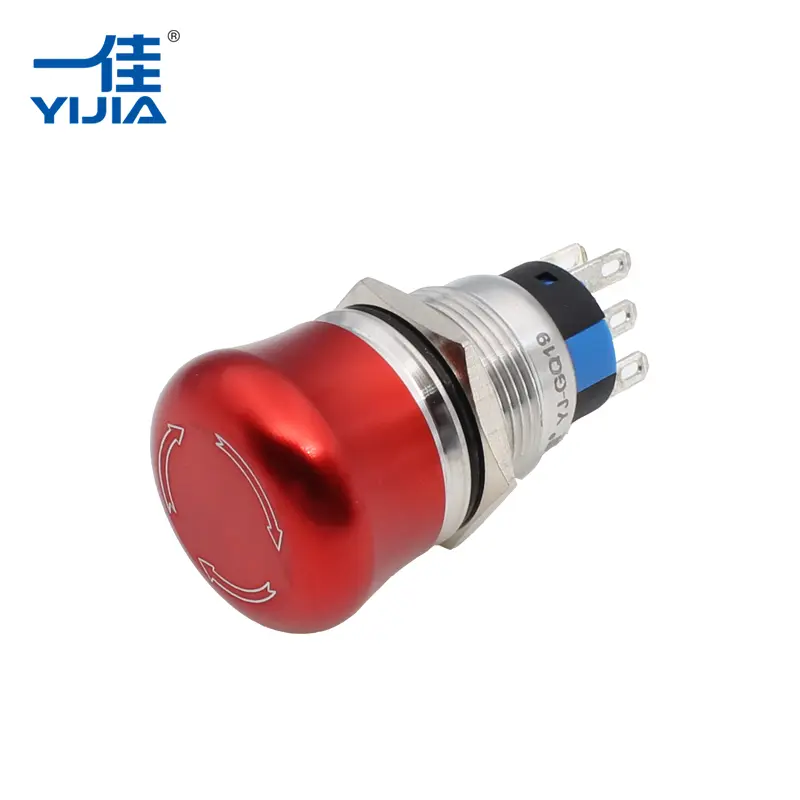

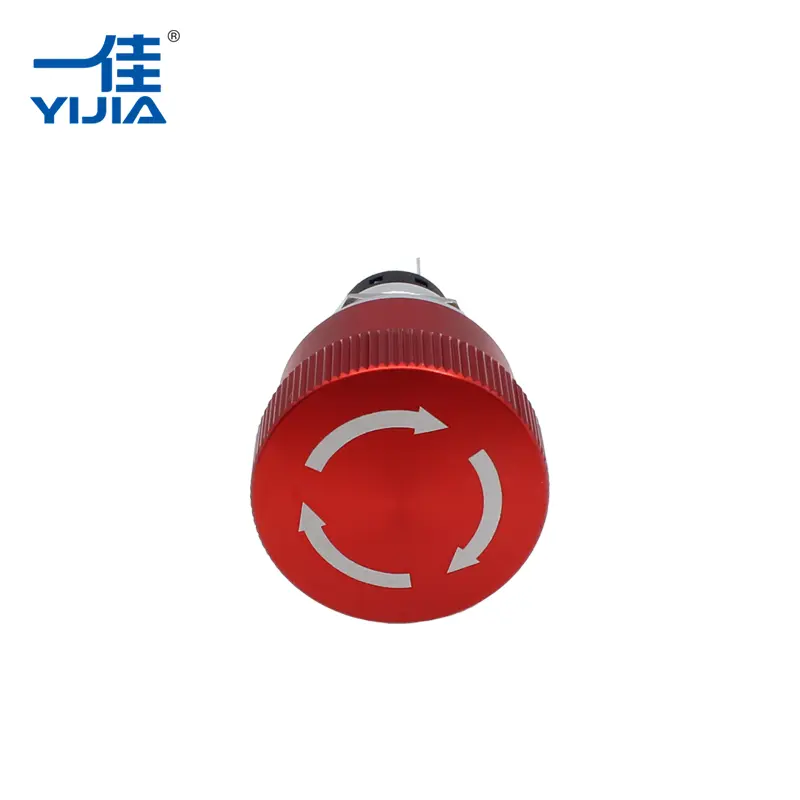

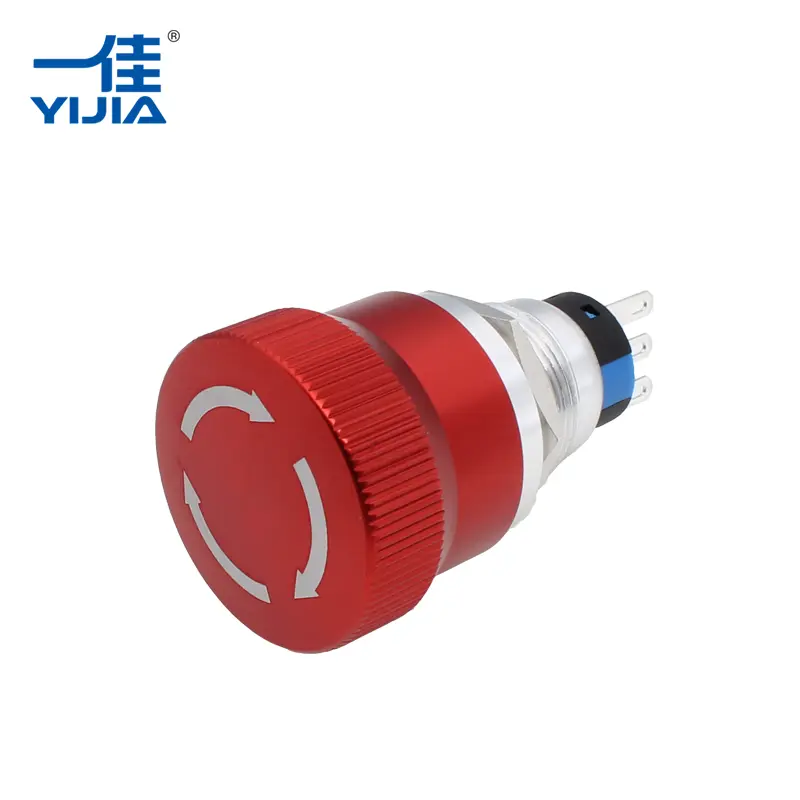

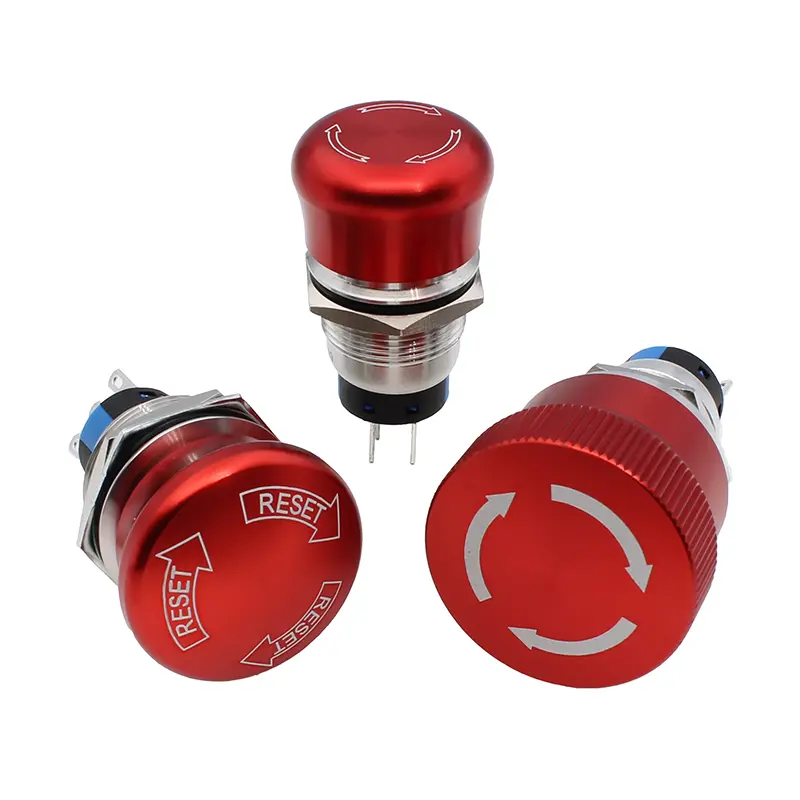

Red Emergency Button

Red Emergency Button is the switch used to stop the machinery or break down the circuit in case of emergencies, that request to stop. It offers durability and reliability with cost-effective. It uses silver alloy material contacts. Usually the emergency button must be easy to identify. For the identification, we design the head of push button with red color and special symbol to show the emergency. And the it uses the laser technology process to make the symbol, to be low cost and environmentally friendly, and it is more convenient to customize product for different demand. YIJIA is the Red Emergency Button suppliers, specializing in push button for more than 20 years, with its own injection molding and stamping processes, to ensure product quality and materials.

Features & Benefits

● 16mm/19mm/22mm multi mounting hole size
● Chrome-plated brass/stainless steel shell
● 5A current capacity
● 1NO1NC/2NO2NC contact structure
● High-quality silver alloy contact
● Lower contact resistance≤50mΩ
● 500,000 cycles long mechanical life
● 100,000 cycles long electrical life
● IP43 protection level,IP65(customized)
● CCC,TUV,CE
● RoHS,Reach(customized)
● Classy red emergency button factory
● Button switch made in china

How to select the appropriate type of push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

①　the dimensions of push button to install: 16mm.
②　the load current you need to control: 3A.
③　the type of head part: plat head without light.
④　choose the contact structure: 1NO1NC/2NO2NC.
⑤　Operation mode: Momentary or Latching.
⑥　LED volt and color(if need led): DC 24V GREEN.
⑦　special request: waterproof, Custom symbol, need socket...
