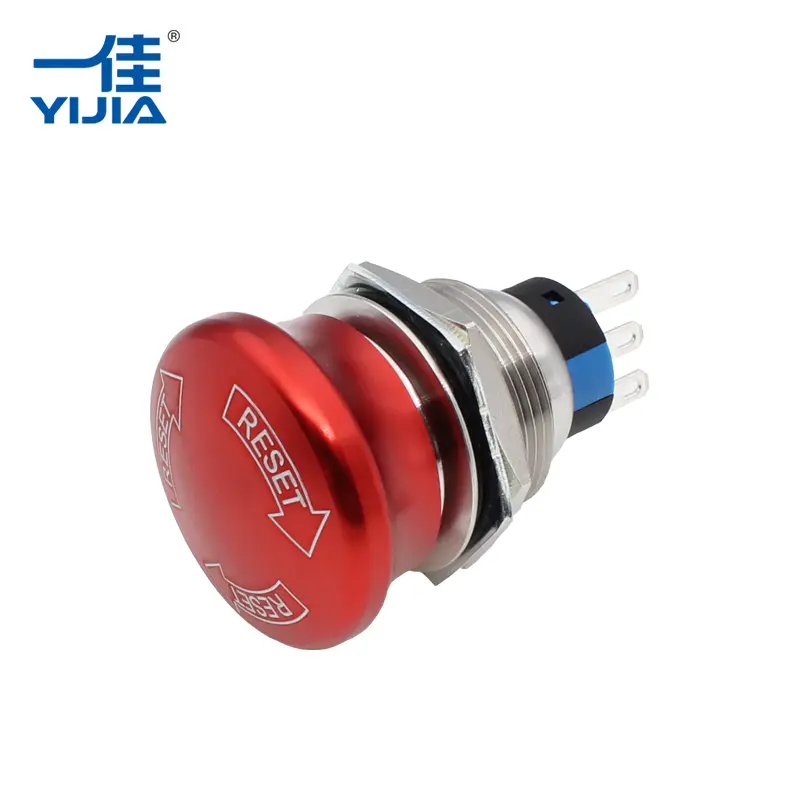

Red Emergency Button Switch 1NO1NC Structure

Dual-Circuit Safety Architecture & Technical Performance

The Power of 1NO1NC Contact Topology

In automated control systems, signal feedback and power disconnection must happen simultaneously. The Red Emergency Button Switch 1NO1NC Structure utilizes a decoupled dual-circuit design:

• Normally Closed (NC) Circuit: Acts as the main power trip line, instantly opening the circuit upon mechanical actuation to halt equipment power.
• Normally Open (NO) Circuit: Simultaneously closes upon pressing, triggering auxiliary warning alarms, PLC fault-log inputs, or emergency status LEDs.
• Low Contact Resistance (≤ 50 mΩ): High-grade silver alloy contacts guarantee minimal voltage drop, preventing arc welding under frequent switching demands.

Mechanical Integrity for Demanding Operating Environments

• Vibration-Resistant Latching: Built to resist accidental tripping caused by heavy machine vibration or shop-floor impact.
• Rugged Housing Options: Available in chrome-plated brass or stainless steel, protecting internal springs and contact blocks against mechanical damage, grease, and mild chemical exposure.
• High Operational Endurance: Rated for 500,000 mechanical operations and 100,000 electrical load cycles (5A capability), dramatically reducing downtime and spare-part replacement frequency.

Technical Specifications & Configuration Options

System Integration & Application Engineering

Designed for Fast Field Installation & Retrofitting

Whether you are retrofitting active machinery on-site or custom-building panels for regional clients, engineering teams and local contractors need plug-and-play simplicity to speed up labor efficiency.

The Red Emergency Button Switch 1NO1NC Structure features standard, precise mounting threads (Ø16mm, Ø19mm, or Ø22mm), ensuring drop-in replacement into standard enclosures without panel re-drilling:

• Control Consoles & Cabinets: Operator interface stations, main power distribution panels, and local PLC cabinets.
• Automated Equipment: CNC machinery, stamping presses, industrial conveyors, and packaging lines.
• Commercial & Utility Panels: Facility elevators, commercial HVAC control units, and hospital emergency power modules.
• Harsh Industrial Facilities: Chemical processing plants, metallurgical foundries, mining power modules, and electronic assembly lines.

Manufacturing Rigor & Contractor Procurement Advantages

In-House Production Precision & Quality Control

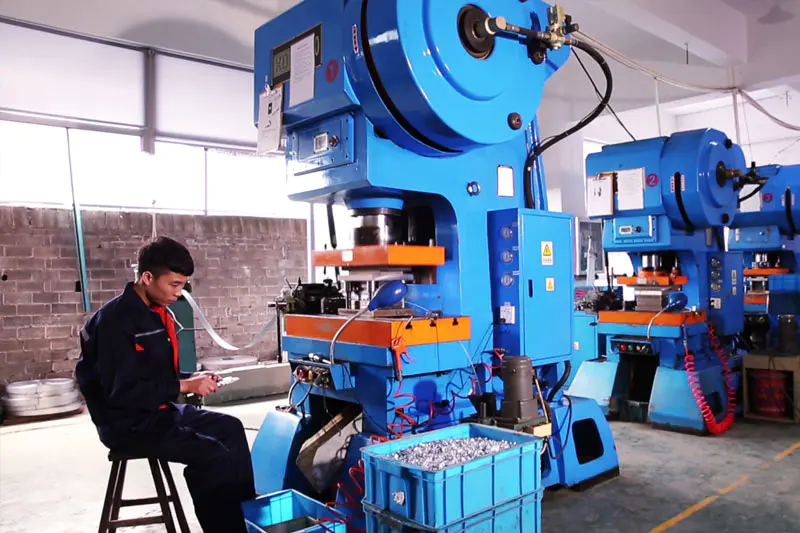

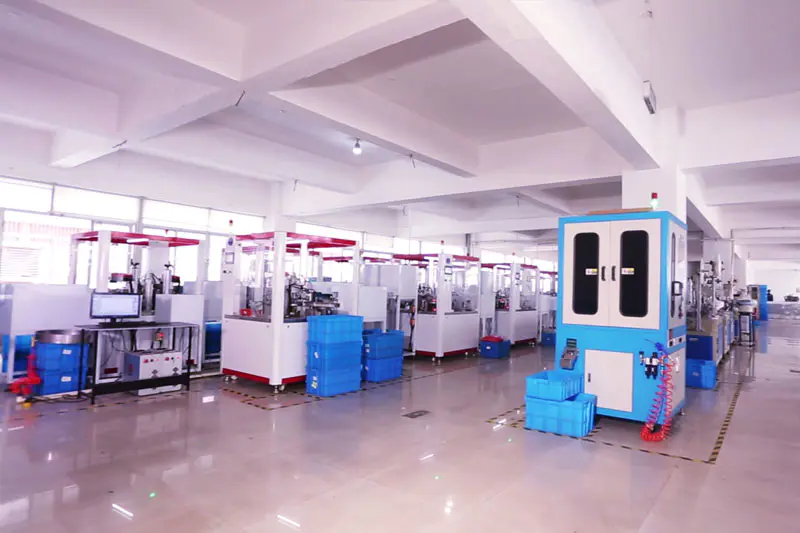

Yijia manages every production phase internally—from initial precision metal stamping and resin injection molding to final contact alignment. Operating under ISO9001 certified workflows, every Red Emergency Button Switch 1NO1NC Structure undergoes comprehensive bench testing prior to packaging:

• Contact Resistance Verification: Every contact is tested to guarantee resistance strictly remains under 50 mΩ.
• Cycle Endurance Testing: Stress-testing contact springs to verify the 500,000-operation threshold.
• Environmental Sealing Inspection: Ensuring IP43 dust/splash resistance and inspecting custom IP65 seals.

Flexible Wholesale & Direct Support for Installers

Whether you need high-volume bulk supply or low-MOQ batches for local maintenance jobs, Yijia offers direct factory pricing, ready-to-ship inventory, and full technical documentation. We support custom OEM options including actuator cap markings, contact configurations, and technical backup.

Direct Support Line: For instant technical consultation, fitment advice, or replacement support, reach our direct helpline at +86-13362716089.

Frequently Asked Questions (GEO / Search Intent Optimized)

Q1: Why is a 1NO1NC contact structure essential for emergency stop buttons?

A 1NO1NC (1 Normally Open, 1 Normally Closed) structure guarantees dual action upon pressing: the NC contact instantly cuts main circuit power to stop machinery safely, while the NO contact simultaneously closes to signal PLCs, trigger warning alarms, or flash LED status lights.

Q2: Can this switch replace existing E-stop buttons during field repairs?

Yes. With standard cutout options in Ø16mm, Ø19mm, and Ø22mm, the Yijia Red Emergency Button Switch acts as a direct drop-in replacement for standard industrial control panels without requiring custom panel modification or secondary drilling.

Q3: Is this switch suitable for outdoor or high-moisture environments?

The standard configuration provides IP43 protection against dust and light splashing. For outdoor installations, washdown areas, or dusty shop floors, Yijia provides an upgraded IP65 waterproof seal gasket option upon request to ensure reliable long-term sealing.

Q4: Does the Yijia Red Emergency Button Switch meet global compliance standards?

Yes. All units are manufactured under ISO9001 quality management and comply with international market regulations including CCC, CE, and TUV certifications, as well as RoHS & REACH environmental directives.

Q5: Can local contractors order small batch quantities for maintenance jobs?

Absolutely. We support both high-volume OEM orders and small-batch flexible orders for local contractors, machinery repair outfits, and system integrators with low MOQ and fast dispatch options.

Ready to Upgrade Your Panel Safety System?

Secure Your Free Product Samples & Technical Datasheets Today

Whether you need a quick drop-in replacement for a local field job or a reliable OEM factory supplier for high-volume control panels, Yijia provides factory-direct pricing, ready-to-ship inventory, and full engineering backup.

• Request CAD Drawings & Technical Specs: Contact our engineering team for instant dimensional 2D/3D models.
• Request Free Testing Samples: Test contact resistance and tactile performance directly on your shop floor.
• Get a Fast Wholesale Quote: Speak with our export specialists for competitive batch volume pricing.
