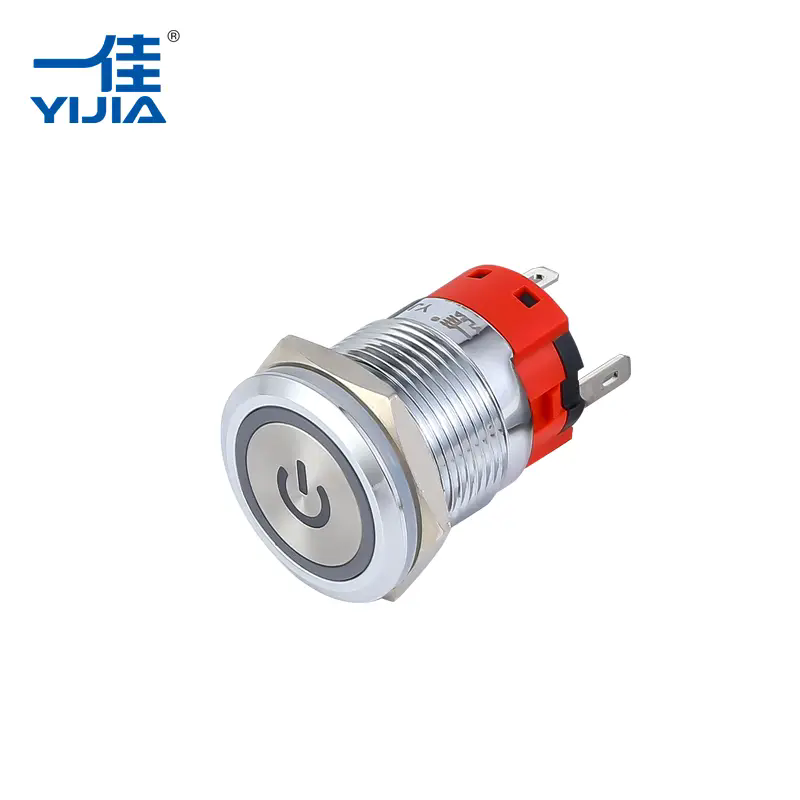

In industrial design, off-the-shelf components often sacrifice functionality for convenience. The Customizable Push Button Switch revolutionizes this paradigm, empowering engineers to control every detail—from tactile feedback to emergency symbols—to create a seamless human-machine interface. At YIJIA, we combine over 20 years of electromechanical expertise with cutting-edge manufacturing technology to create switches that become an intrinsic extension of your device.
Color: Customizable to match the housing
Symbol:
Surface Laser Engraving: Available in metal or plastic, with a depth accuracy of 0.2mm
Laser Cutting: Backlit stainless steel logo (380V LED transmittance ≥90%)
Pad Printing: Multi-color logo, with an overlay accuracy of 0.1mm
Lens Effect: Diffuse, clear, or domed polycarbonate
| Parameter | Standard Range | Custom Extreme |
| Voltage Rating | 3-380V AC/DC | Up to 600V DC |
| Contact Type | NO/NC/SPDT | 4PDT hybrid configurations |
| LED Integration | Single-color (5 options) | RGB+White (16M colors) |
| Sealing | IP65 | IP69K (steam-jet proof) |
Actuation Force: 1.5N to 8N (±0.2N tolerance)
Travel: Customizable from 0.5mm to 6mm
Mounting Method: Panel mount, PCB, snap-on, or threaded bushing
Contact Life: 200,000 cycles @ 5A/250VAC (IEC 61058)
Insulation Resistance: >1000 MΩ after 56 days of humidity testing
Arc Suppression: Opening Time <3μs (UL 508 Certified)
Thermal Shock: -40°C to +125°C (500 cycles; ΔR <2%)
Chemical Corrosion: Resistant to Isopropyl Alcohol (IPA), Skydrol LD-4, and 10% H₂SO₄
UV Stability: ΔE <1.5 after 2000 hours of QUV exposure
Termination Type: Solder Lugs, Quick Connect Terminals, Flying Leads (up to 2 meters)
Cable Specifications: UL3266/TEW (300V) to UL1015 (600V)
Shielding Options for EMI-Sensitive Applications
Connector Systems: M12, M8, AMP Superseal
Q: What is the minimum order quantity for the Customizable Push Button Switch?
A: YIJIA offers a zero-MOQ symbol customization service. Laser engraving/pad printing setup requires no tooling fee. Due to the precision of the tooling, a minimum order of 500 pieces is required for backlit icons.
Q: Can I combine multiple custom functions in one switch?
A: Absolutely. We've documented projects integrating:
Two-color RGB lighting with programmable controller
Laser-cut ISO 7000 emergency symbols
IP69K-rated FKM seals
0.3mm actuation stroke suitable for medical robotics
Q: How does the delivery time of a customizable push button switch compare to standard parts?
A: Standardized custom platforms ship within 10 days. Novel designs require 15-25 days. Expedited 7-day service incurs a 30% premium.
-
