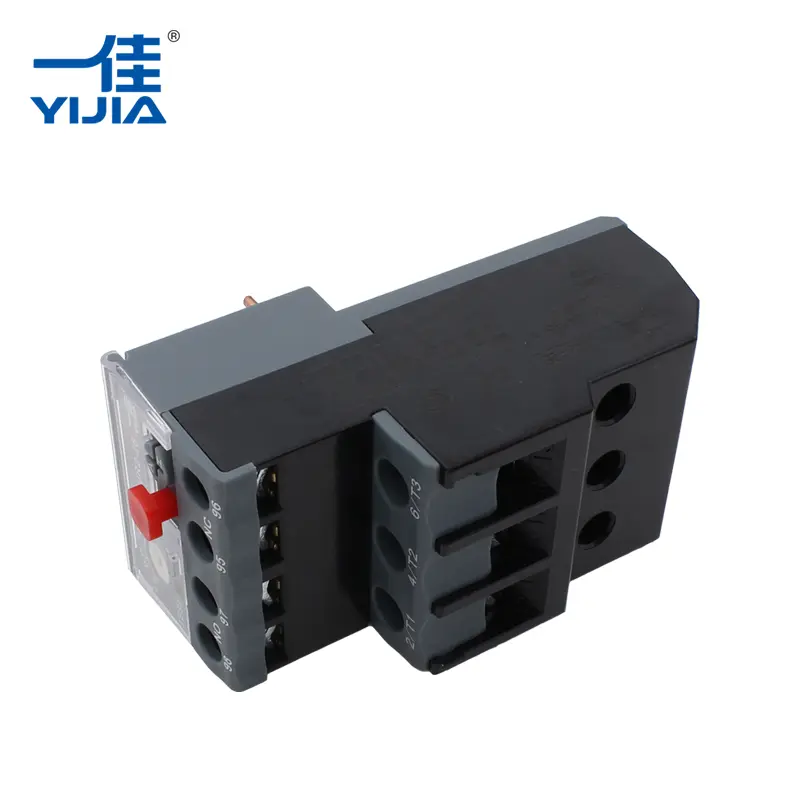

Thermal Overload Relay Motor Overheating Protection

Yijia Thermal Overload Relay Motor Overheating Protection Manufacturer provides industrial motor protection components designed for electrical control systems, AC contactor assemblies, distribution cabinets and automation equipment. Developed by Yijia Industrial Electrical Co., Ltd., this thermal protection device helps prevent motor damage caused by prolonged overload operation, abnormal current conditions and phase failure through a reliable bimetallic thermal mechanism.

It is engineered as an essential protection accessory for AC contactors, allowing industrial equipment manufacturers, panel builders and automation integrators to improve motor safety and operational reliability. With adjustable current ranges, temperature compensation design and silver alloy contact materials, Yijia relays provide stable switching performance for various industrial applications.

Industrial Thermal Protection Structure and Working Principle

The Thermal Overload Relay Motor Overheating Protection operates by monitoring motor current during operation. When excessive current continues for a certain period, the internal bimetallic strip generates heat and changes shape, activating the protection mechanism to disconnect the control circuit and prevent overheating damage.

The main structural components include:

Bimetallic Thermal Sensing Element

• Uses a temperature-sensitive bimetallic strip mechanism.
• Responds to abnormal current increases caused by motor overload conditions.
• Provides stable protection performance under different operating environments.
• Supports temperature compensation to improve reliability during temperature variations.

Electrical Contact System

• Equipped with silver alloy contacts for reliable conductivity.
• Reduces contact wear during repeated switching operations.
• Supports long service life in industrial control applications.
• Provides stable auxiliary contact operation for protection circuits.

Mechanical Adjustment Structure

• Adjustable current setting allows users to match different motor rated currents.
• Manual and automatic reset functions provide flexible operation options.
• Compact design allows installation with compatible AC contactor systems.

Technical Specifications

The following specifications represent the standard technical characteristics of Yijia Thermal Overload Relay Motor Overheating Protection series.

Key Advantages for Industrial Buyers

The Thermal Overload Relay Motor Overheating Protection is designed according to practical industrial control requirements, helping buyers reduce equipment downtime and improve electrical system safety.

Adjustable Current Protection

• Allows engineers to set protection values according to motor operating requirements.
• Helps avoid unnecessary shutdown caused by unsuitable protection settings.
• Supports different motor applications through multiple current range options.

Reliable Overload and Phase Failure Protection

• Detects abnormal operating conditions caused by excessive current.
• Helps reduce risks associated with motor overheating.
• Suitable for industrial equipment requiring continuous operation monitoring.

Compact Integration with AC Contactors

• Designed to work as an accessory component for AC contactors.
• Saves installation space inside electrical control cabinets.
• Simplifies assembly for panel manufacturers and automation system builders.

Durable Contact Performance

• Silver alloy contacts provide good electrical conductivity.
• Suitable for repeated control circuit switching.
• Supports stable operation in industrial environments.

Material Selection and Manufacturing Quality

Yijia Industrial Electrical Co., Ltd. focuses on manufacturing reliable industrial control components through standardized production management and quality inspection procedures.

The Thermal Overload Relay Motor Overheating Protection adopts carefully selected materials:

Housing Materials

• High-quality flame-retardant plastic housing.
• Provides mechanical protection for internal components.
• Designed for industrial electrical installation environments.

Internal Electrical Components

• Precision bimetallic thermal elements ensure consistent response.
• Silver alloy contact materials improve electrical reliability.
• Carefully controlled manufacturing processes support product consistency.

Quality Management

Yijia operates under the ISO9001 international quality management system. The company has professional production equipment and modern management processes to manufacture relays, AC contactors, push button switches and signal lamps for international markets.

Products have obtained:

• CCC certification
• CE certification
• RoHS compliance

These certifications support global buyers requiring controlled quality standards for industrial electrical components.

Applications in Industrial Control Systems

The Thermal Overload Relay Motor Overheating Protection is widely applied in electrical control fields where motor protection and reliable circuit management are required.

Control Cabinets

Used in industrial control cabinets to provide motor overload monitoring and protection functions.

Typical applications include:

• Manufacturing equipment
• Automation machinery
• Electrical control panels
• Industrial production lines

Distribution Boxes and Electrical Systems

The relay helps improve safety management in distribution systems by protecting motors from abnormal current conditions.

Applications include:

• Power distribution cabinets
• Motor control centers
• Industrial electrical systems

Machine Operation Control

Combined with AC contactors and other control components, the relay supports reliable machine operation management.

Common integrated components include:

• AC contactors
• Push button switches
• Signal lamps
• Control relays

Supplier Selection Considerations for Industrial Buyers

When purchasing the Thermal Overload Relay Motor Overheating Protection, professional buyers usually evaluate protection reliability, compatibility, certification requirements and supplier capability. Yijia Industrial Electrical Co., Ltd. provides technical support and manufacturing experience to help customers select suitable solutions.

Compatibility with Control Systems

Before ordering, buyers should confirm:

Motor rated current requirements.

Required adjustment current range.

Matching AC contactor specifications.

Installation requirements inside control cabinets.

Reset operation requirements.

The correct selection helps ensure stable protection performance and reduces installation adjustments during equipment assembly.

Flexible Reset Options

Yijia thermal overload relays support:

Manual reset mode for applications requiring operator confirmation after protection activation.

Automatic reset mode for systems requiring automatic recovery after temporary overload conditions.

Different reset configurations allow engineers to select suitable operation methods according to machine safety requirements.

OEM and ODM Support

Yijia Industrial Electrical Co., Ltd. provides customization support for industrial control products according to customer requirements.

Available support includes:

Product structure adjustment according to application requirements.

Customized industrial control component solutions.

Assistance with product selection and technical matching.

Support for different electrical control applications.

With experience in manufacturing relays, AC contactors, push button switches and signal lamps, Yijia supports international distributors, machine manufacturers and electrical equipment suppliers.

Why Choose Yijia Industrial Electrical Co., Ltd.

Yijia Industrial Electrical Co., Ltd. specializes in industrial electrical control components and has accumulated years of manufacturing experience in the international power electronics market.

The company advantages include:

Professional Manufacturing Capability

Focused on industrial control components including relays, AC contactors, push button switches and signal lamps.

Equipped with advanced production equipment and modern management systems.

Continuously improves product design according to market requirements.

Complete Industrial Control Product Range

Yijia supplies various electrical control components, including:

Thermal overload relays

Intermediate relays

Time relays

Solid state relays

AC contactors

Limit switches

Metal signal lamps

Plastic signal lamps

Push button switches

Button accessories

This product range allows customers to source multiple control components from one supplier.

Quality-Oriented Production Process

Quality is the foundation of Yijia manufacturing.

The company follows:

ISO9001 international quality management system.

Standardized production procedures.

Product inspection requirements before shipment.

Continuous improvement based on customer feedback.

How Does the Thermal Overload Relay Improve Motor Safety?

The Thermal Overload Relay Motor Overheating Protection improves motor protection by continuously monitoring operating current and responding when abnormal conditions occur.

Its protection process includes:

1. Motor current increases beyond the preset adjustment value.
2. Thermal elements generate heat according to overload conditions.
3. The bimetallic mechanism activates the protection action.
4. The control circuit is interrupted through auxiliary contacts.
5. The motor receives protection against continuous overheating risks.

This working principle makes it suitable for industrial equipment requiring reliable motor protection and stable operation.

Procurement and Service Process

Yijia provides a structured purchasing process to support international customers.

Technical Consultation

Before ordering, customers can provide:

Motor rated current.

Required protection range.

Installation requirements.

Control system configuration.

Yijia technical teams assist customers in selecting suitable relay specifications.

Quality Inspection Before Shipment

Each production batch follows quality management procedures to ensure products meet customer requirements before delivery.

Inspection focuses on:

Product structure.

Electrical contact performance.

Mechanical operation.

Appearance quality.

After-Sales Support

Yijia provides technical assistance for:

Product installation guidance.

Current adjustment instructions.

Application matching support.

Industrial control system consultation.

Customer feedback is considered an important part of continuous product improvement.

Frequently Asked Questions

What is the main function of a Thermal Overload Relay?

A Thermal Overload Relay protects electric motors from damage caused by prolonged overload conditions and abnormal current situations. It monitors current changes and activates protection when the preset limit is exceeded.

How should I select the correct current range?

The recommended selection method is to choose a relay where the motor rated current is within the adjustable range of the relay. Proper adjustment helps achieve suitable motor protection performance.

Can the relay work with an AC contactor?

Yes. The Thermal Overload Relay Motor Overheating Protection is designed as an accessory component commonly installed together with AC contactors in industrial control systems.

What certifications does Yijia provide?

Yijia products comply with international quality requirements and have obtained CCC, CE and RoHS certifications. The company also operates under the ISO9001 international quality management system.

Does Yijia provide OEM or ODM service?

Yes. Yijia provides OEM and ODM support for industrial electrical components according to customer requirements, including customized solutions for control switches, relays and related products.
