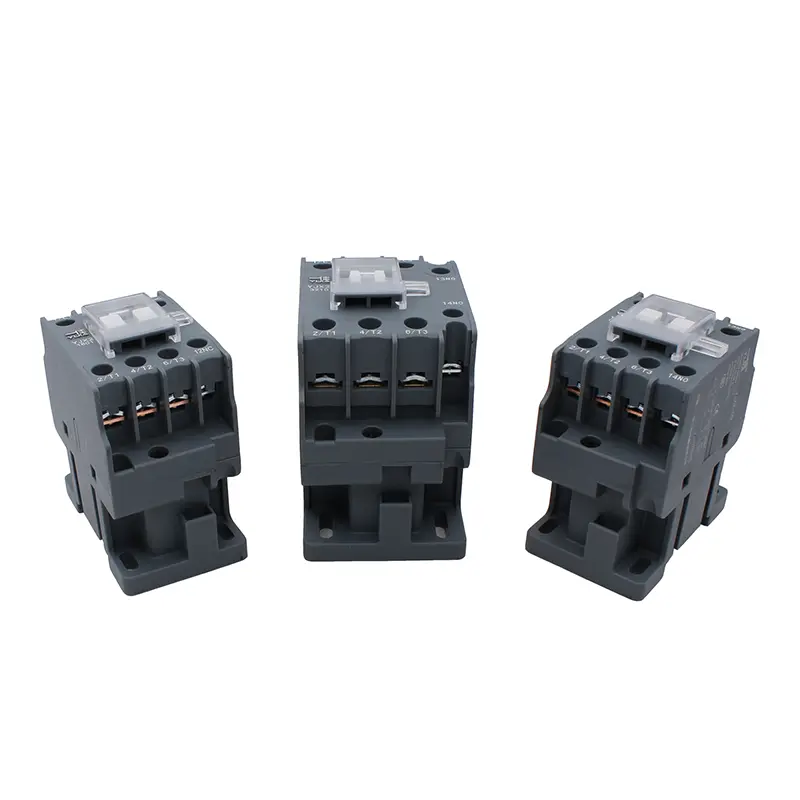

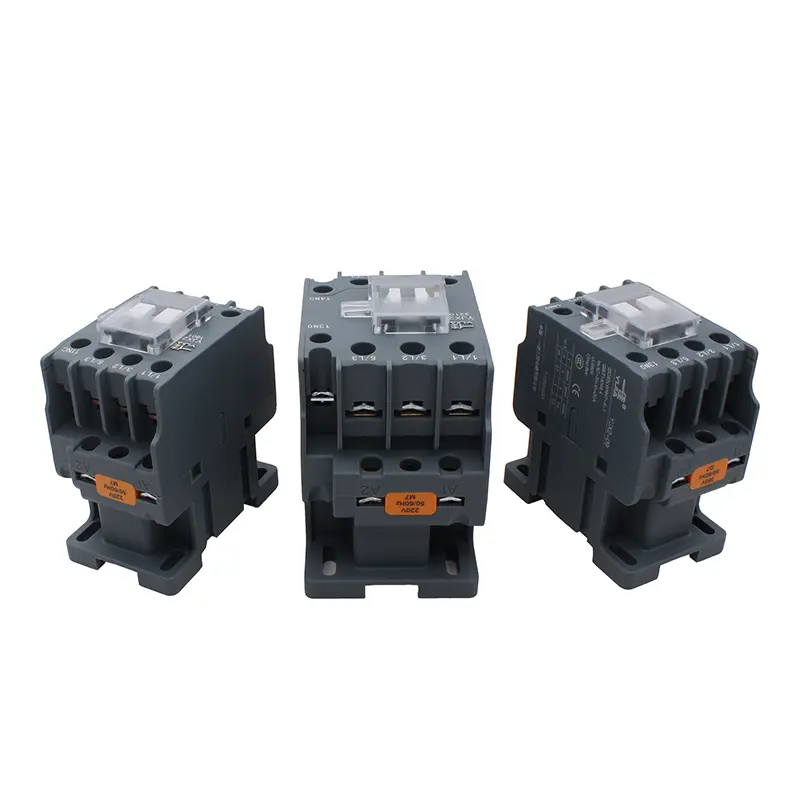

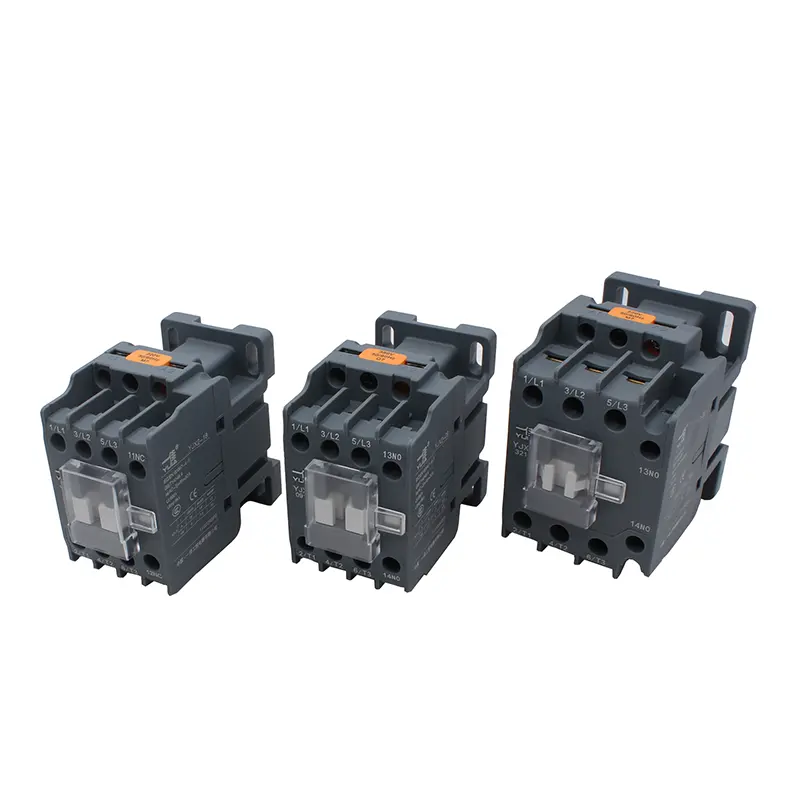

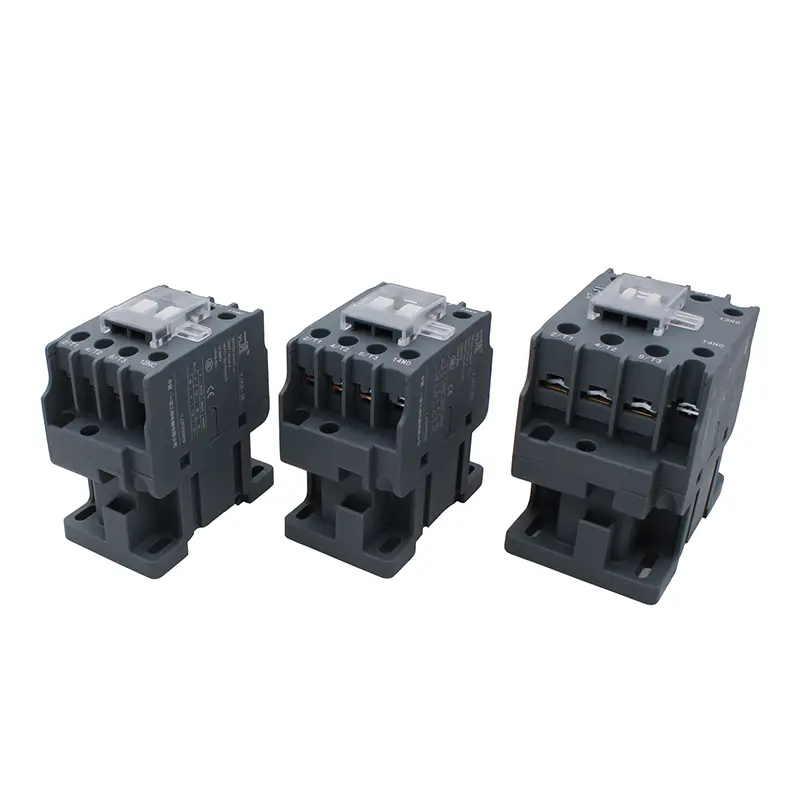

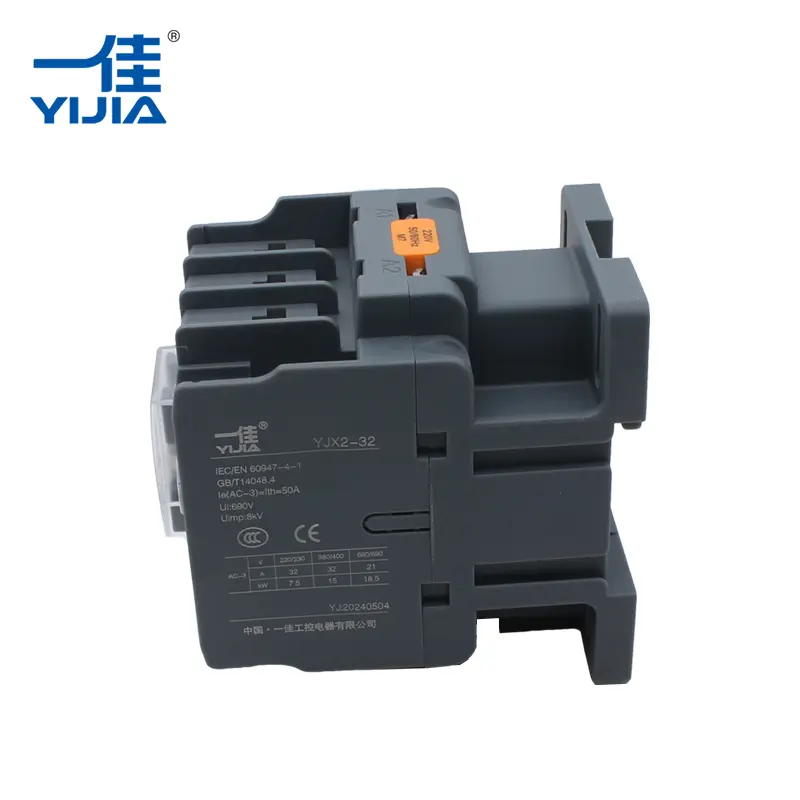

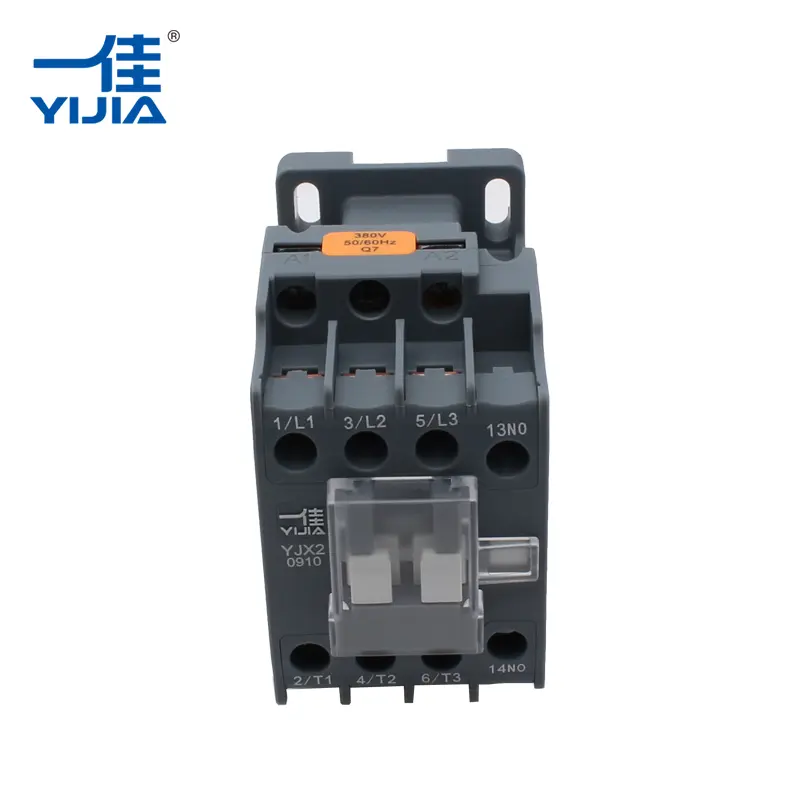

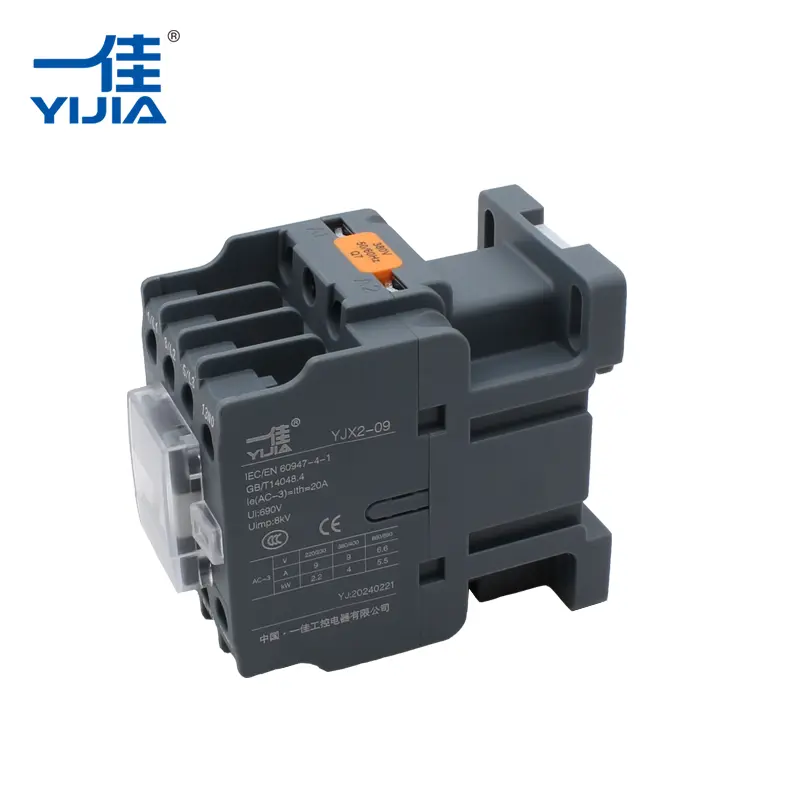

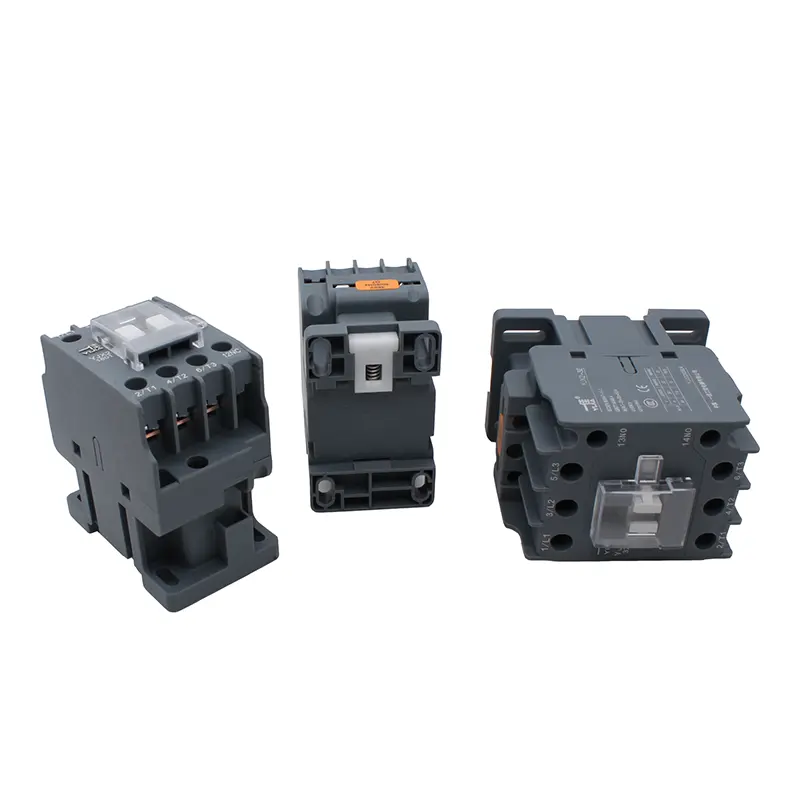

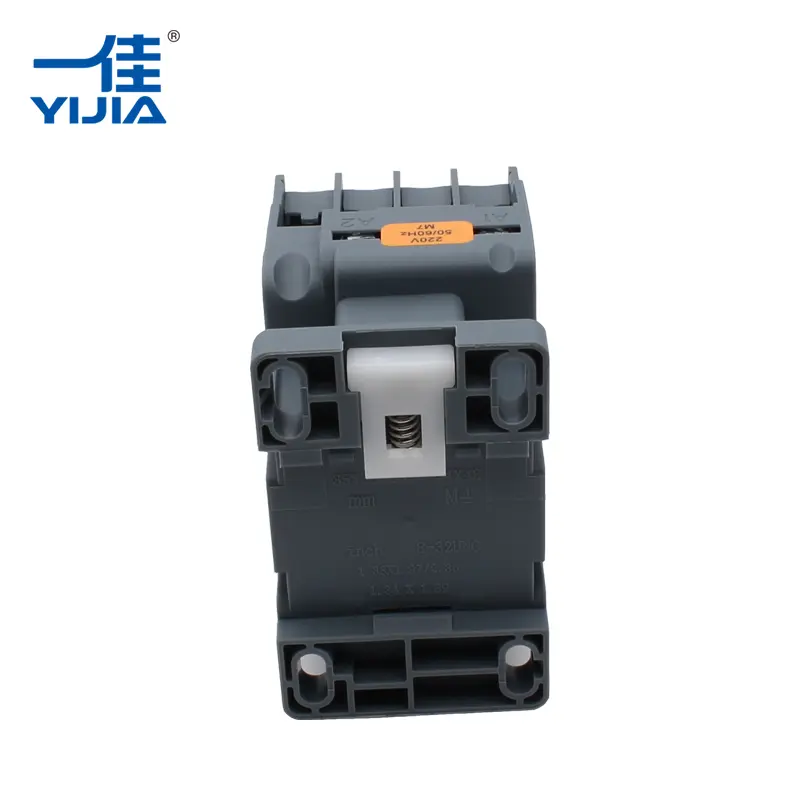

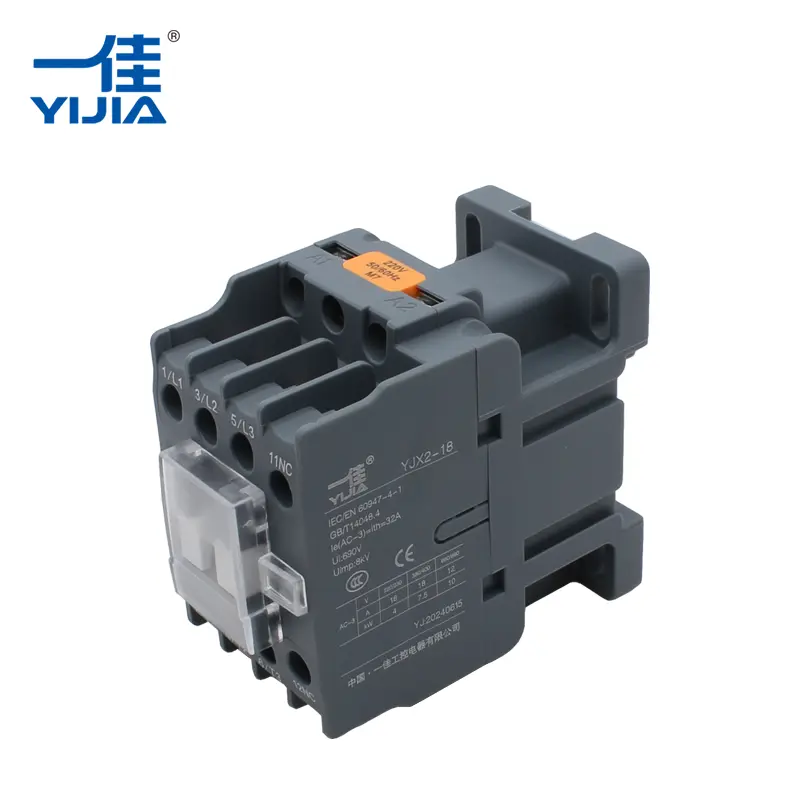

AC Contactor

AC contactor is a device with electromagnetic operation that is controlled by a signal circuit such a 24-volt, to switch the high current circuit. It is available in three-pole configurations, and realize three-phase electrical synchronization switching. And it has multi optional auxiliary contacts to choose. The coil voltage is range from 24V to 380V, to be suitable for different application. The AC contactor is widely used in elevators and lifts, motor control, power system control, pump control. YIJIA has the own advance production line to produce the AC contactor, focused on high-quality and low-cost. YIJIA electric company continuously and steadily provide high-quality products.

Features & Benefits

● Pure copper coil

● Silver alloy contacts

● High-strength silicon steel core

● Multi optional auxiliary contacts

● Compact design

● High-quality plastic

● CCC,CE

● Support to button switch OEM/ODM

● Offer quality and low price product

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

①　the dimensions of push button to install: 16mm.

②　the load current you need to control: 5A.

③　the type of head part: plat head without light.

④　choose the contact structure: 1NO1NC/2NO2NC

⑤　Operation mode: Momentary or Latching.

⑥　LED volt and color(if need led): DC 24V GREEN.

⑦　choose the materials of shell: Stainless steel or Brass clad chromium.

⑧　special request: waterproof, Custom symbol, need socket...
