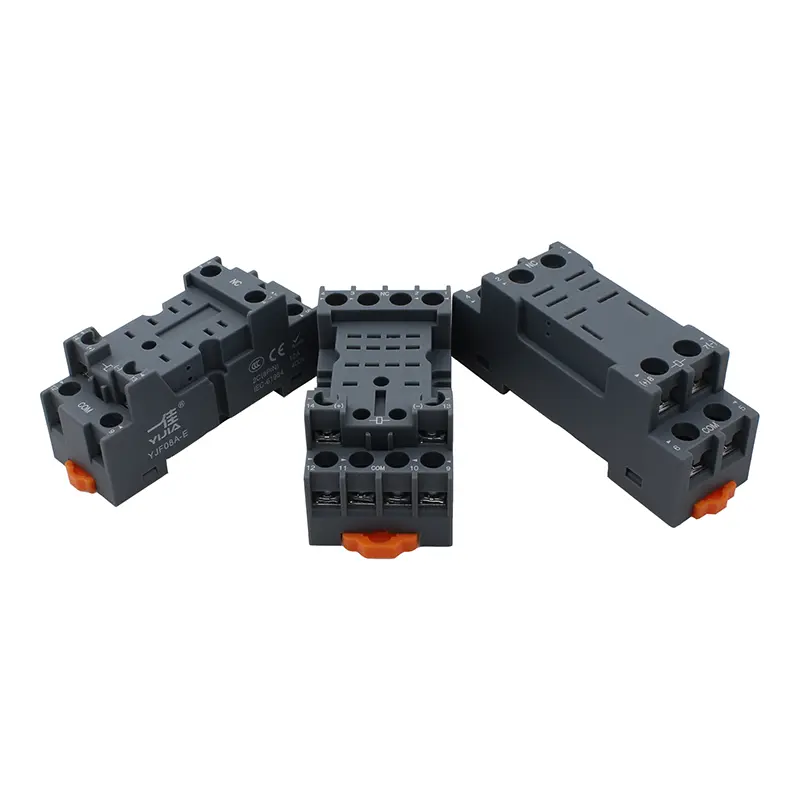

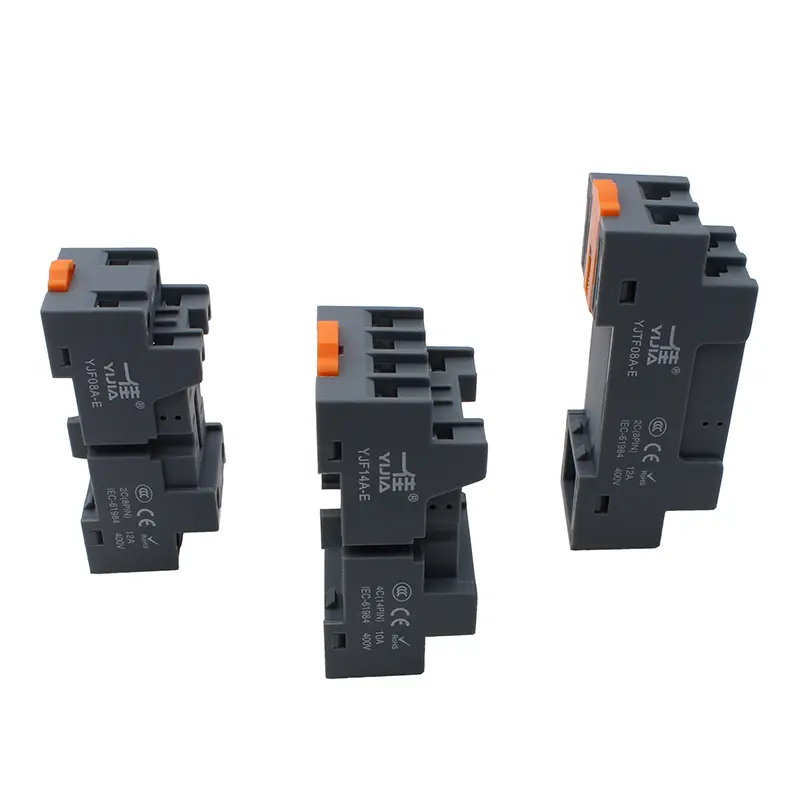

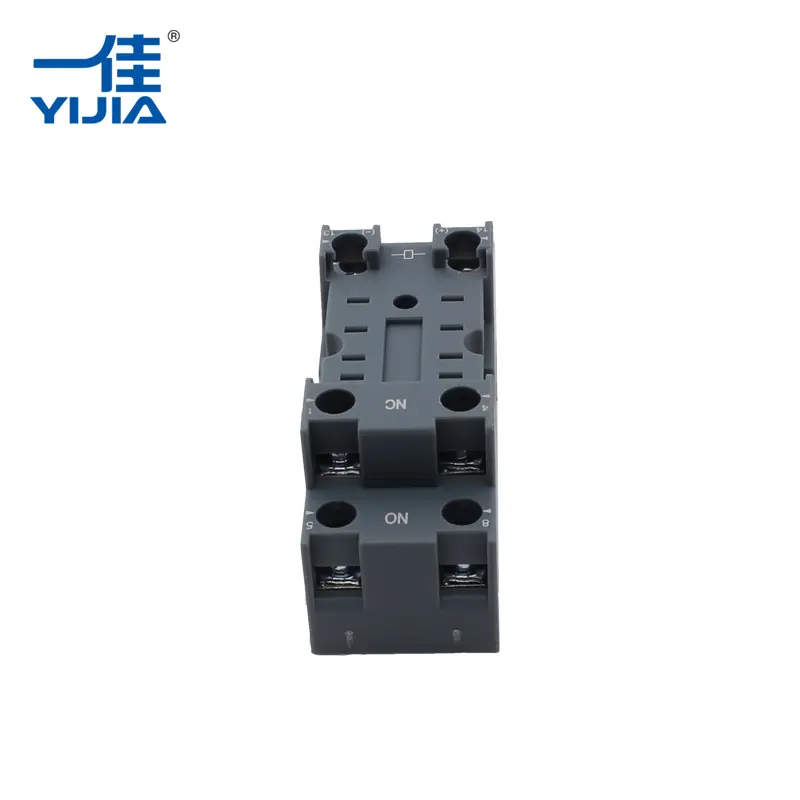

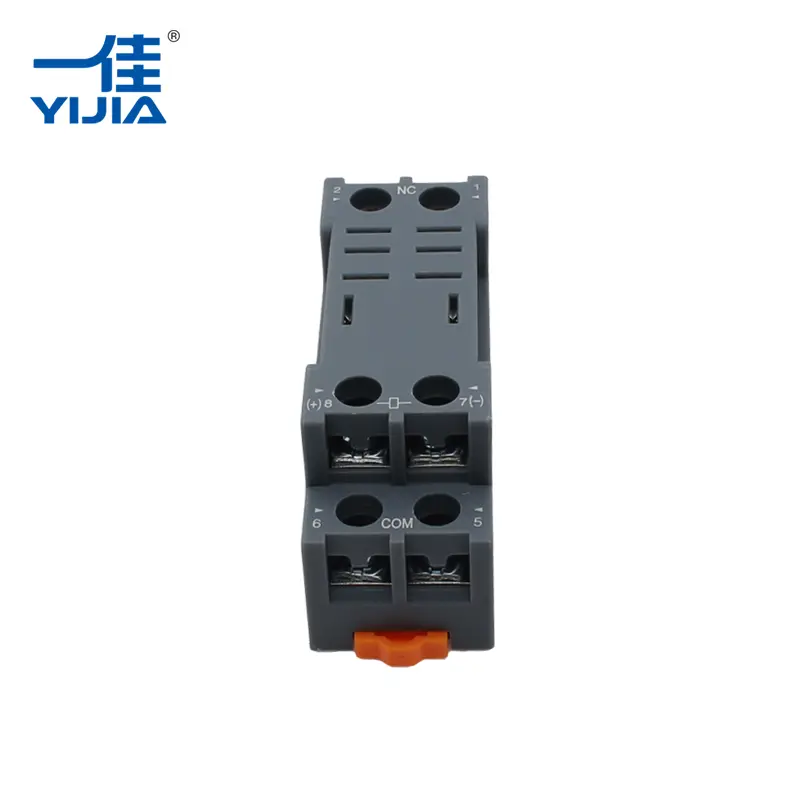

As a China-based Manufacturer and Supplier, Yijia Industrial Electrical Co., Ltd. offers Relay Socket solutions that support stable electrical connections and easy relay integration. This Relay Socket is commonly used together with intermediate relays in automation systems, enabling fast installation on DIN rails and organized wiring layouts. With multiple pin configurations available, it can match different relay types used across industrial equipment.
Product Features

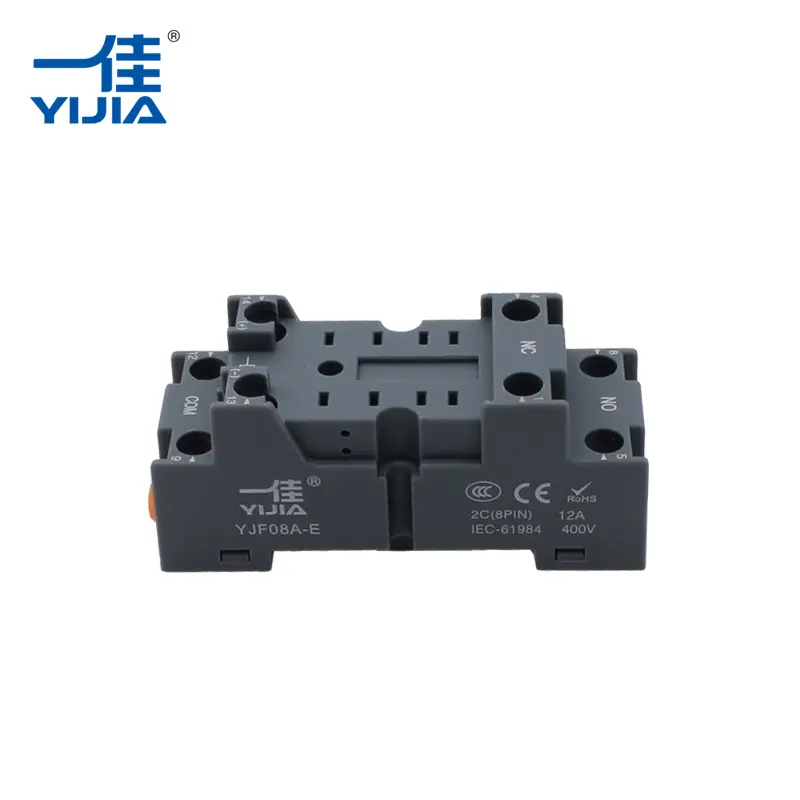

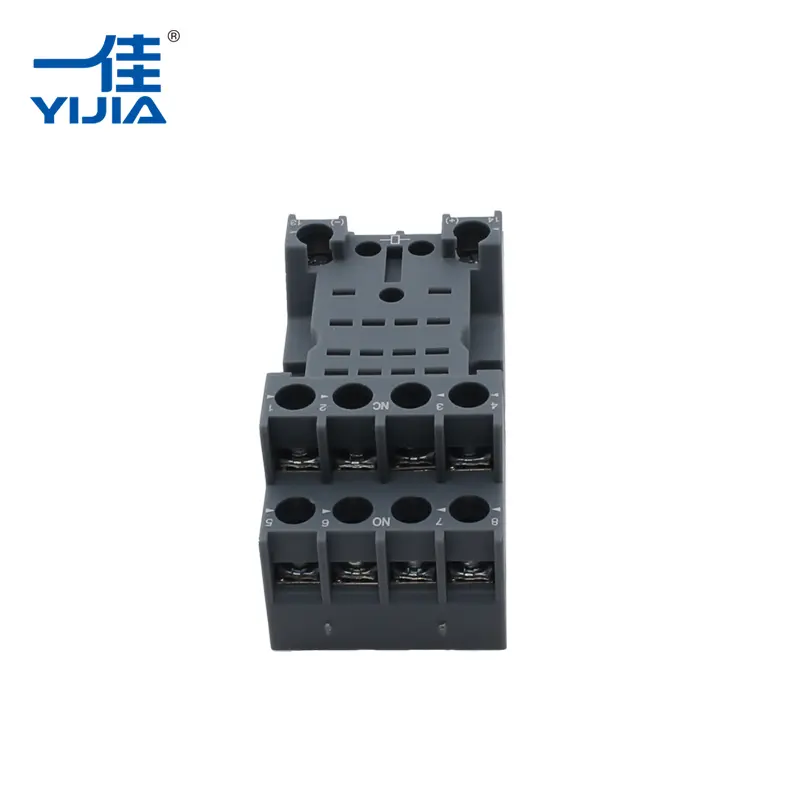

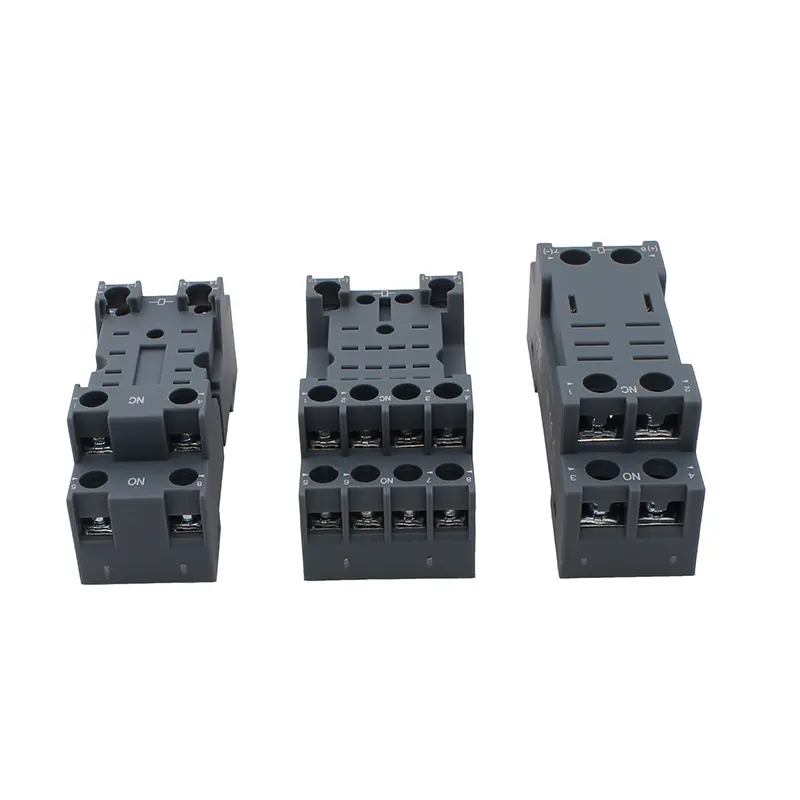

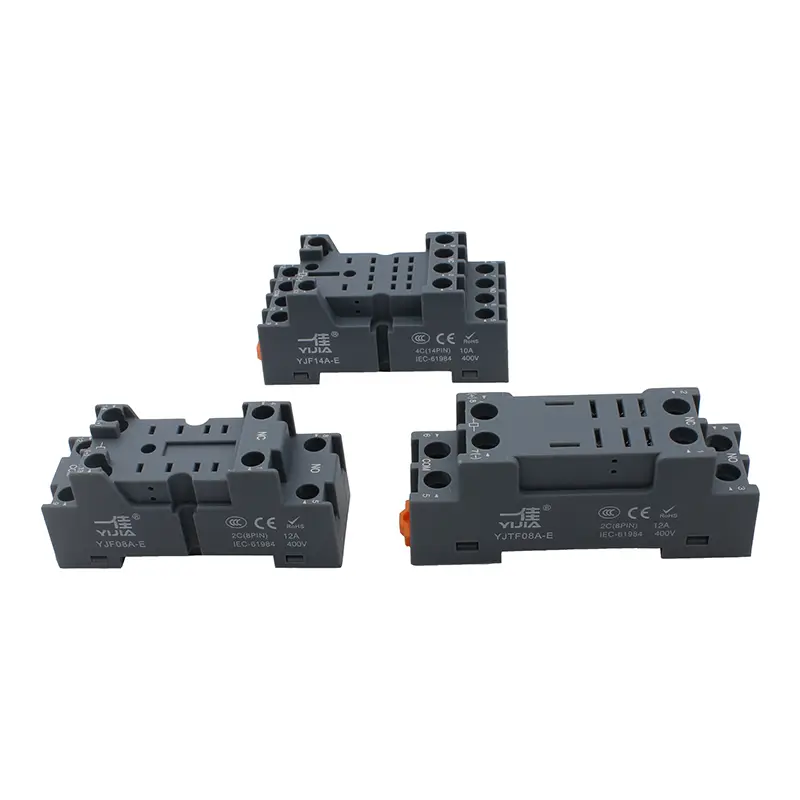

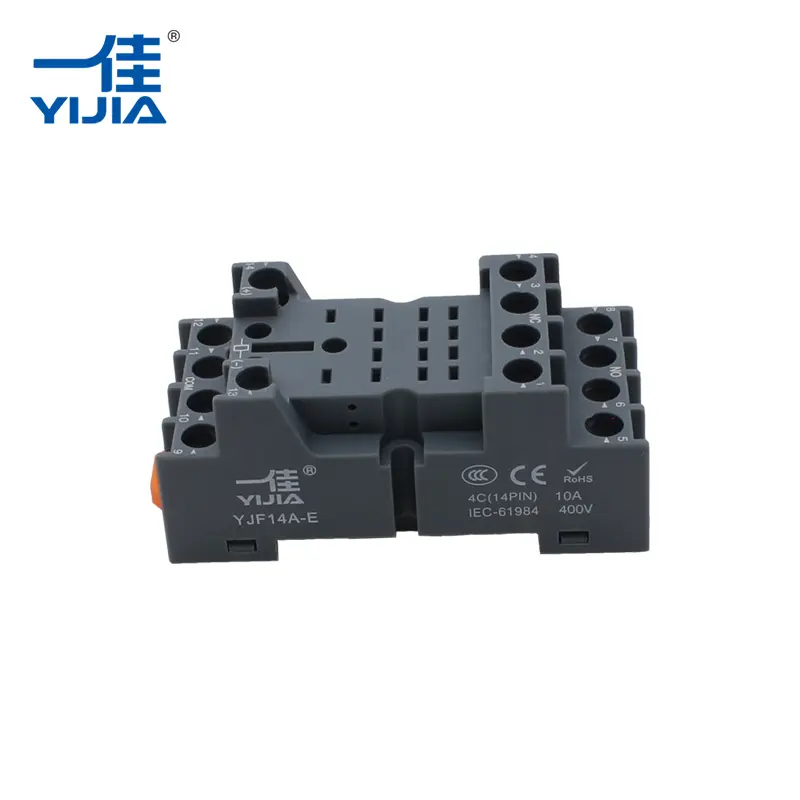

Multiple pin configurations available to match relay structures, including 8-pin, 11-pin, and 14-pin types.
Brass metal contacts improve conductivity and ensure stable electrical transmission.
Engineering nylon housing offers heat resistance and mechanical durability.

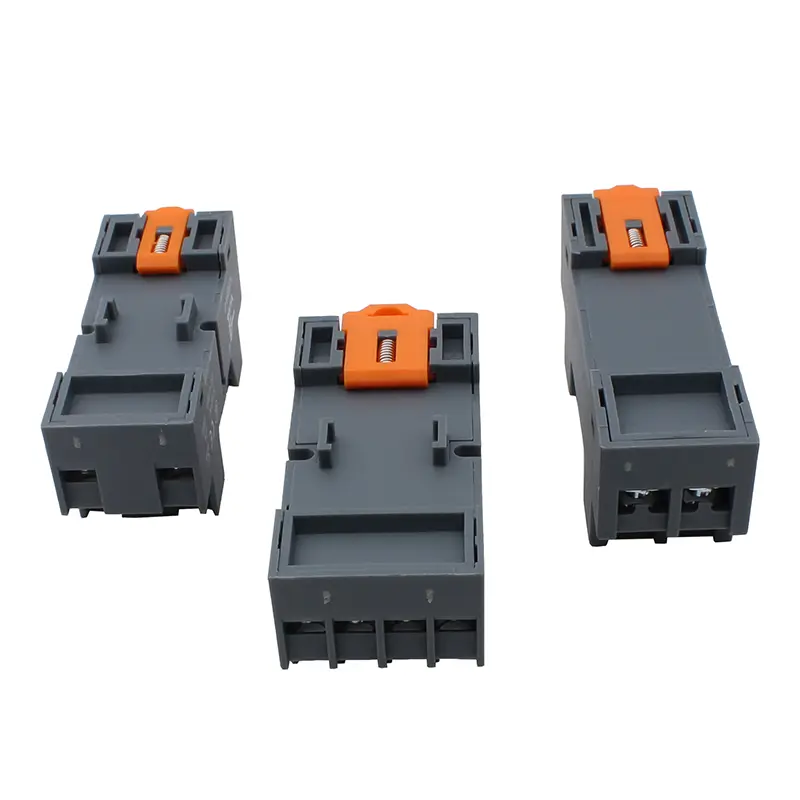

DIN rail mounting design simplifies installation inside control cabinets.
Compact structure helps save panel space and improves wiring organization.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Relay Socket |
| Pin Type | 8 Pin / 11 Pin / 14 Pin |
| Contact Material | Brass |
| Rated Current | Up to 10A |
| Insulation Resistance | ≥1000MΩ |
| Housing Material | Nylon Plastic |
| Mounting Type | DIN Rail Mount |
| Certification | CCC, CE, RoHS |
Applications
The Relay Socket is widely used in industrial automation systems, control panels, distribution cabinets, and machinery control units. It supports organized wiring and quick relay replacement in applications such as:
• Control cabinets and electrical panels
• Industrial machinery and automation equipment
• Power distribution systems
• Instrumentation and control boxes
Functional Value
The Relay Socket helps reduce downtime during relay replacement by allowing plug-in and pull-out operation without rewiring. It also improves safety by ensuring stable insulation performance and secure terminal connections. For maintenance teams, it simplifies troubleshooting and reduces operational errors.
Manufacturing Advantage
Yijia Industrial Electrical Co., Ltd. has accumulated years of experience in industrial electrical product manufacturing. With modern production equipment and ISO9001 management system, the company ensures consistent quality control. The factory supports OEM and ODM customization to meet different relay interface requirements for global buyers.
Common Buyer Concerns
Compatibility: Available in multiple pin configurations to match standard relay types.
Durability: Nylon housing and brass contacts ensure long-term usage.
Safety: High insulation resistance supports stable operation in electrical systems.
Installation: DIN rail mounting simplifies setup and reduces labor time.
Service Process
1. Confirm application requirements and relay type
2. Select suitable Relay Socket model
3. Provide samples for testing if needed
4. Mass production with quality inspection
5. Arrange shipment and logistics support
FAQ
Q: Can I use this Relay Socket with different relay brands?
A: Yes, as long as the pin configuration matches (8, 11, or 14 pin), it can be compatible with standard relays.
Q: Do you support customization?
A: Yes, OEM and ODM services are available based on technical requirements.
Q: Is sample available before bulk order?
A: Free samples can be provided for evaluation.
Features & Benefits
● 8 pins / 11 pins / 14 pins
● Brass pins
● Up to 10A
● Compact design
● Nylon plastic
● CCC,CE
● Support to button switch OEM/ODM
● Offer quality and low price product
How to select the appropriate type of metal push button
Please answer the following question, and send it to us, we will select the appropriate type for you.
Question&Example
① the dimensions of push button to install: 16mm.
② the load current you need to control: 5A.
③ the type of head part: plat head without light.
④ choose the contact structure: 1NO1NC/2NO2NC
⑤ Operation mode: Momentary or Latching.
⑥ LED volt and color(if need led): DC 24V GREEN.
⑦ choose the materials of shell: Stainless steel or Brass clad chromium.
⑧ special request: waterproof, Custom symbol, need socket...
