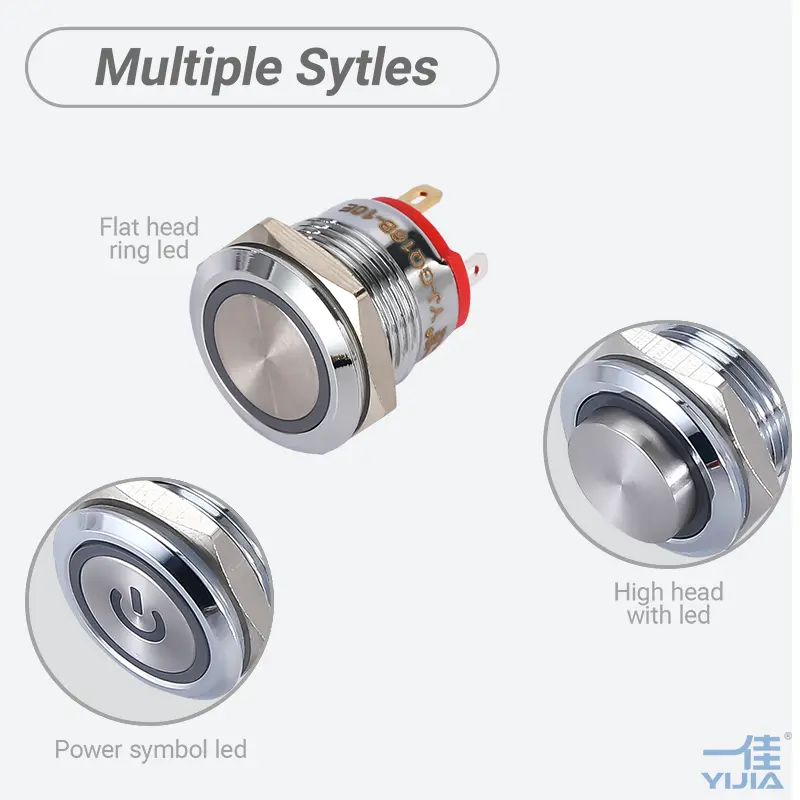

12mm 7A push button switch

The 12mm 7A Push Button Switch is a compact industrial control component designed for applications with limited space. Manufactured by a trusted China supplier, this push button switch offers reliable control for power and signal circuits, supporting loads up to 7A. With small footprint, easy installation, and optional LED indicator, it is ideal for control panels, instrument boxes, and machinery operation interfaces.

Send Inquiry

Product Description Technical Specifications

The 12mm 7A push button switch is manually operated and crafted for space-sensitive installations. It comes with either pin terminals or screw terminals depending on your preference. The body can be made from stainless steel or chrome-plated brass, providing durability and corrosion resistance. Yijia ensures stable supply and OEM support for customized designs.

Structural Features and Advantages

Compact Design: 12mm small footprint fits tight spaces in control cabinets or consoles.
Rated Current: Supports up to 7A, suitable for low to medium load circuits.
Durable Material: Stainless steel or chrome-plated brass shell with silver alloy contacts.
Installation: Snap-in mounting or threaded mounting for easy assembly.
LED Indicator: Optional high-intensity LED for visual feedback.
Protection: IP65 rated for dust and water resistance.
Long Life: Mechanical life ≥500,000 cycles, electrical life ≥50,000 cycles.

Parameter Item Specification

Product Model 12mm 7A Push Button Switch

Brand Yijia

Mounting Diameter 12mm

Rated Current 7A

Rated Voltage AC 220V / DC 24V (Customizable)

Contact Configuration 1NO / 1NC or customizable

Contact Material Silver Alloy

Housing Material Stainless Steel / Chrome-plated Brass

Mechanical Life ≥500,000 operations

Electrical Life ≥50,000 operations

Protection Level IP65

Operating Temperature -25℃ ~ +85℃

Installation Type Snap-in / Threaded

Certification ISO9001, CCC, CE, RoHS

Applications

Industrial control panels and consoles
Distribution and instrument boxes
Mechanical operation control systems
Signal triggering and alarm circuits
Consumer electrical devices

Production Advantages

Professional China manufacturer with advanced production lines
Modern management ensuring consistent quality
OEM/ODM customization support
Large stock for stable supply
5 years warranty on all push button switches

FAQ – Buyer Concerns

Q: Can I get LED version of this switch?
A: Yes, the 12mm 7A push button switch can be equipped with various LED colors and voltages.
Q: Is this switch suitable for outdoor use?
A: It has IP65 rating, suitable for most industrial and outdoor environments.
Q: Can I order in bulk with custom symbols?
A: Yes, Yijia supports bulk and custom orders with engraved or printed symbols.
Q: What terminals are available?
A: Pin type or screw type terminals are available based on your installation needs.
