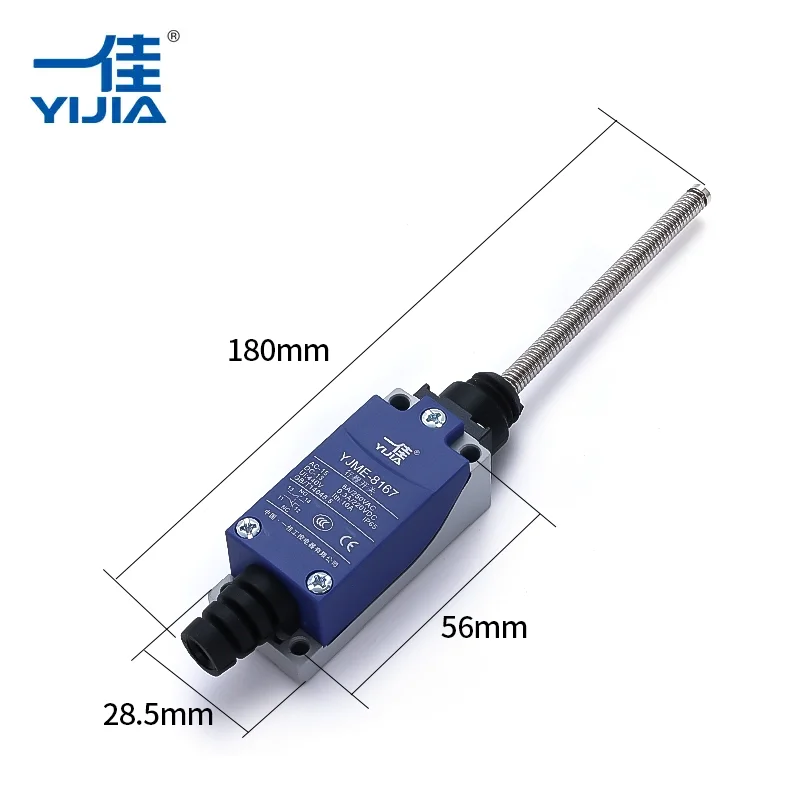

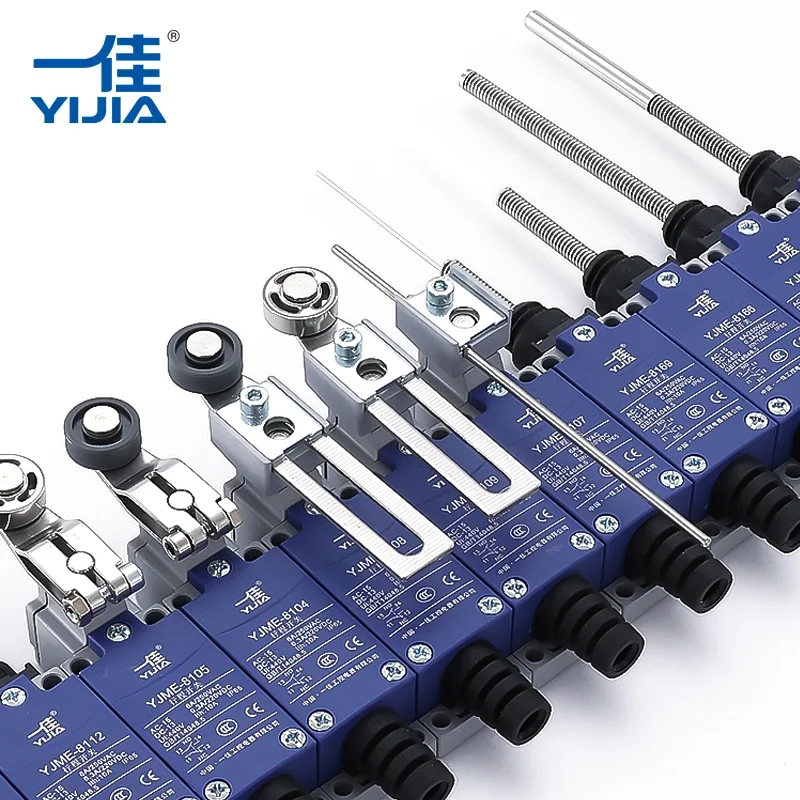

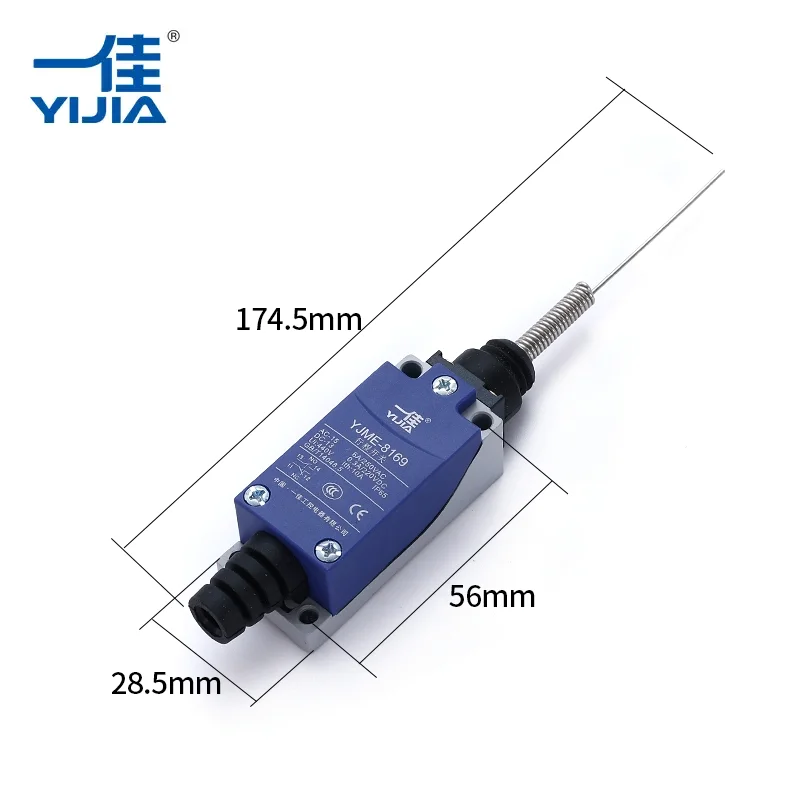

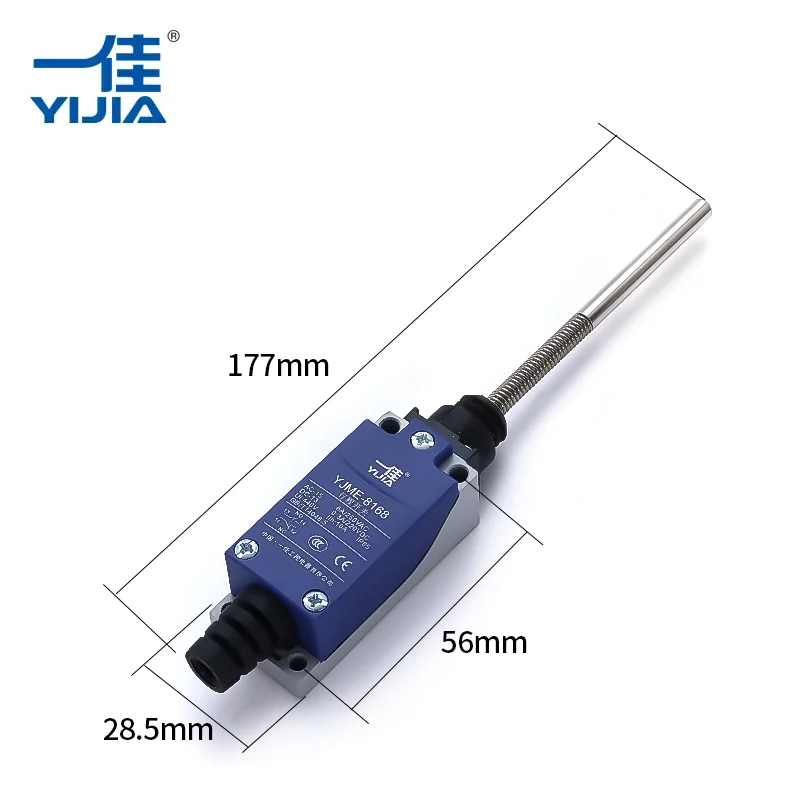

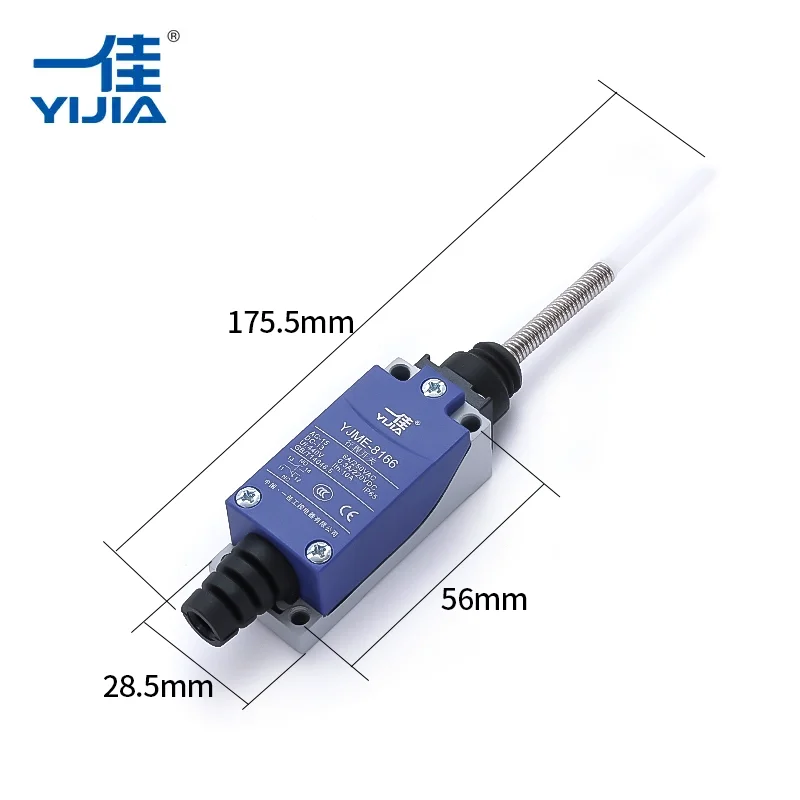

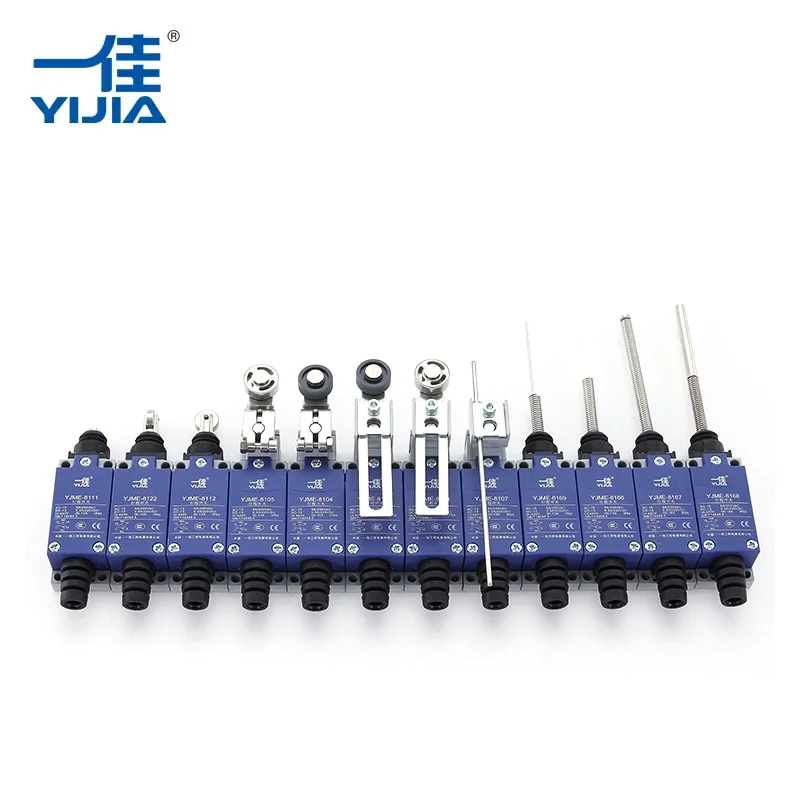

Universal Limit Switch

A universal limit switch is a highly adaptable mechanical or electrical device used to sense the presence, absence, or precise position of an object or part within a system. To ensure the quality of products, we use high-quality engineering plastic,zinc alloy, brass and sliver alloy. And we have own advance molding workshop, inject workshop, stamping workshop and automatic workshop, to control all the quality of each process. It is widely utilized to oversee and manage the motion of mechanical systems, including conveyors, elevators, and robotic arms. By activating specific responses when predetermined limits are met, limit switches are essential for initiating, halting, or confining movement within a set range, thereby guaranteeing both safety and operational efficiency. Universal limit switch with CE certification, hot sale in the world.

Features & Benefits

● Engineering plastics and zinc alloy body

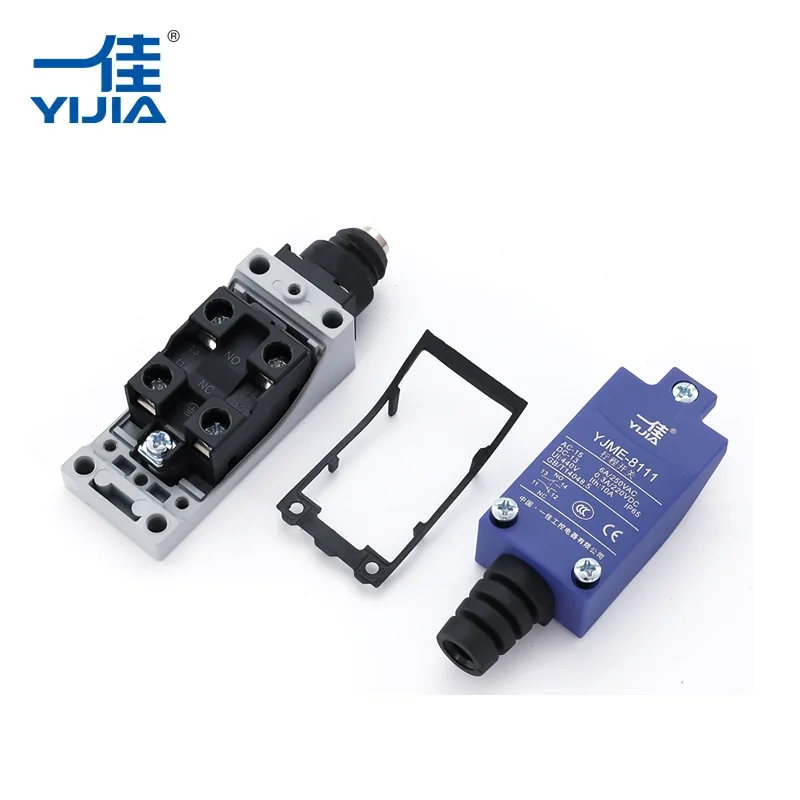

● Dust-proof insulated terminal

● 10A high current capacity

● 1NO1NC contact structure

● High-quality silver alloy contact

● Lower contact resistance≤50mΩ

● 10,000,000 cycles long mechanical life

● 500,000 cycles long electrical life

● IP65 protection level

● CCC,CE

● RoHS

● Best price and high performance

● Limit switch in stock

How to select the appropriate type of metal push button

Please answer the following question, and send it to us, we will select the appropriate type for you.

Question&Example

① the dimensions of push button to install: 16mm.

② the load current you need to control: 5A.

③ the type of head part: plat head without light.

④ choose the contact structure: 1NO

⑤ Operation mode: Momentary

⑥ LED volt and color(if need led): DC 24V GREEN.

⑦ choose the materials of shell: Stainless steel or Brass clad chromium.

⑧ special request: waterproof, Custom symbol, need socket...
