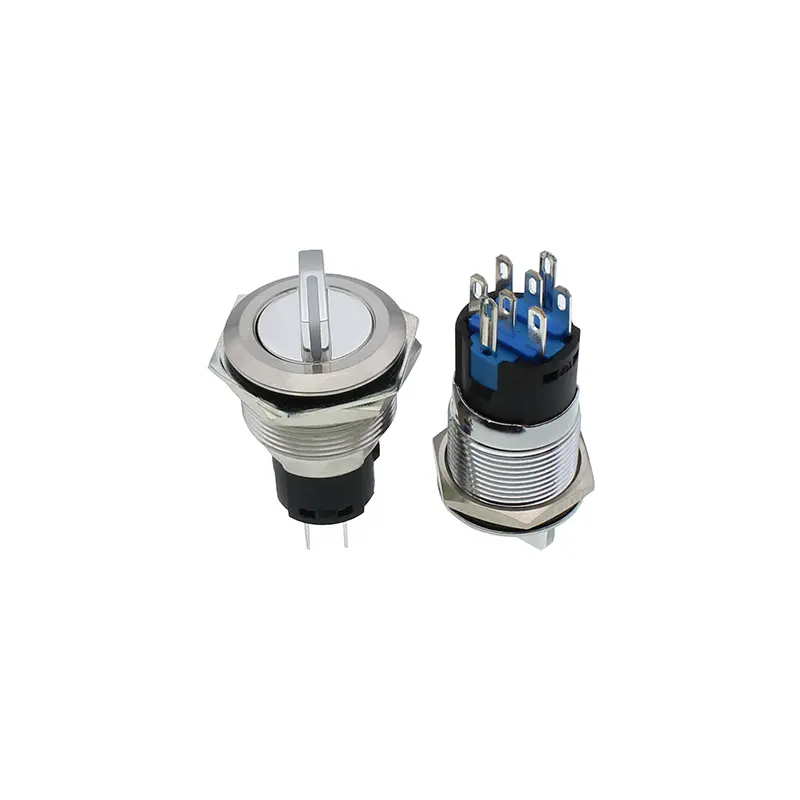

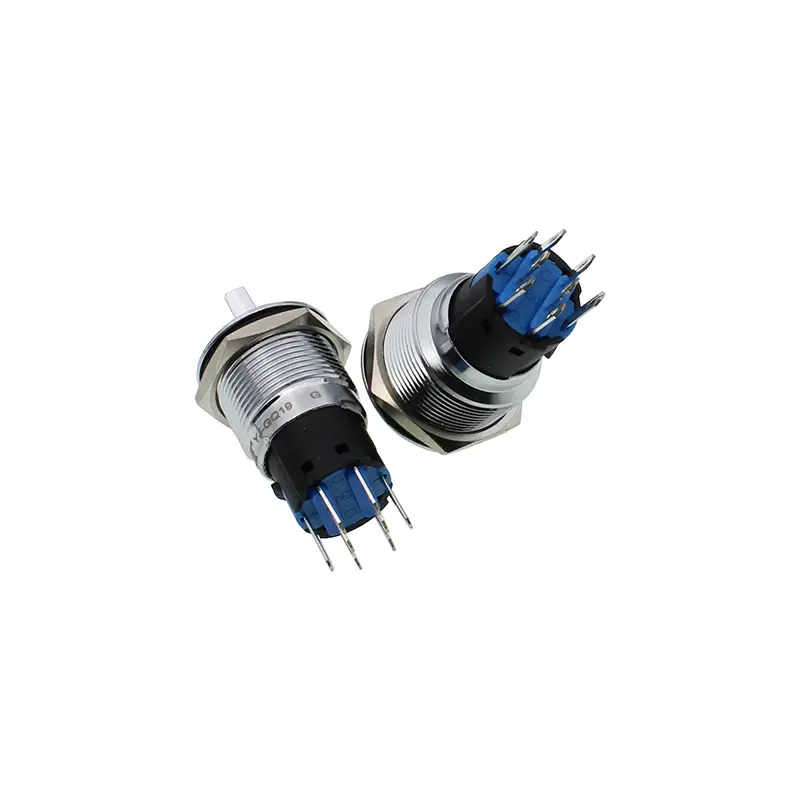

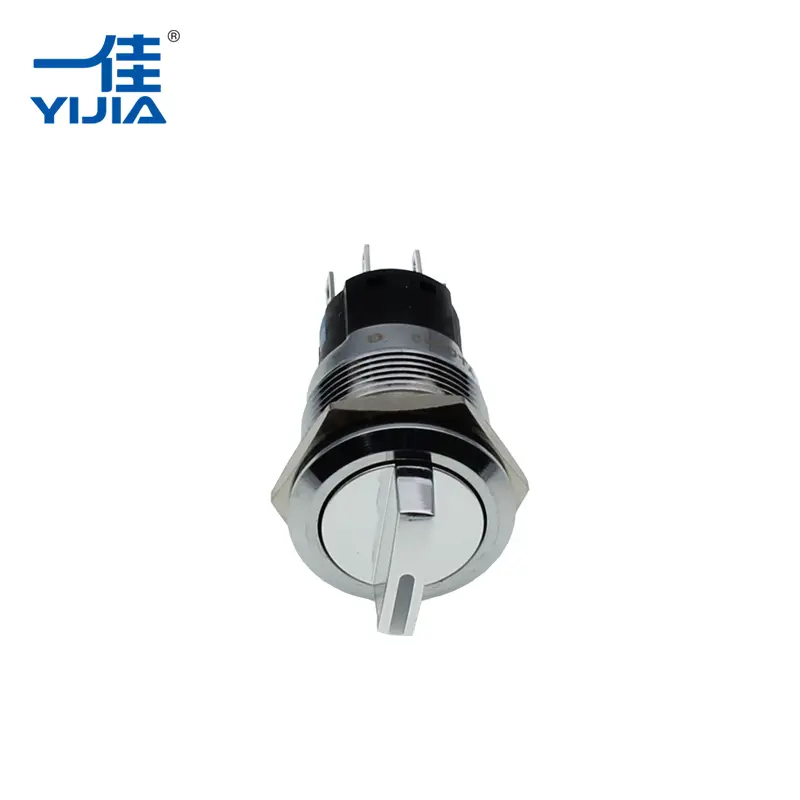

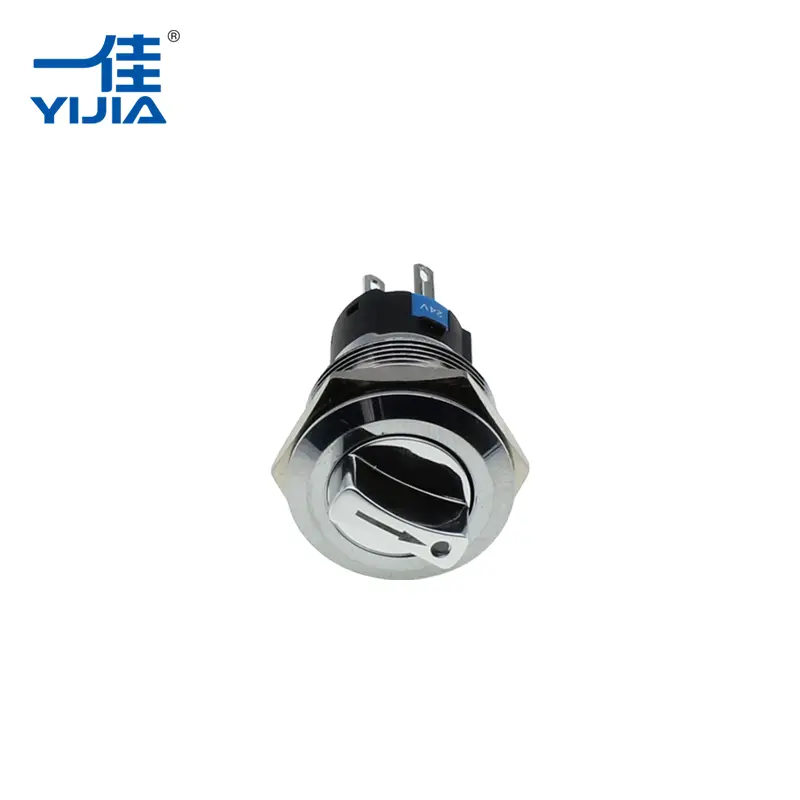

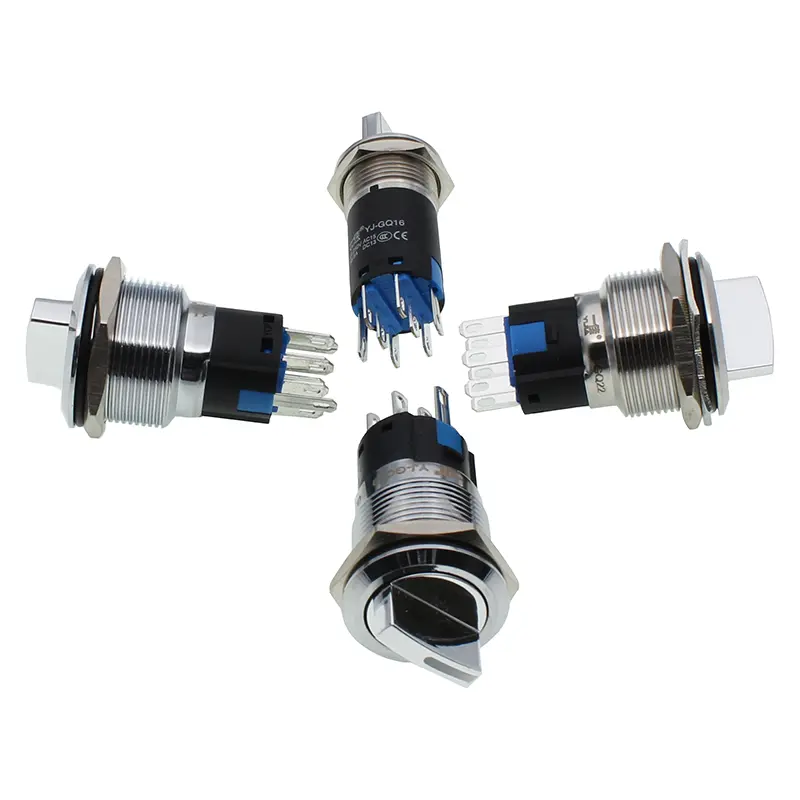

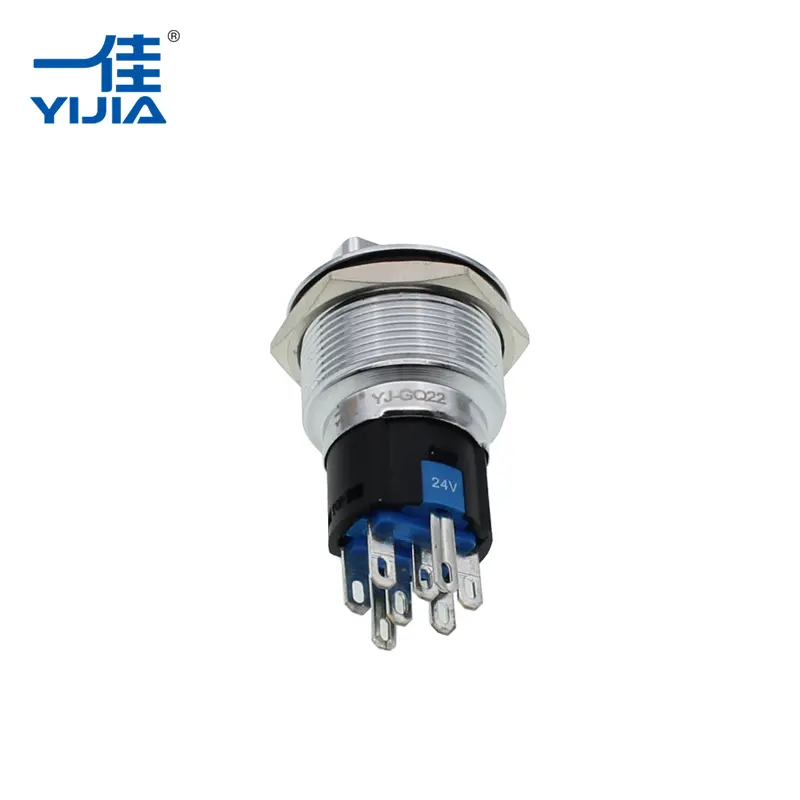

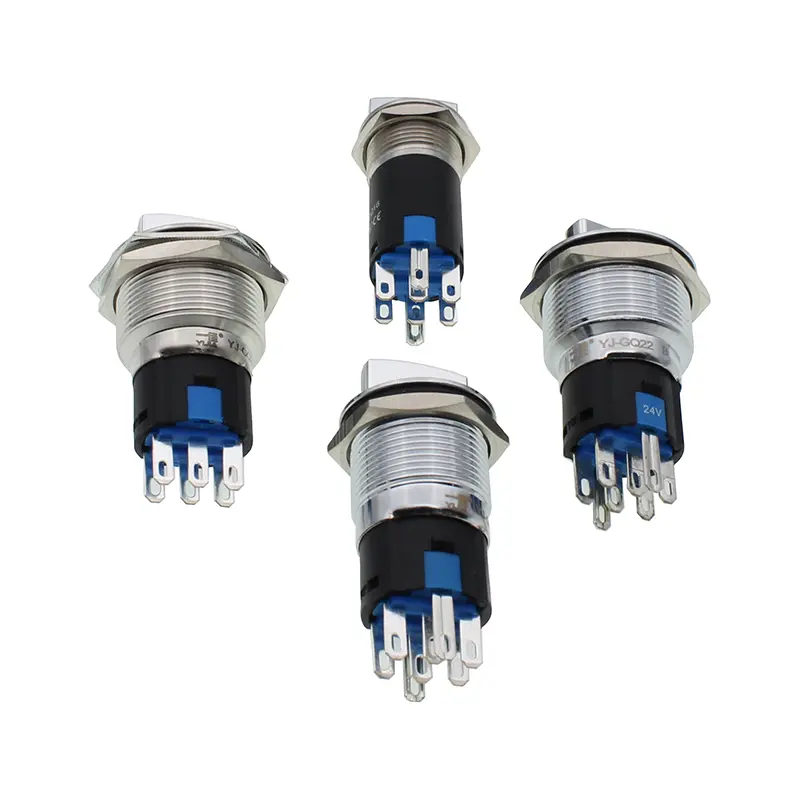

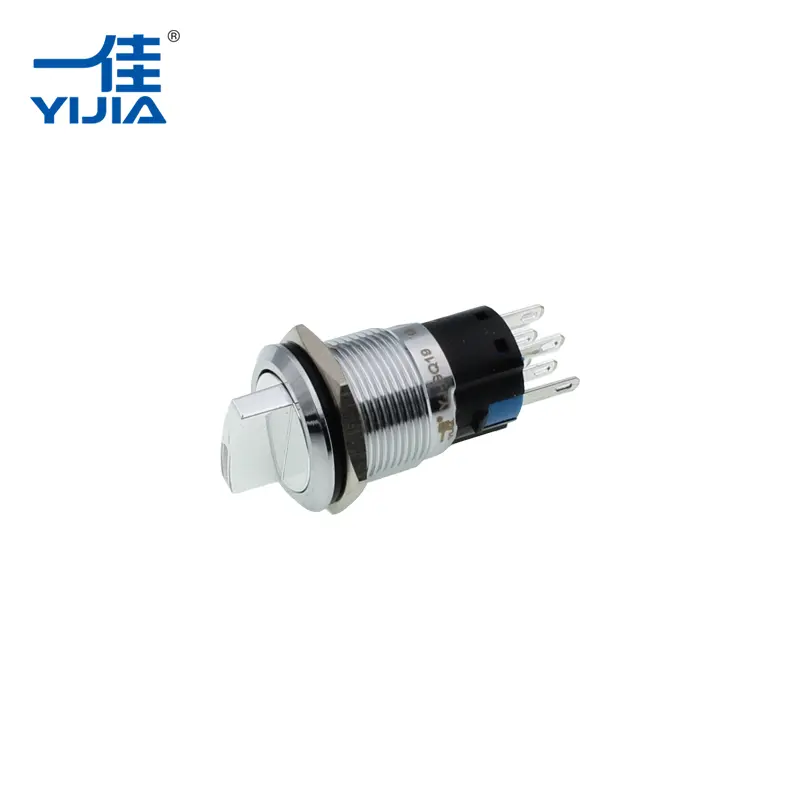

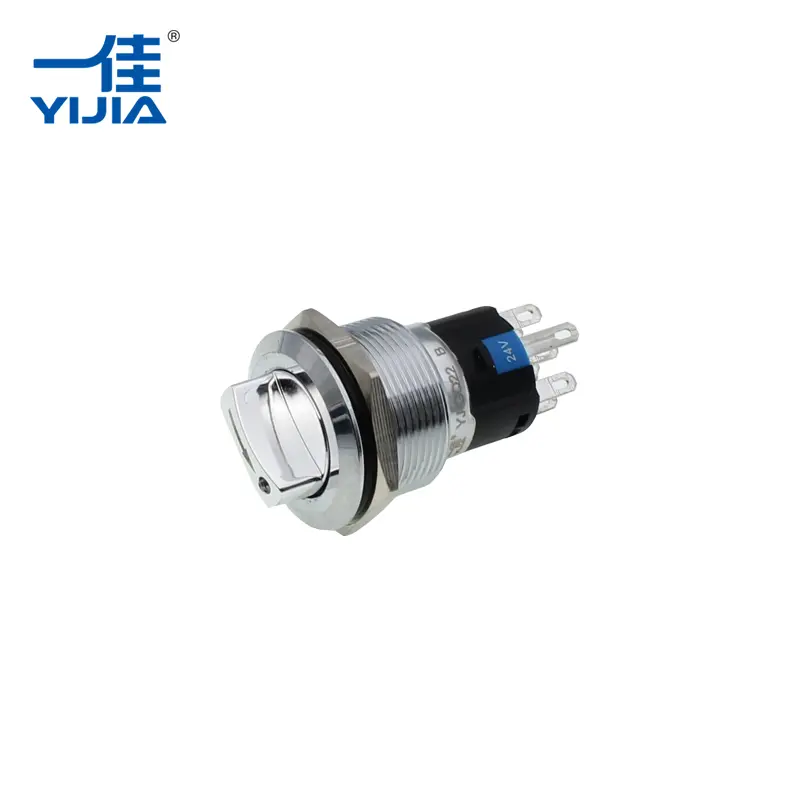

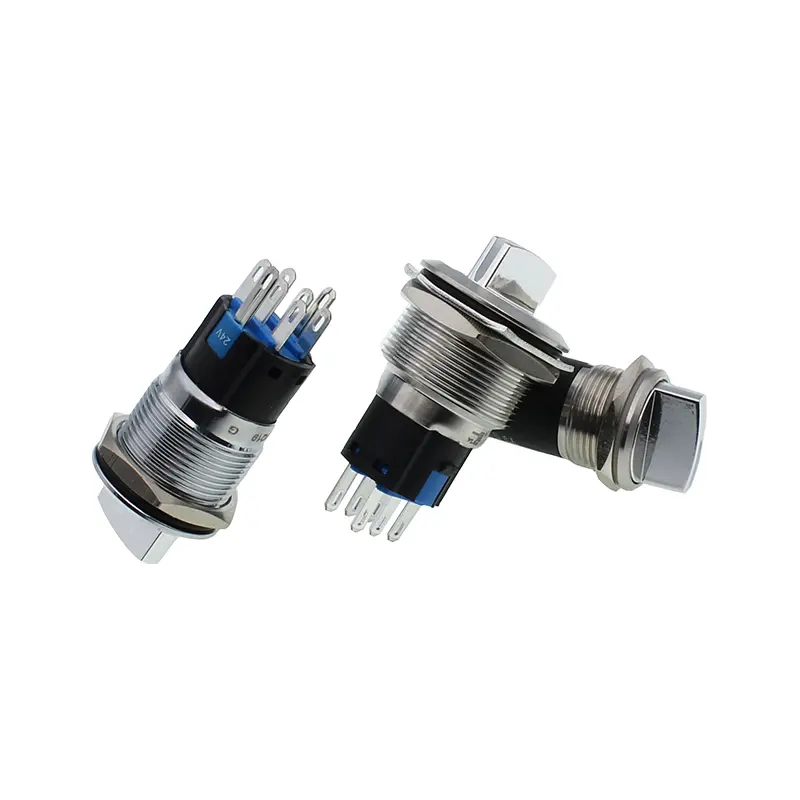

Three Way Selector Switch

The Three Way Selector Switch allows users to control circuits in three distinct states. It features LED indicators to clearly display the current system status. The switch shell is available in stainless steel or chrome-plated brass, providing durability and corrosion resistance. Yijia, with over 20 years of experience in push button switches, ensures professional design and manufacturing standards.

Key Features

• Multi mounting options: 16mm, 19mm, 22mm
• Chrome-plated brass or stainless steel shell
• High current capacity up to 5A
• 2NO2NC or customizable contact structure
• High-quality silver alloy contact for lower resistance (≤50mΩ)
• Mechanical life: 500,000 cycles
• Electrical life: 100,000 cycles
• High-brightness LED life: 50,000 hours
• Protection level: IP40
• Certifications: CCC, TUV, CE, RoHS, REACH (customizable)

Product Parameters

Applications

The Three Way Selector Switch is widely used in:

• Industrial control panels
• Machinery operation control
• Distribution boxes and electrical cabinets
• Instrument and console equipment

Production Advantages

• 20+ years of professional switch manufacturing experience
• Advanced equipment and strict quality control
• International certifications: ISO9001, CCC, CE, RoHS
• Customizable design options to suit industrial requirements

Function & Value

The switch allows safe and clear control of circuits with three distinct positions. The integrated LED indicator improves operational clarity and reduces errors during use. Its durable materials ensure long-term performance in industrial environments.

FAQ

• Q: Can I customize the LED color?
  A: Yes, Yijia offers various LED voltages and colors including DC 24V GREEN.
• Q: What mounting options are available?
  A: 16mm, 19mm, and 22mm hole diameters are available.
• Q: Are there waterproof options?
  A: Yes, special waterproof configurations can be provided upon request.

Ordering Information

To select the appropriate type of Three Way Selector Switch, please provide:

• Mounting hole dimensions
• Load current requirement
• Head type (flat, round, with/without LED)
• Contact structure (1NO1NC / 2NO2NC)
• Operation mode: Momentary or Latching
• LED voltage and color if needed
• Any special requirements: waterproof, custom symbol, socket needed

Service & Support

• Pre-sales consultation for selecting the correct switch type
• Technical guidance for installation and operation
• After-sales support including replacement and maintenance
• Custom manufacturing options for special industrial needs
