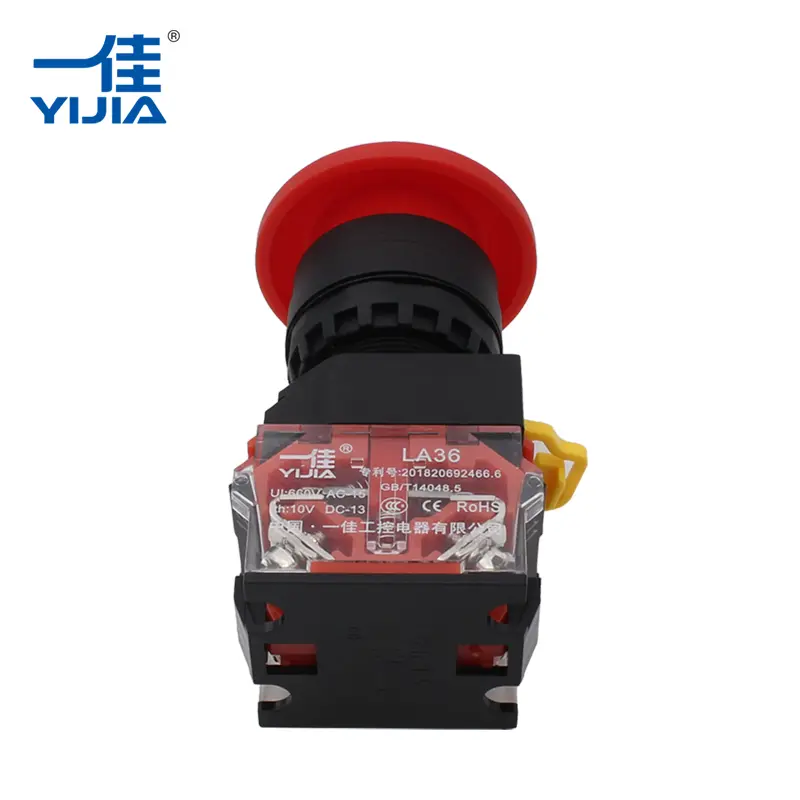

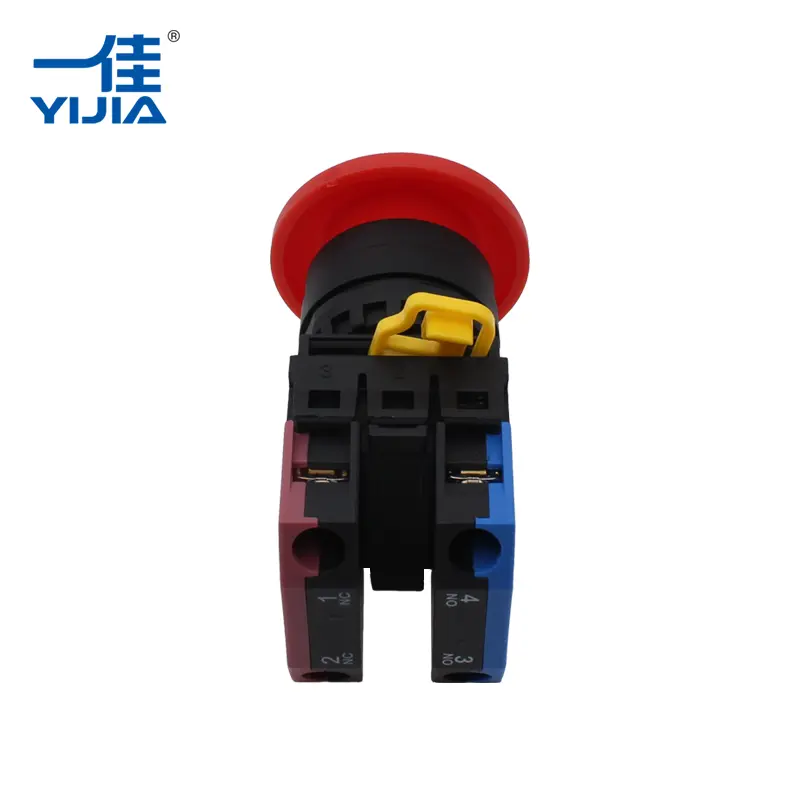

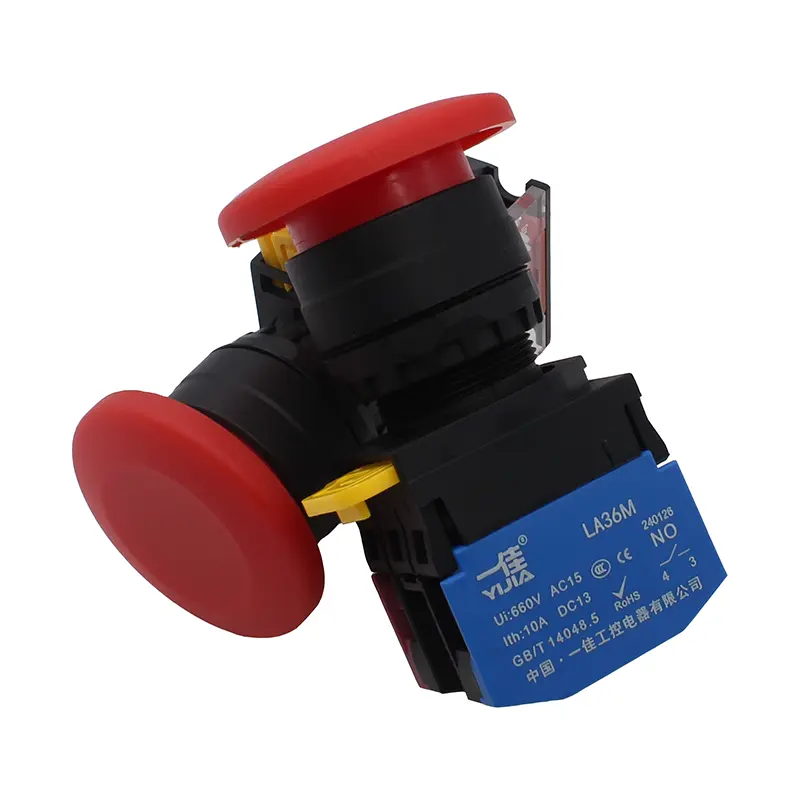

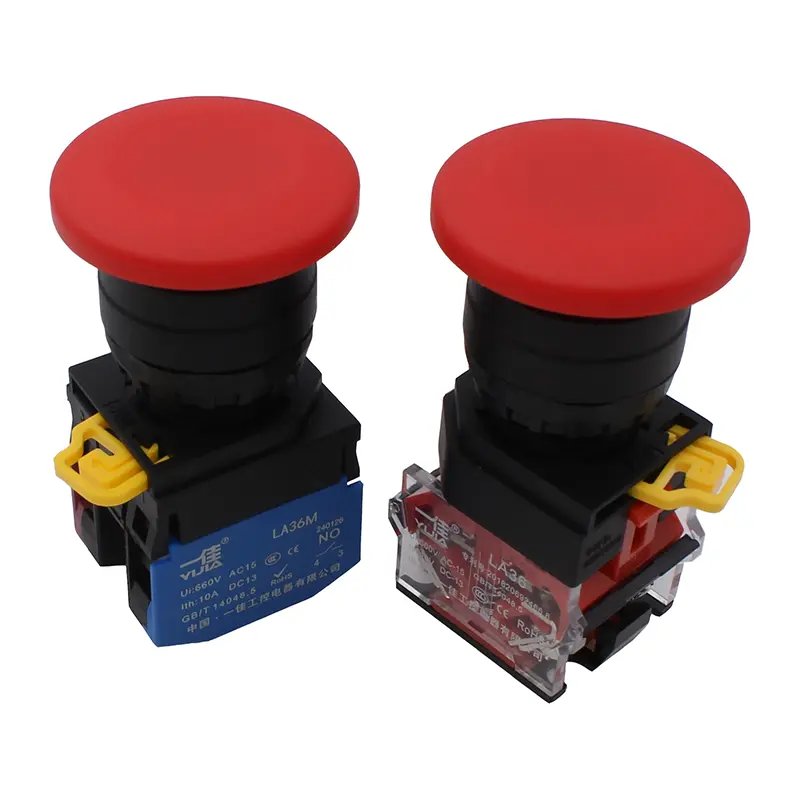

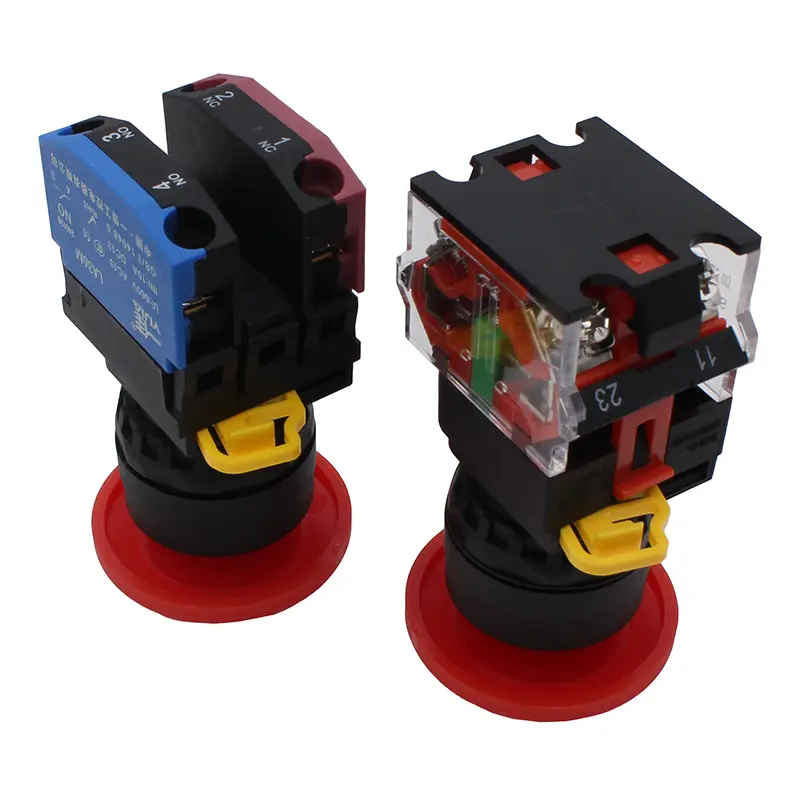

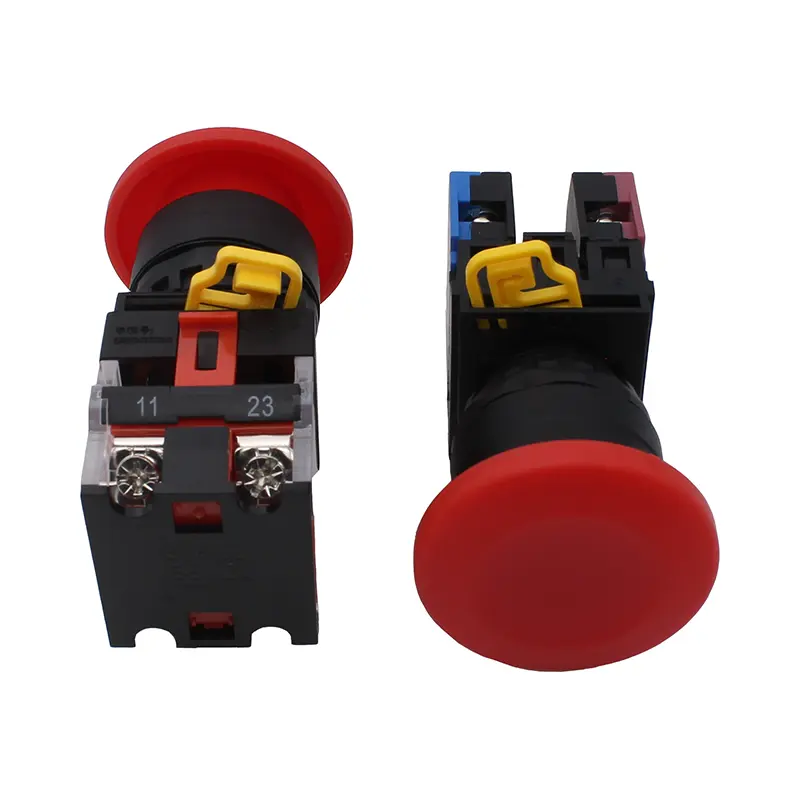

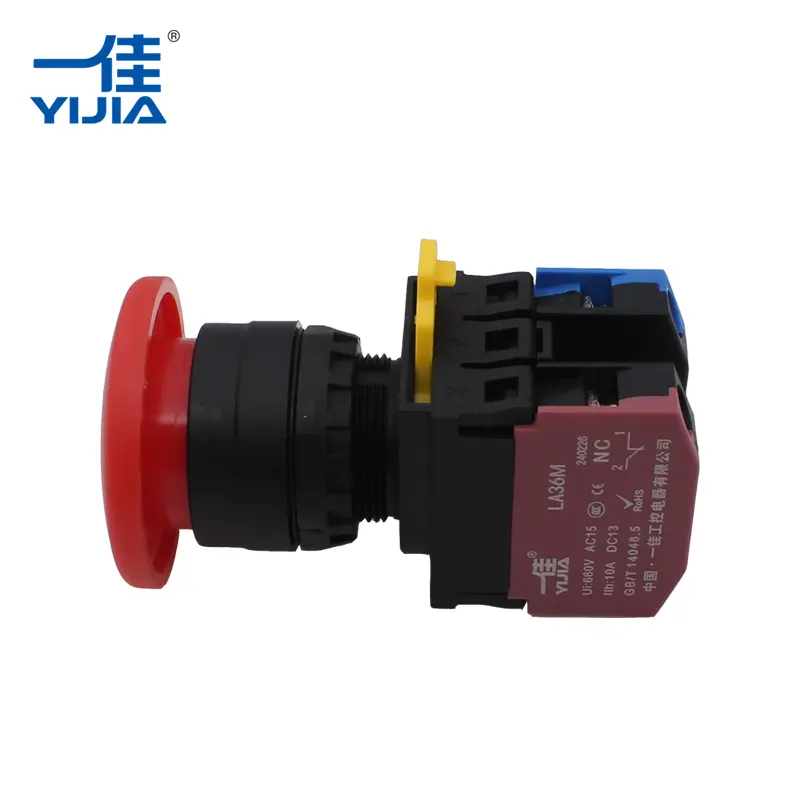

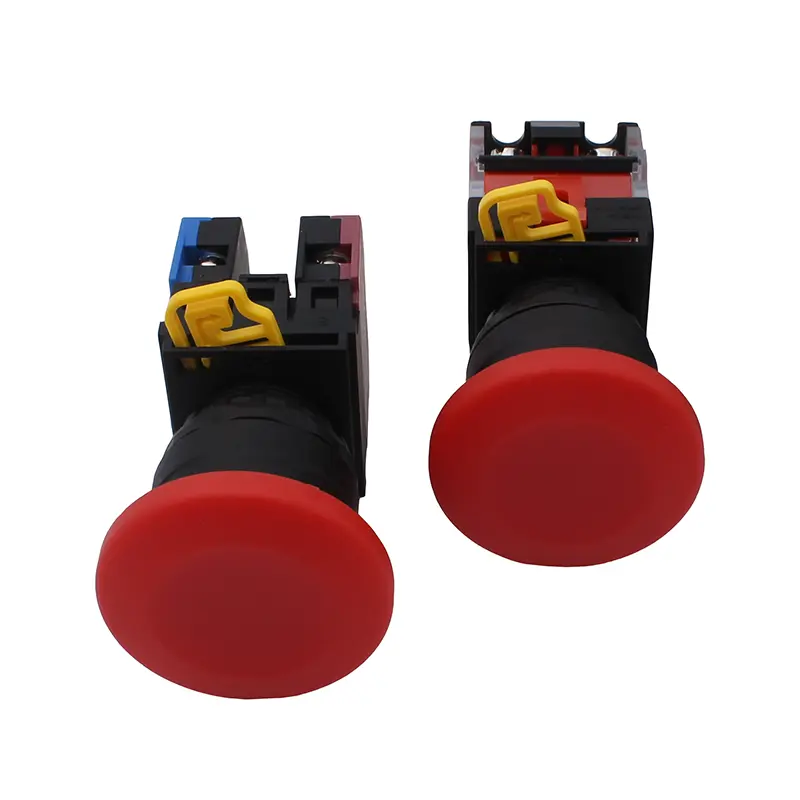

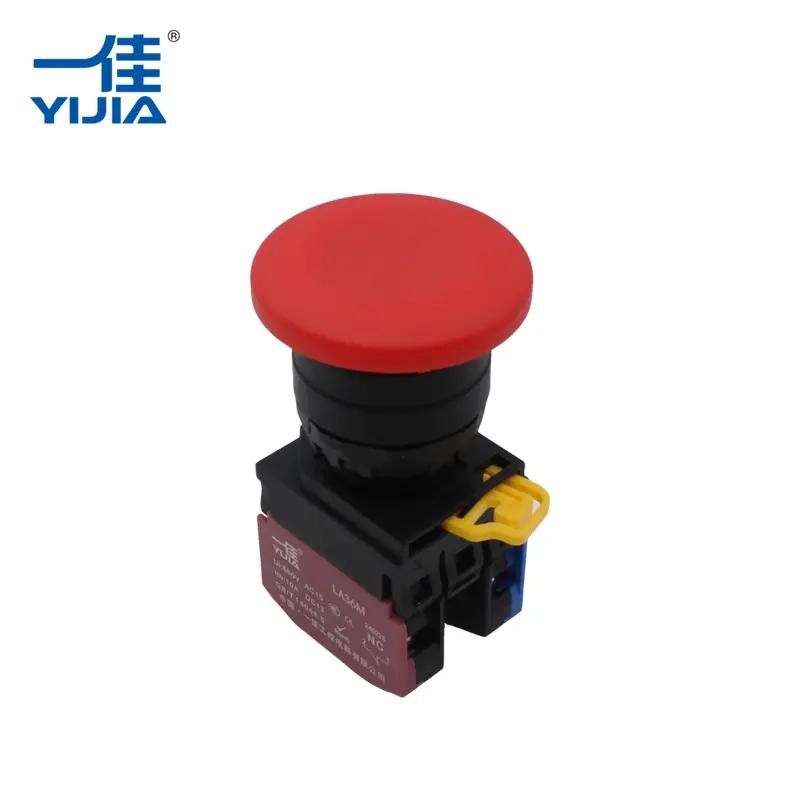

The Mushroom Push Button from Yijia Industrial Electrical Co., Ltd. is designed for industrial control applications with a standard 22mm mounting size. As a China manufacturer and supplier, Yijia provides stable production capability and supports OEM/ODM customization for global buyers.
Mushroom Push Button features a large round domed head for easy operation. It supports up to 10A current capacity and offers flexible contact configurations such as 1NO1NC, 2NO, and 2NO2NC. The wiring uses M3.5 screw terminals with square washers. Standard protection level is IP40, with IP65 available upon request.
Core Features| Parameter | Specification |
|---|---|
| Installation Size | 22mm |
| Head Type | Mushroom (round domed) |
| Material | PA66 Plastic + Silver Alloy Contact |
| Current Rating | 10A |
| Contact Resistance | ≤50mΩ |
| Mechanical Life | 1,000,000 cycles |
| Electrical Life | 100,000 cycles |
| IP Rating | IP40 (IP65 optional) |
| Wiring Method | M3.5 screw with square washer |
The Mushroom Push Button is made of PA66 engineering plastic to ensure durability under repeated operation. The internal contact adopts a silver alloy and spring bridge structure to maintain stable conductivity. The quick-installation design allows fast assembly and disassembly in two steps, reducing maintenance time.
ApplicationsMushroom Push Button is widely used in power systems, automation control equipment, machinery panels, distribution cabinets, and industrial control boxes.
How to Select the Right ModelPlease provide the following details:
Yijia Industrial Electrical Co., Ltd. focuses on industrial control components including relays, AC contactors, and push button switches. With stable production lines and quality management system certification, the company supports bulk orders and customized solutions for different markets.
Service Process
Q: Can the Mushroom Push Button be used outdoors?
A: Yes, IP65 waterproof version can be customized for outdoor use.
Q: What contact types are available?
A: Standard options include 1NO1NC, 2NO, and other customized configurations.
Q: Is OEM service available?
A: Yes, Yijia Industrial Electrical Co., Ltd. supports OEM/ODM production.
Features & Benefits
● 16mm mounting hole size
● engineering plastic
● M3.5 screw with a square washer
● 10A current capacity
● Multi contact structure
● High-quality silver alloy contact
● Lower contact resistance≤50mΩ
● 1000,000 cycles long mechanical life
● 100,000 cycles long electrical life
● CCC,CE
● Support to button switch OEM/ODM
● Offer push button switch price list
How to select the appropriate type of metal push button
Please answer the following question, and send it to us, we will select the appropriate type for you.
Question&Example
① the dimensions of push button to install: 16mm.
② the load current you need to control: 5A.
③ the type of head part: plat head without light.
④ choose the contact structure: 1NO1NC/2NO2NC
⑤ Operation mode: Momentary or Latching.
⑥ LED volt and color(if need led): DC 24V GREEN.
⑦ choose the materials of shell: Stainless steel or Brass clad chromium.
⑧ special request: waterproof, Custom symbol, need socket...
